Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS RESULT
Check self-diagnosis results.

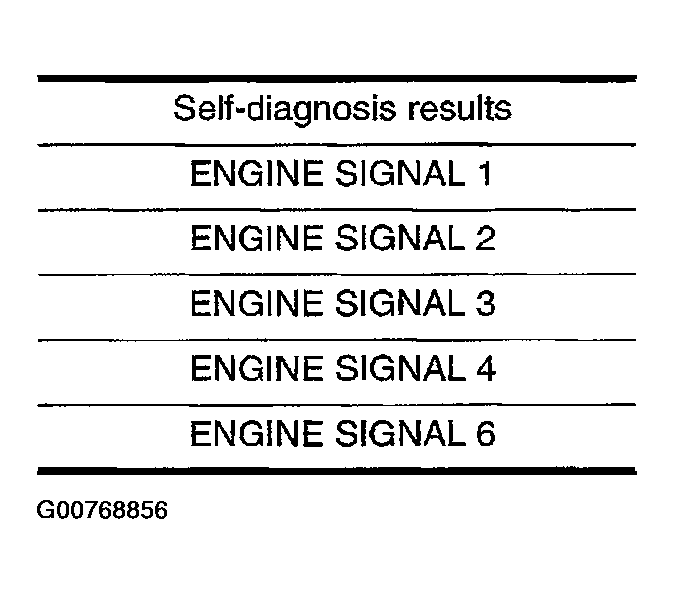

Fig 1: Self-Diagnosis Results Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Is above displayed in self-diagnosis display items?
1. YES: GO TO 2.
2. NO: Inspection END
CHECK ENGINE SYSTEM
1. Conduct an ECM self-diagnosis and repair or replace any malfunction items. Re-conduct the ECM self-diagnosis.
2. Re-conduct ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
1. OK: Inspection END
2. NG: Repair or replace any malfunction items. Re-conduct self-diagnosis.
