Hydraulic Line: Components

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

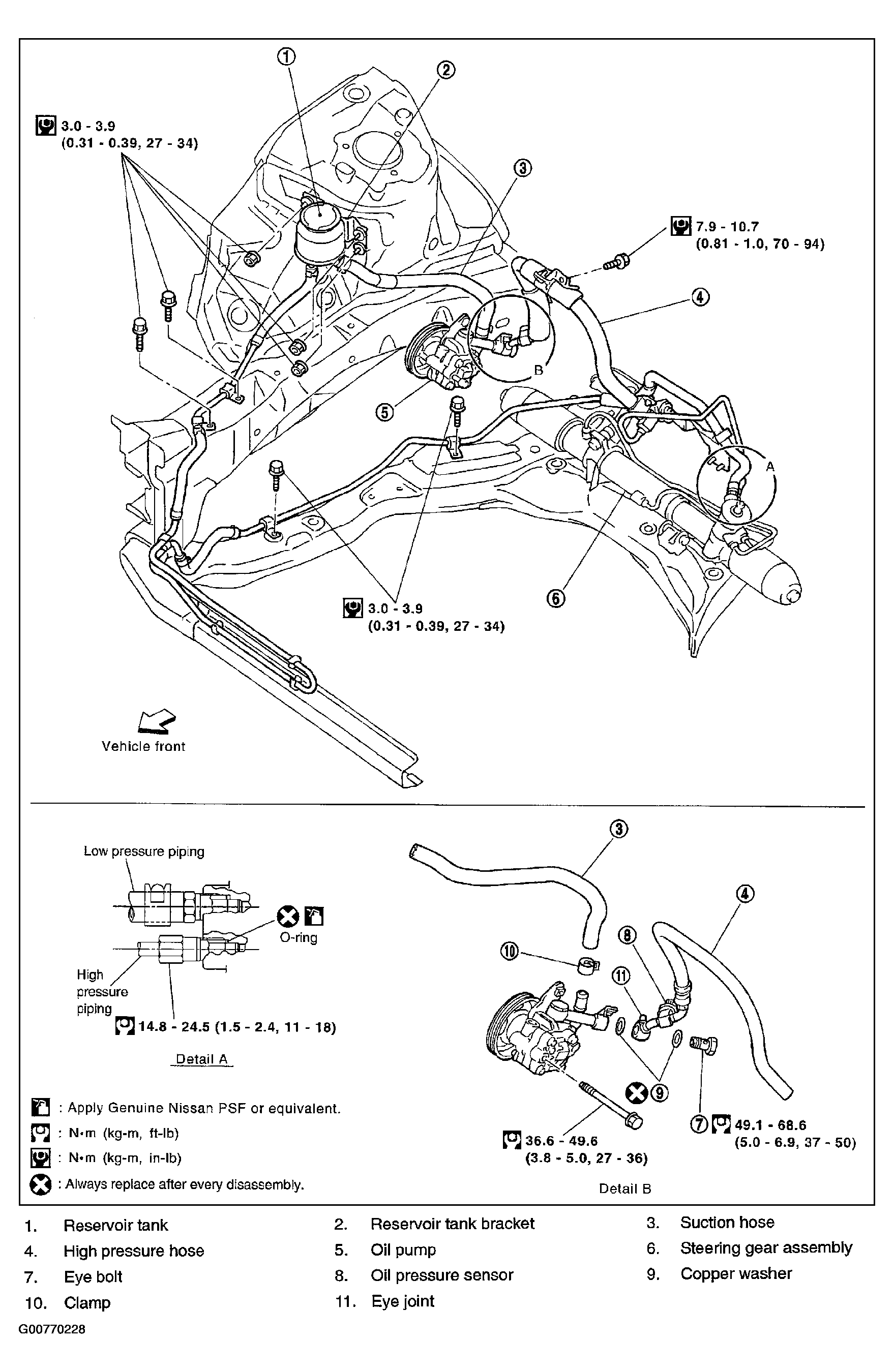

Fig 1: Removing/Installing Hydraulic Line Components
G00770228Courtesy of NISSAN MOTOR CO., U.S.A.
