Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spring from steering column assembly and tilt lever.
  2. Remove fixing bolt of upper joint, then remove upper joint from steering column assembly.

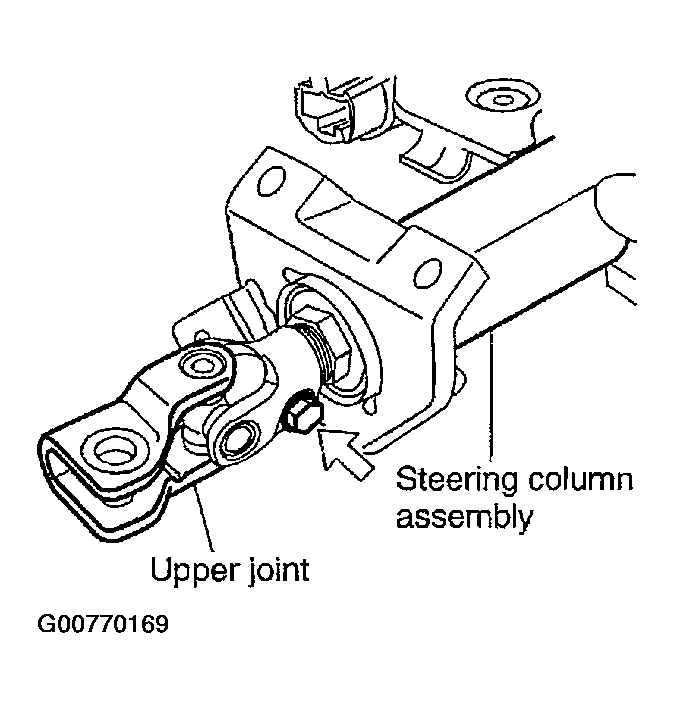

    Fig 1: Removing Fixing Bolt Of Upper Joint
    G00770169Courtesy of NISSAN MOTOR CO., U.S.A.
