Wiring Diagram -NAVI-

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

Fig 1: Navigation System Wiring Diagram - AV-NAVI-01

G03360035

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Navigation System Wiring Diagram - AV-NAVI-02

G03360036

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Navigation System Wiring Diagram - AV-NAVI-03

G03360037

Courtesy of NISSAN MOTOR CO., U.S.A.

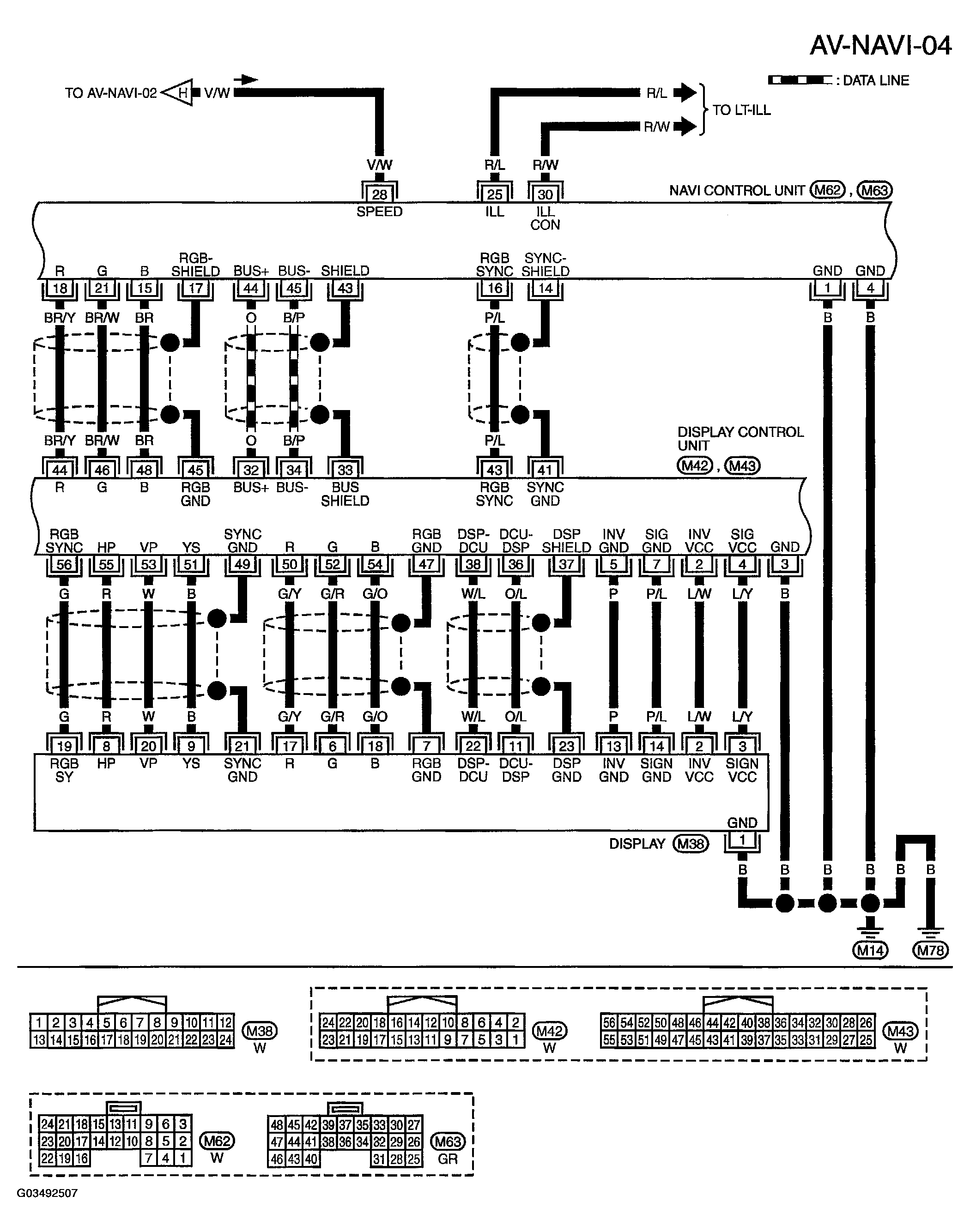

Fig 4: Navigation System Wiring Diagram - AV-NAVI-04

G03492507

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Navigation System Wiring Diagram - AV-NAVI-05

G03360039

Courtesy of NISSAN MOTOR CO., U.S.A.

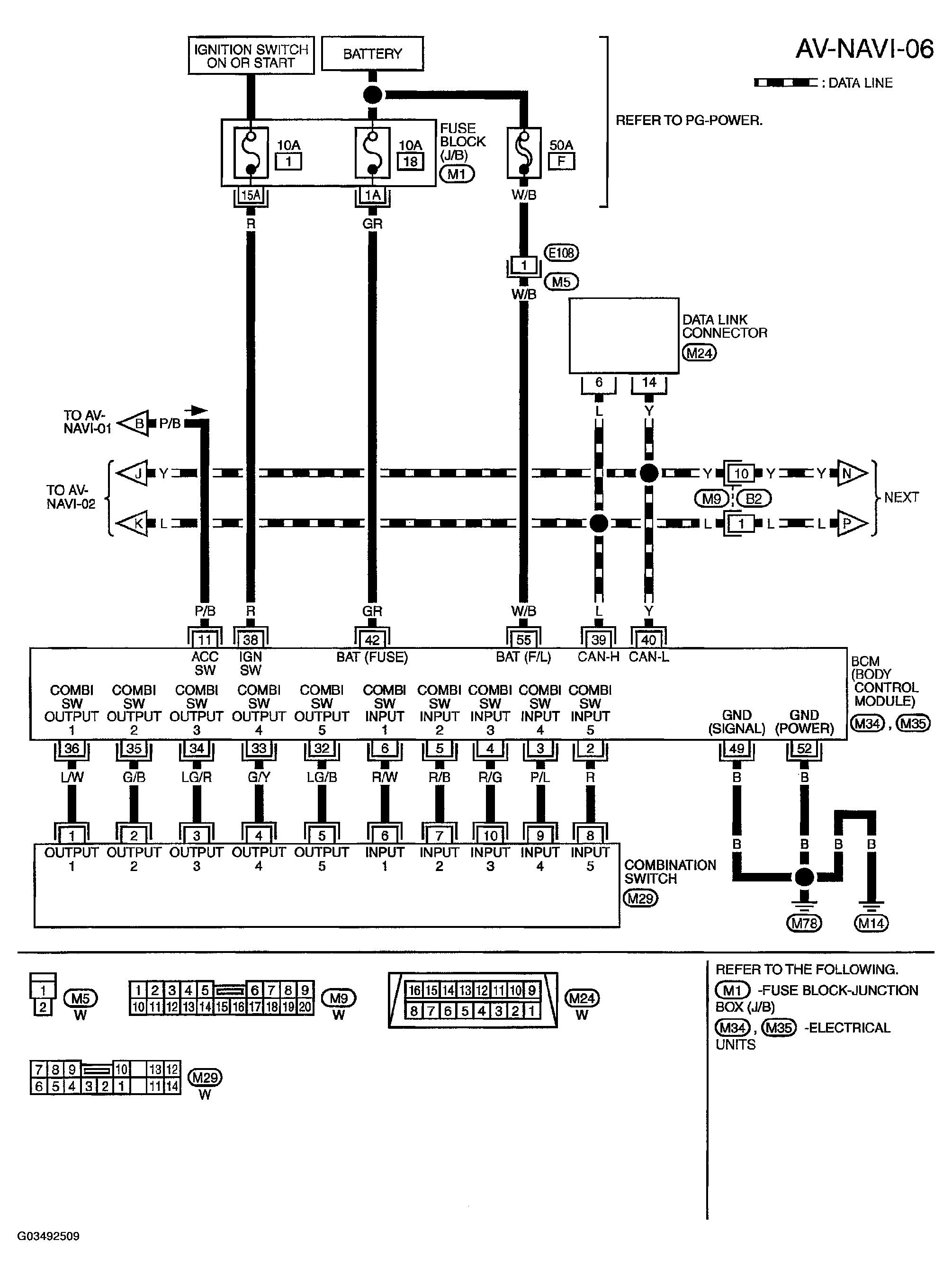

Fig 6: Navigation System Wiring Diagram - AV-NAVI-06

G03492509

Courtesy of NISSAN MOTOR CO., U.S.A.

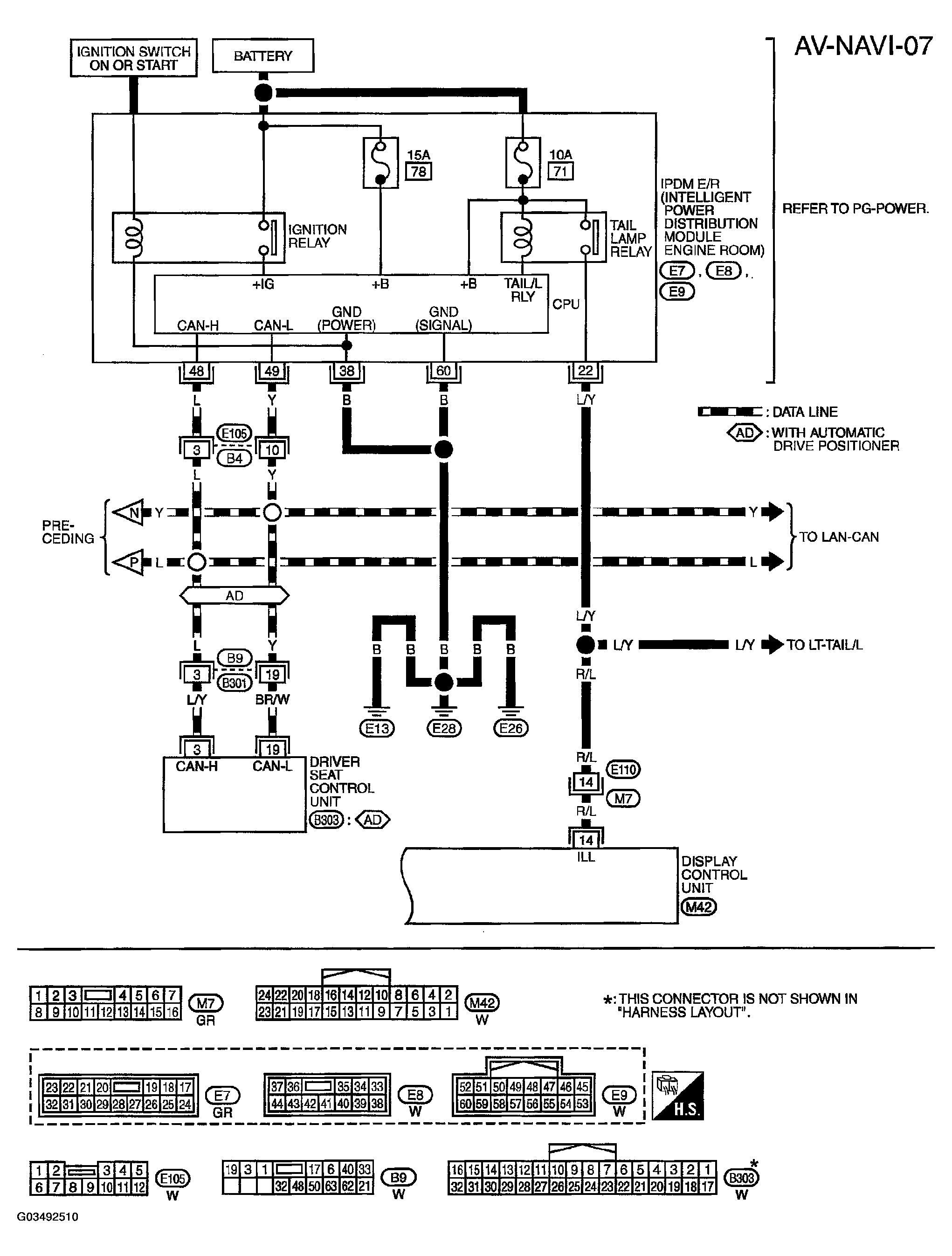

Fig 7: Navigation System Wiring Diagram - AV-NAVI-07

G03492510

Courtesy of NISSAN MOTOR CO., U.S.A.
