Display Item List
WARNING:
This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

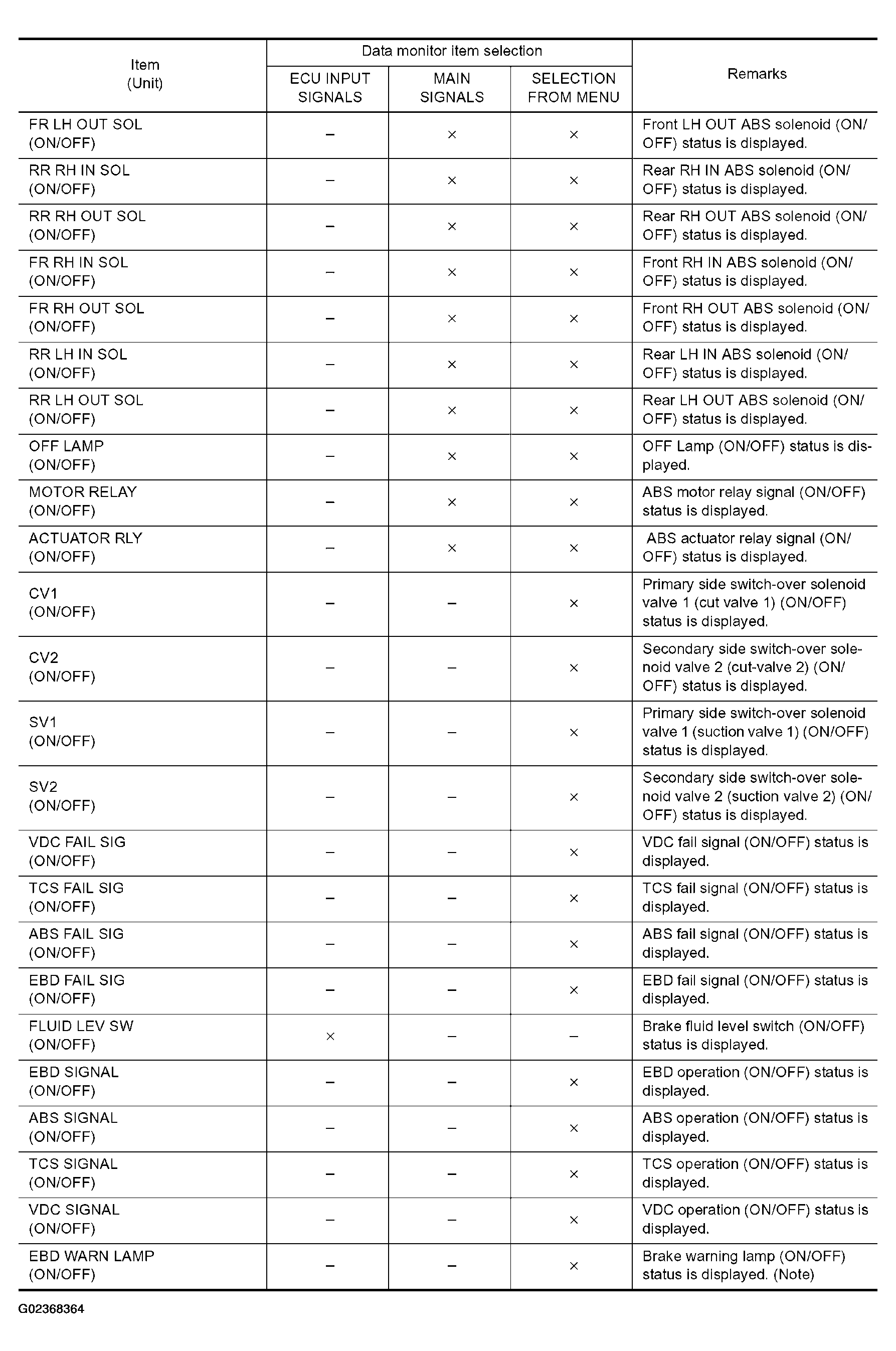

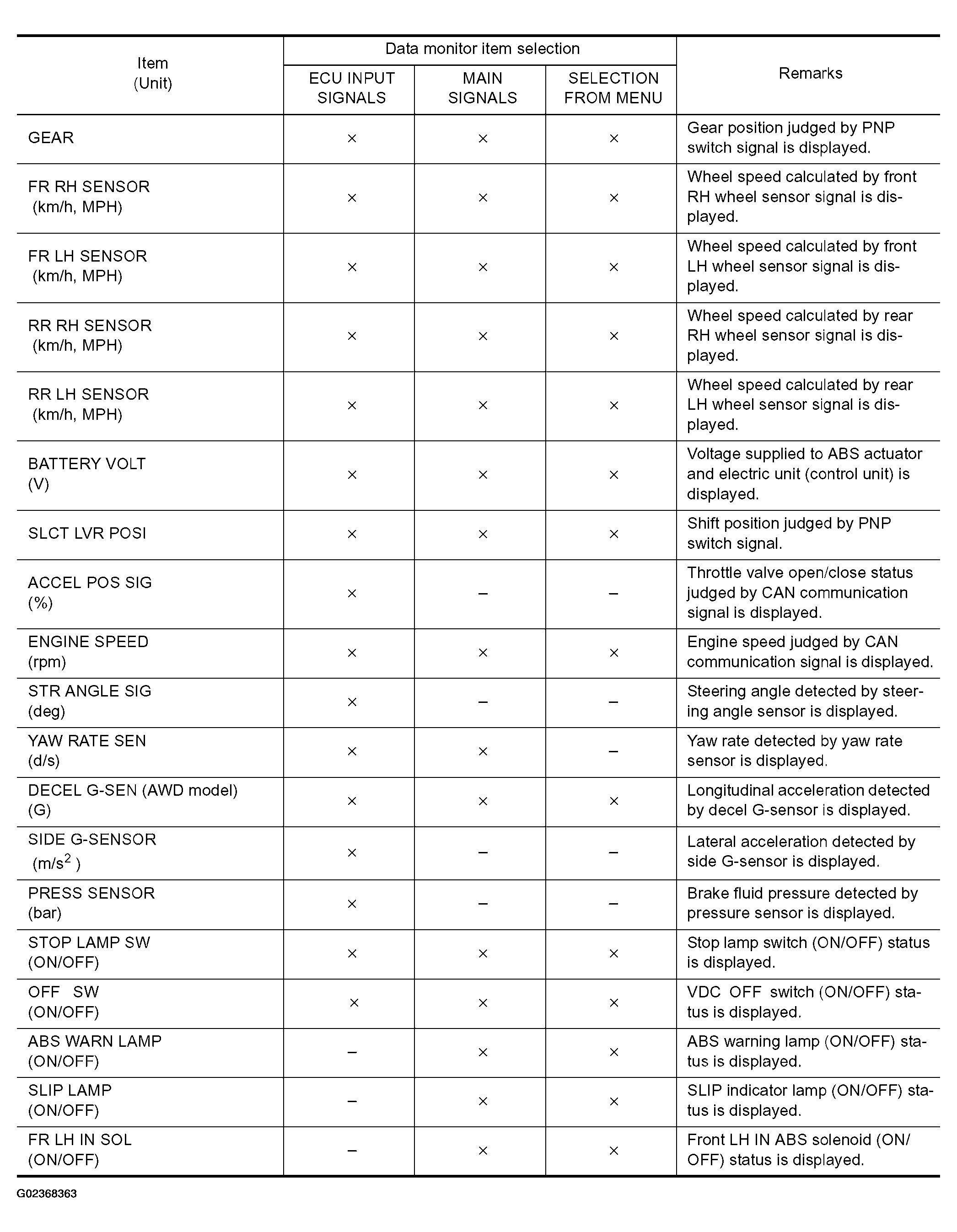

Fig 1: Display Item List (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Display Item List (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

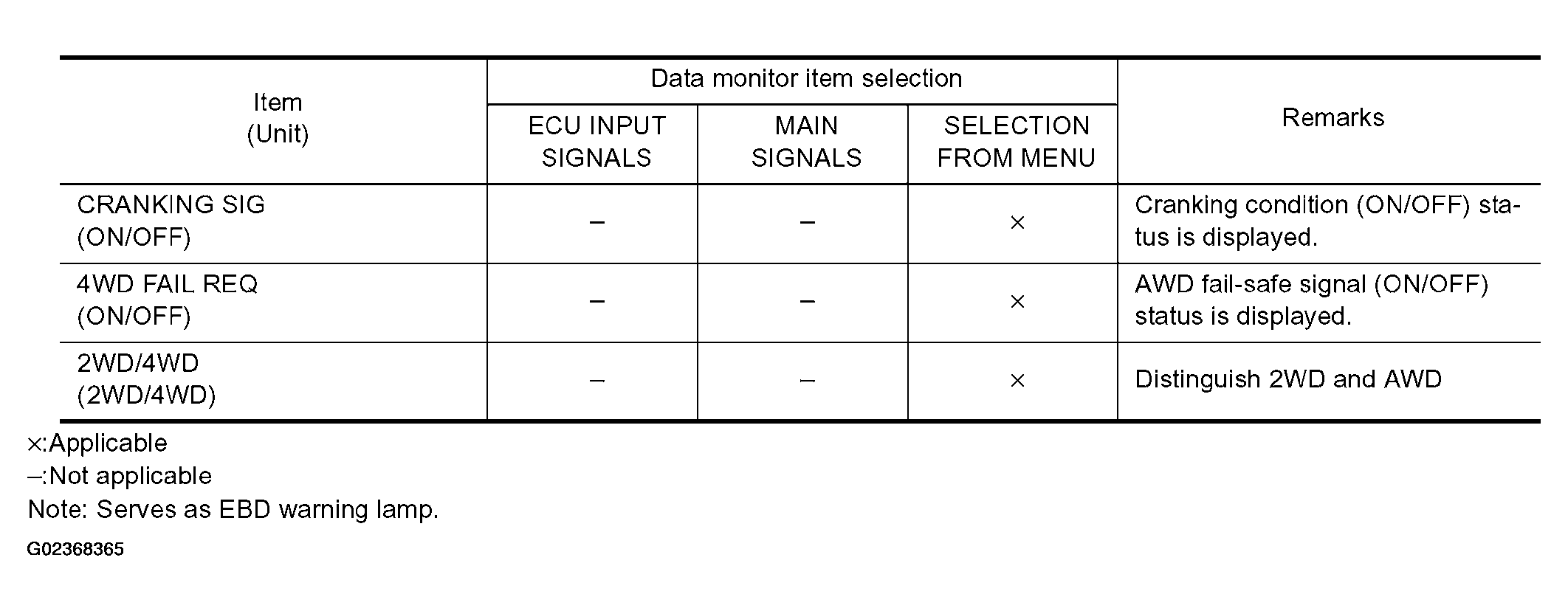

Fig 3: Display Item List (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
