Switch Operation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

The system is operated by MAIN switch and four control switches, all mounted on the steering wheel.

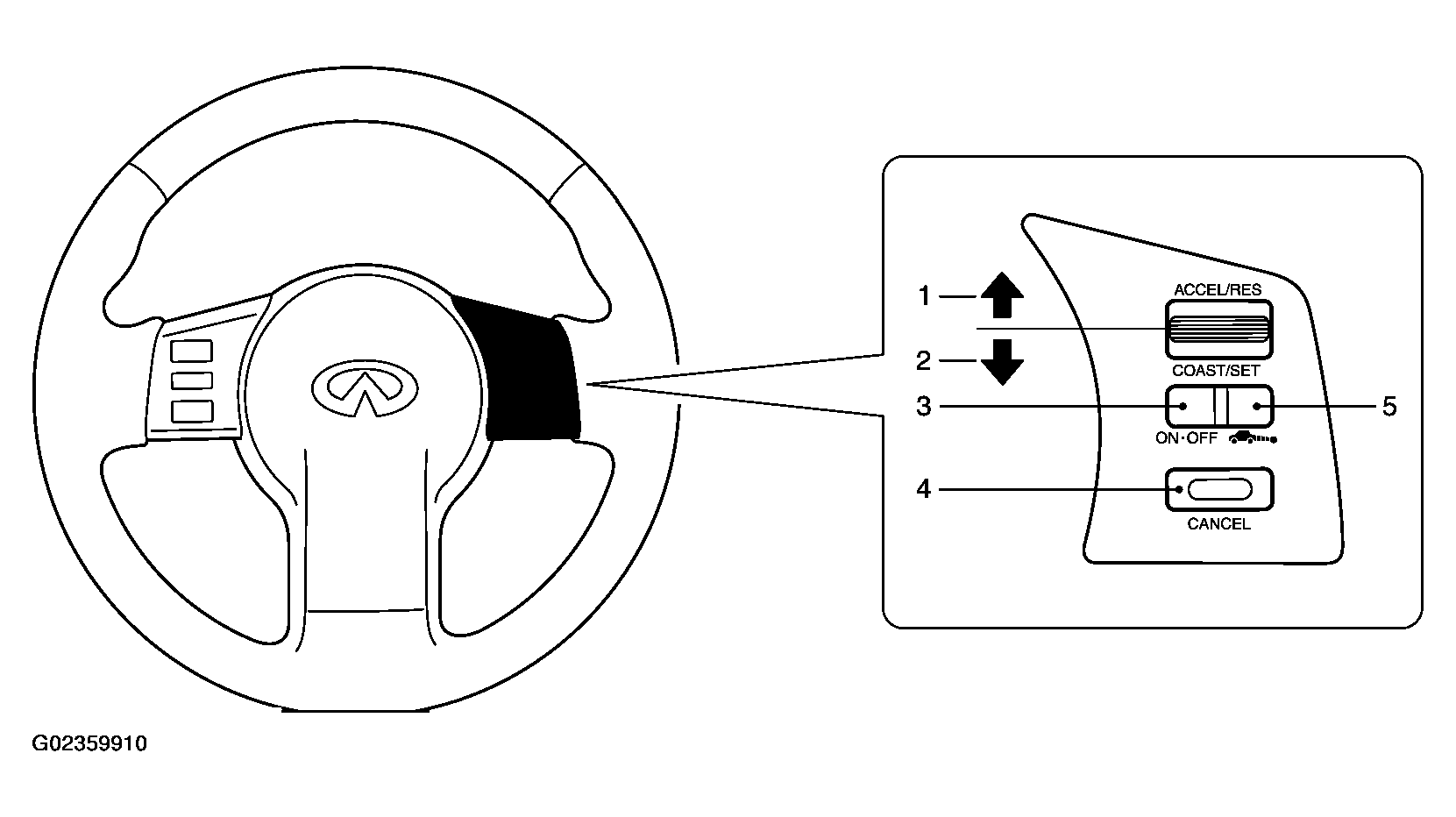

Fig 1: Identifying Main Switch And Control Switches Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

SWITCH NAME DESCRIPTION

No.	Switch name	Description
1	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally.
2	SET/COAST switch	Sets desired cruise speed, reduces speed incrementally.
3	MAIN switch	Master switch to activate the system
4	CANCEL switch	Deactivates system without erasing set speed.
5	DISTANCE switch	Changes the following distance from: Long, Middle, Short
