Boost Solenoid

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect booster solenoid/release switch connector, and measure resistance between terminals 4 and 6.

  1. 4-6: Approx. 1.4 Ω

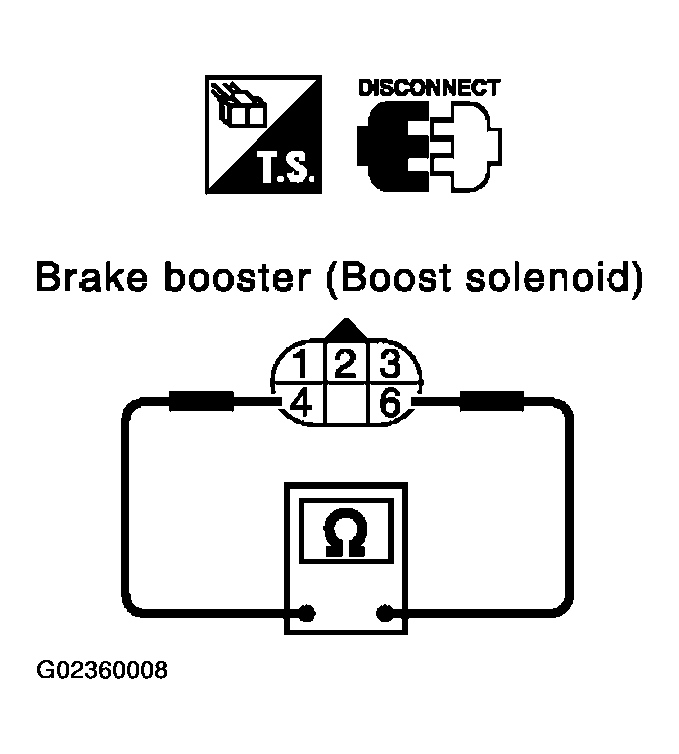

Fig 1: Measuring Resistance Between Terminals
G02360008Courtesy of NISSAN MOTOR CO., U.S.A.
