Intake Valve Timing Control Solenoid Valve

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect intake valve timing control solenoid valve harness connector.

Check resistance between intake valve timing control solenoid valve as follows.

TERMINAL RESISTANCE CHART

Terminal	Resistance
1 and 2	7.0 - 7.5Ω, [at 20°C (68°F)]
1 or 2 and ground	infinityΩ (Continuity should not exist.)

If NG, replace intake valve timing control solenoid valve.

If OK, go to next step.

Remove intake valve timing control solenoid valve.

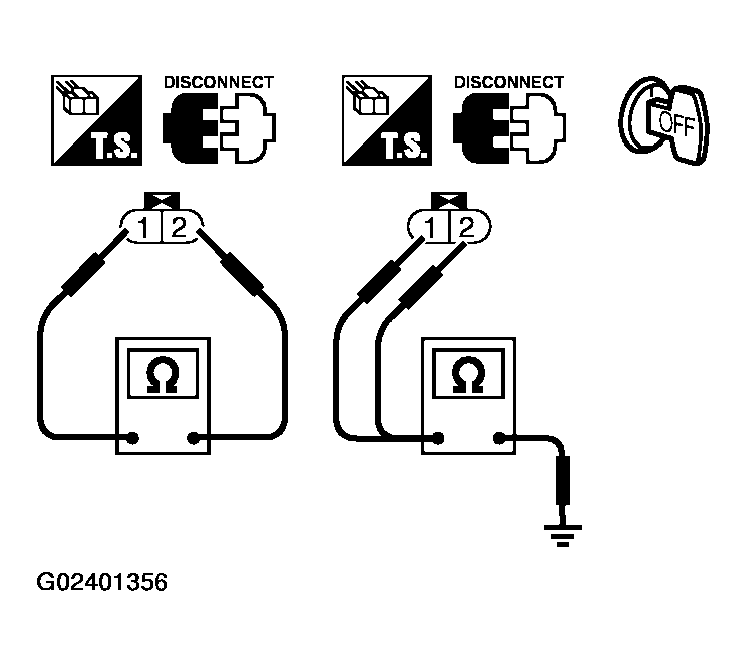

Fig 1: Intake Valve Timing Control Solenoid Terminals 1, 2, Intake Valve Timing Control Solenoid Terminals 1, 2 & Ground Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Provide 12V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger moves as shown in the figure.
CAUTION: Do not apply 12V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve.

If NG, replace intake valve timing control solenoid valve.

NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed.

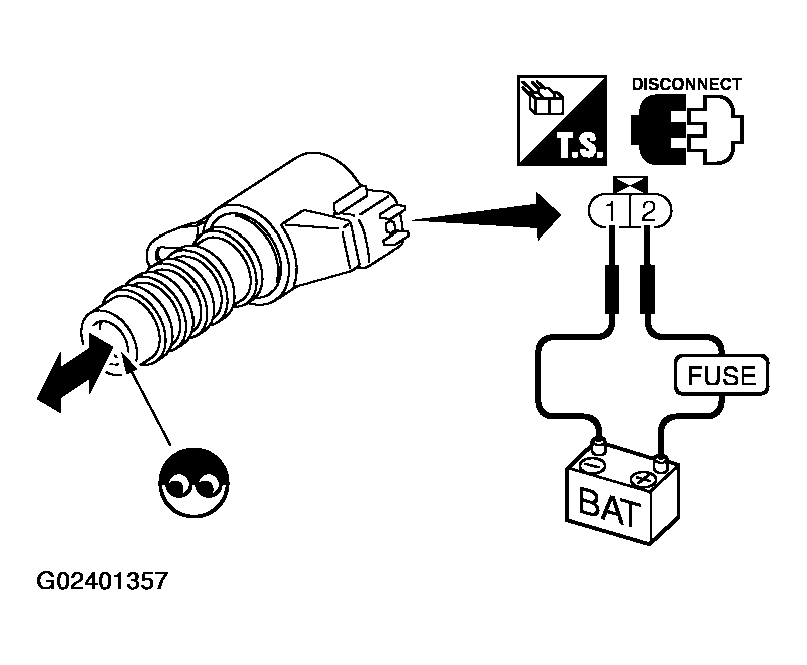

Fig 2: Intake Valve Timing Control Solenoid Valve Terminals Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.
