Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Check voltage between ECM terminal 104 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 2.

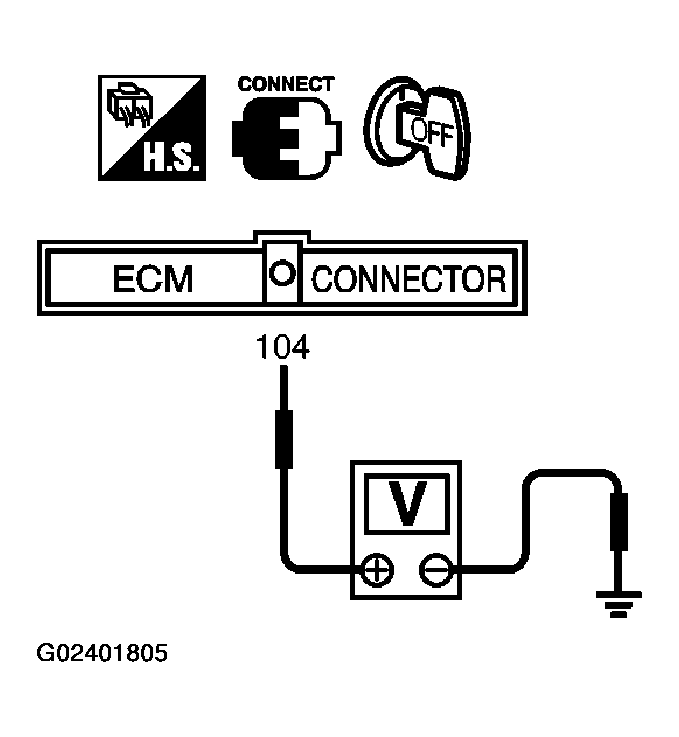

    Fig 1: ECM Connector Terminal 104 & Ground Voltage Test
    G02401805Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
    1. Disconnect ECM harness connector.
    2. Disconnect IPDM E/R harness connector E9.
    3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  4.
    • NG: GO TO 3.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E108, M15
    • Harness connectors M72, F102
    • Harness for open or short between ECM and IPDM E/R
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK FUSE
    1. Disconnect 15A fuse.
    2. Check 15A fuse for blown.

    OK or NG

    • OK: GO TO  8.
    • NG: Replace 15A fuse.
  5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.
    IGNITION SWITCH VOLTAGE

    Ignition switch Voltage
    OFF Approximately 0V
    ON Battery voltage (11 - 14V)

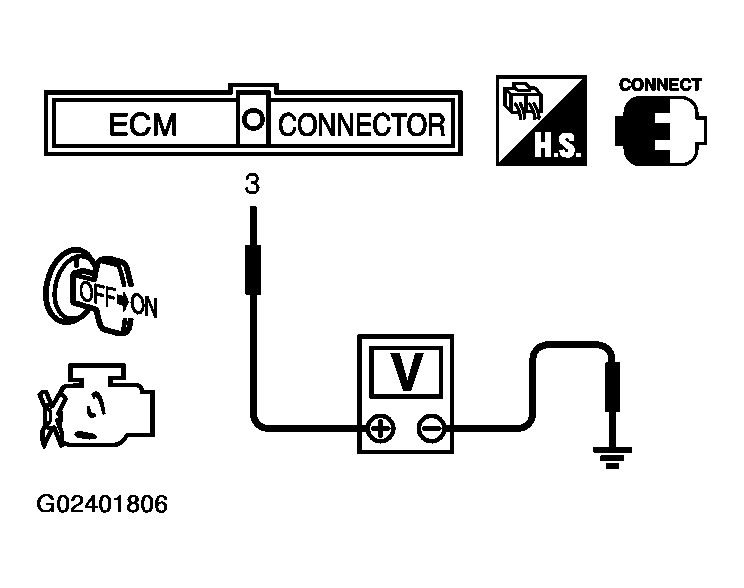

    Fig 2: ECM Connector Terminal 3 & Ground Voltage Test
    G02401806Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO 6.
  6. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect IPDM E/R harness connector E8.
    4. Check continuity between ECM terminal 3 and IPDM E/R terminal 42. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    5. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO 7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E12, F3
    • Harness for open or short between ECM and IPDM E/R
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG
