Adjustment of Steering Angle Sensor Neutral Position
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
In case of doing work that applies to the CONDITIONS FOR ADJUSTING STEERING ANGLE SENSOR NEUTRAL POSITION table, make sure to adjust neutral position of steering angle sensor before running vehicle.
CONDITIONS FOR ADJUSTING STEERING ANGLE SENSOR NEUTRAL POSITION
| Situation | Adjustment of Steering Angle Sensor Neutral Position |
|---|---|
| Removing/Installing VDC/TCS/ABS control unit | - |
| Replacing VDC/TCS/ABS control unit | - |
| Removing/Installing steering angle sensor | x |
| Removing/Installing steering components | x |
| Removing/Installing suspension components | x |
| Change 4 tires to new ones | - |
| Tire rotation | - |
| Adjusting wheel alignment | x |
| x: Required | |
| -: Not required | |
- Stop vehicle with front wheels in straight-ahead position.
- Connect the CONSULT-II and converter to the vehicle side DDL2 diagnosis connectors. Refer to CONSULT-II FUNCTIONS .

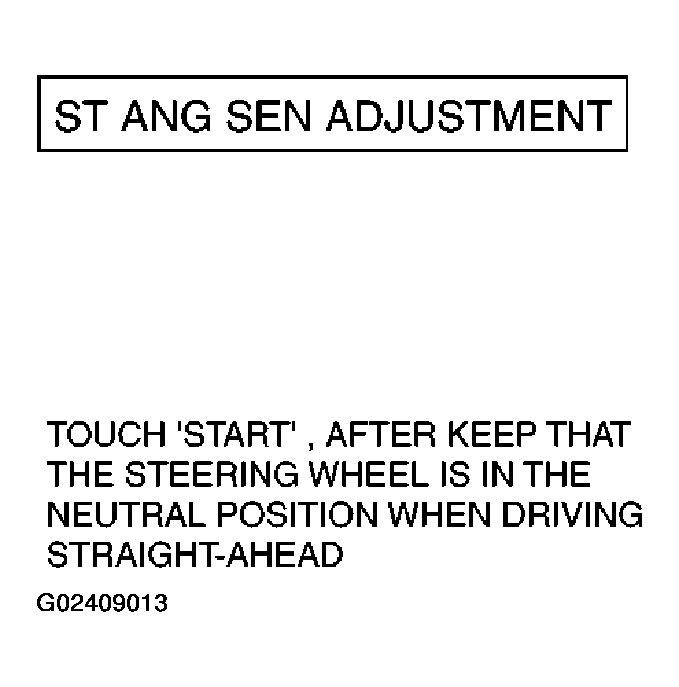

- Turn the ignition switch on and in the following order touch "ABS" "WORK SUPPORT" "ANGLE SENSOR ADJUSTMENT" in the CONSULT-II screen. Refer to CONSULT-II FUNCTIONS .
- Touch "START".CAUTION: Do not touch steering wheel while adjusting steering angle sensor.
- After approximately 10 seconds, touch "END". (After approximately 60 seconds, it ends automatically.)
- Turn ignition switch OFF, then turn it ON again.CAUTION: Be sure to carry out above operation.
- Run vehicle with front wheels in straight-ahead position, then stop.
- Select "DATA MONITOR", "CONTROL MODULE INPUT ITEM", and "STEERING ANGLE SIGNAL" on CONSULT-II screen. Then check that "STEERING ANGLE SIGNAL" is within 0+/-2.5 deg. If value is more than specification, repeat steps 1 to 5.
- Erase memory of VDC/TCS/ABS control unit and ECM.
- Turn ignition switch to OFF.
