Disassembly and Assembly for Combination Meter: Disassembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws (6) to separate steering column upper cover.
  2. Disengage tabs (2) to separate front finisher.
  3. Disengage tabs (8) to separate rear finisher.
  4. Disconnect illumination control switch connector and trip computer switch connector.

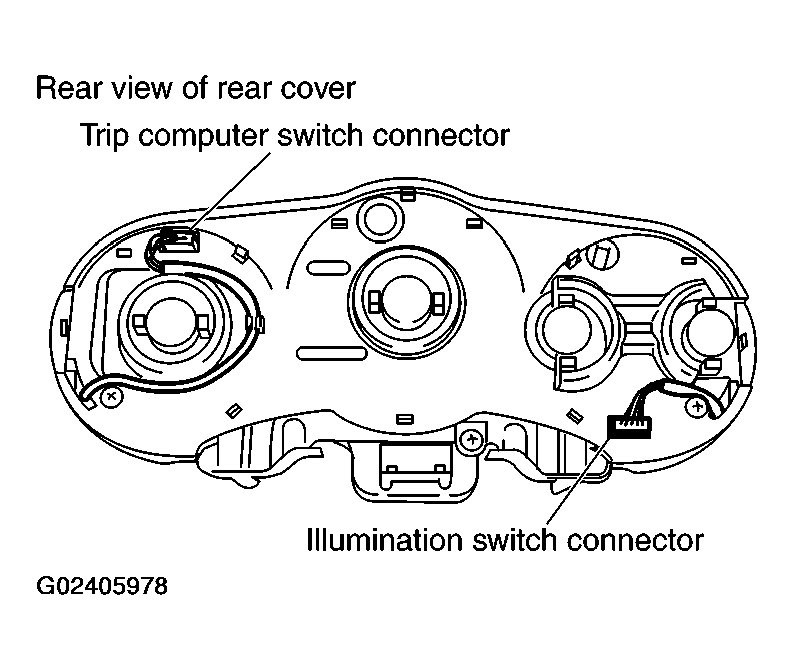

    Fig 1: Disconnecting Illumination Control Switch Connector & Trip Computer Switch Connector
    G02405978Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove screws (2) and remove rear cover.

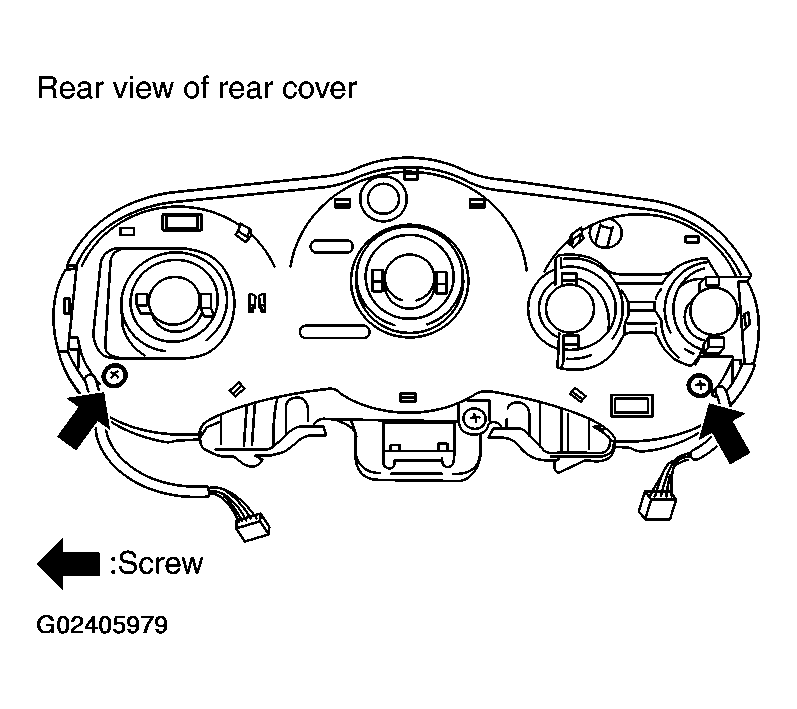

    Fig 2: Removing Rear Cover Screws
    G02405979Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disengage tabs (4) to separate upper cover from rear cover.
  7. Remove illumination control switch.
  8. Remove trip computer switch.
  9. Disengage tabs (7) to separate front cover.
