Fuel Level Sensor Unit (Sub)

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check the resistance between terminals 1 and 2.

*1 and *2: When float rod is in contact with stopper.

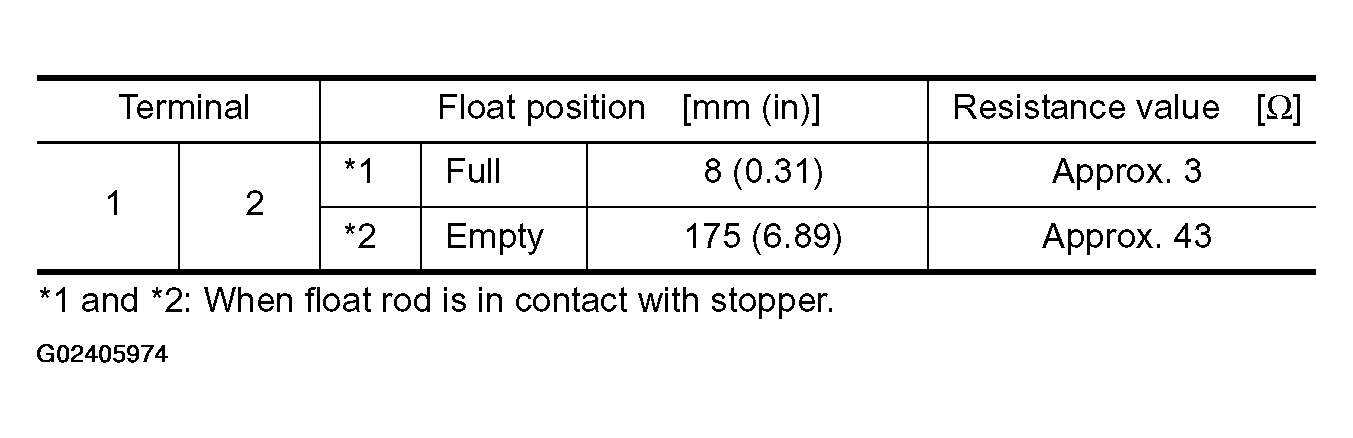

Fig 1: Fuel Level Sensor Unit (Sub) Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

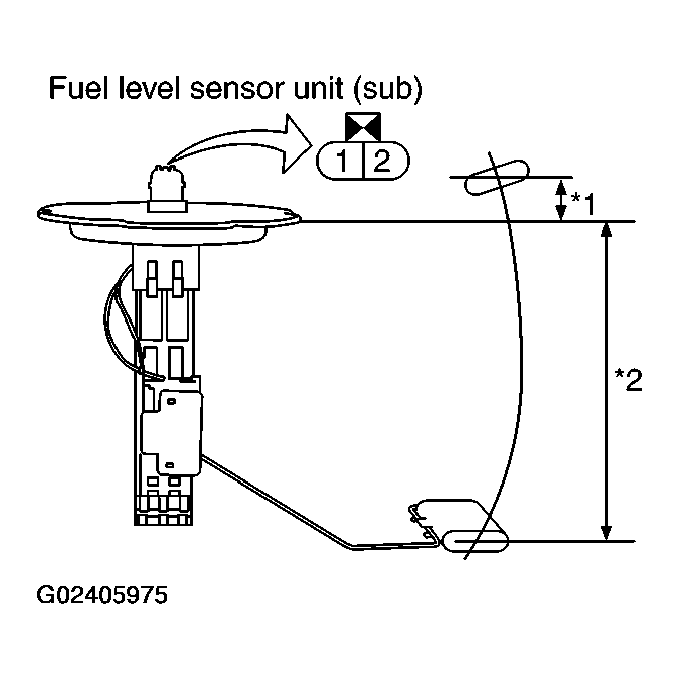

Fig 2: Checking Fuel Level Sensor Unit (Sub)

Courtesy of NISSAN MOTOR CO., U.S.A.
