Triple Meter

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Oil pressure gauge and voltmeter are controlled by the triple meter.
Trip computer are controlled by signals from the unified meter and A/C amp.
Trip computer segment can be checked in self-diagnosis mode of combination meter.
Meters/gauges can be checked in self-diagnosis mode of combination meter.

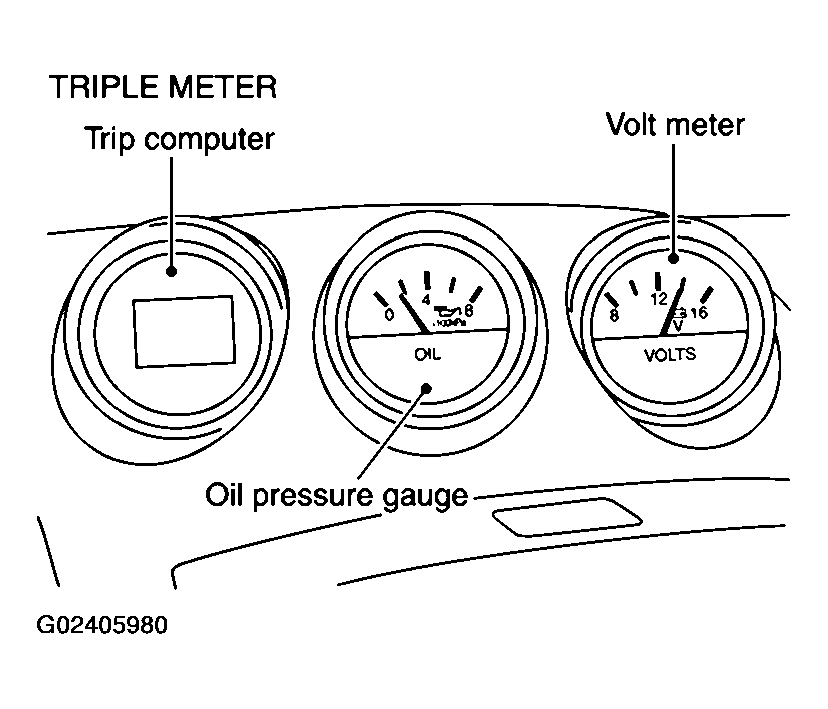

Fig 1: Triple Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
