Trip Computer Switch Inspection

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Symptom:

Shift-up indicator setting indication is not displayed properly or shift-up indicator does not operate properly.
Trip computer switch is not operate.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Remove combination meter. Refer to "REMOVAL AND INSTALLATION FOR COMBINATION METER ".
3. Remove rear finisher to combination meter. Refer to "DISASSEMBLY AND ASSEMBLY FOR COMBINATION METER ".
4. Check trip computer switch connector for looseness.
OK or NG
- OK : GO TO 2.
- NG : Repair trip computer switch connector.
CHECK CIRCUIT
1. Disconnect trip computer switch connector.
2. Check continuity between trip computer switch harness connector M208 terminals 3, 4 and 5.

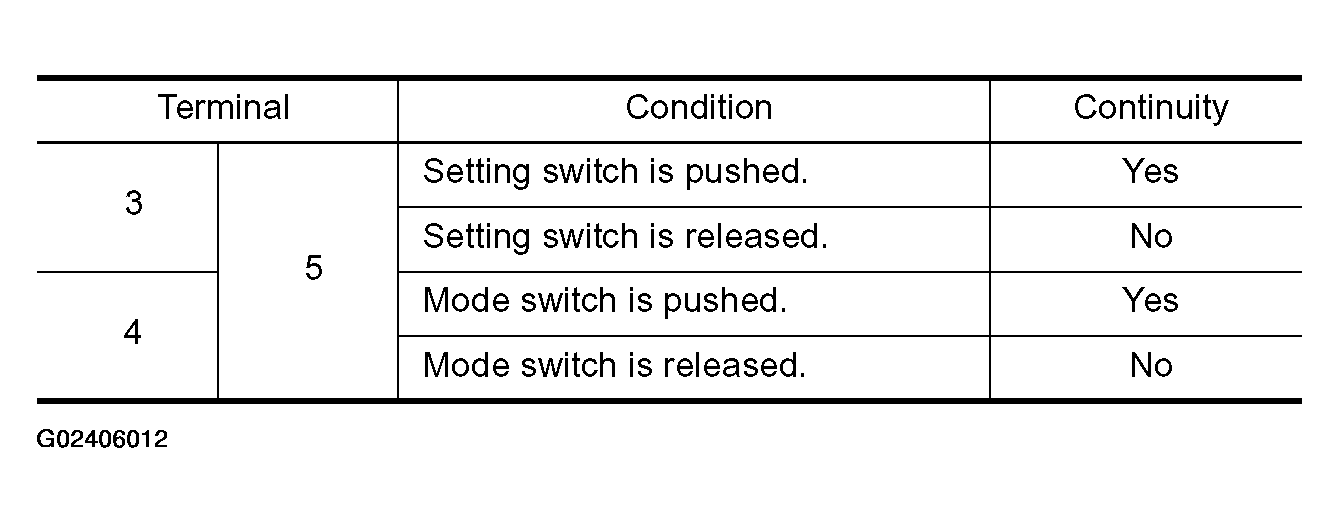

  Fig 1: Trip Computer Switch Harness Connector M208 Terminals 3, 4 & 5 Continuity Specifications Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

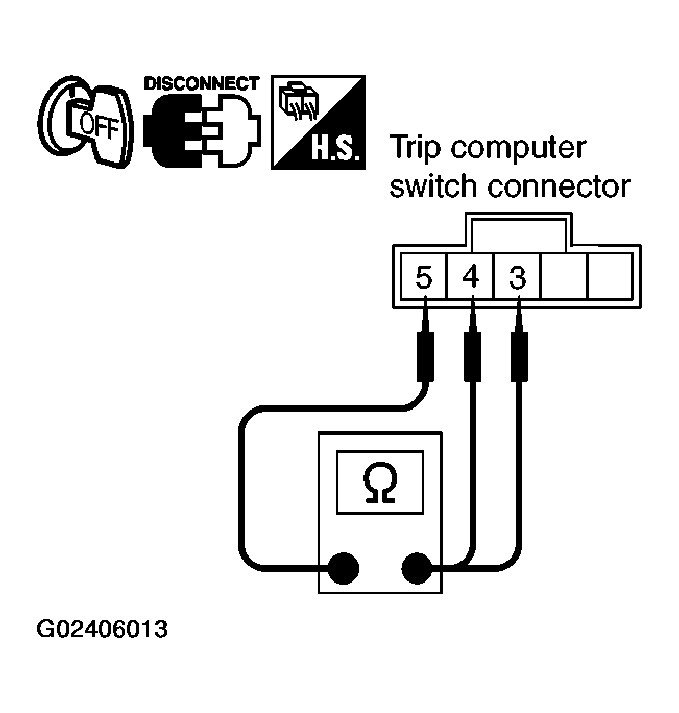

  Fig 2: Trip Computer Switch Harness Connector M208 Terminals 3, 4 & 5 Continuity Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Replace combination meter.
- NG : Replace trip computer switch.
