Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

  4. Touch "ACTIVE TEST".
  5. The "SELECT TEST ITEM" screen is displayed.

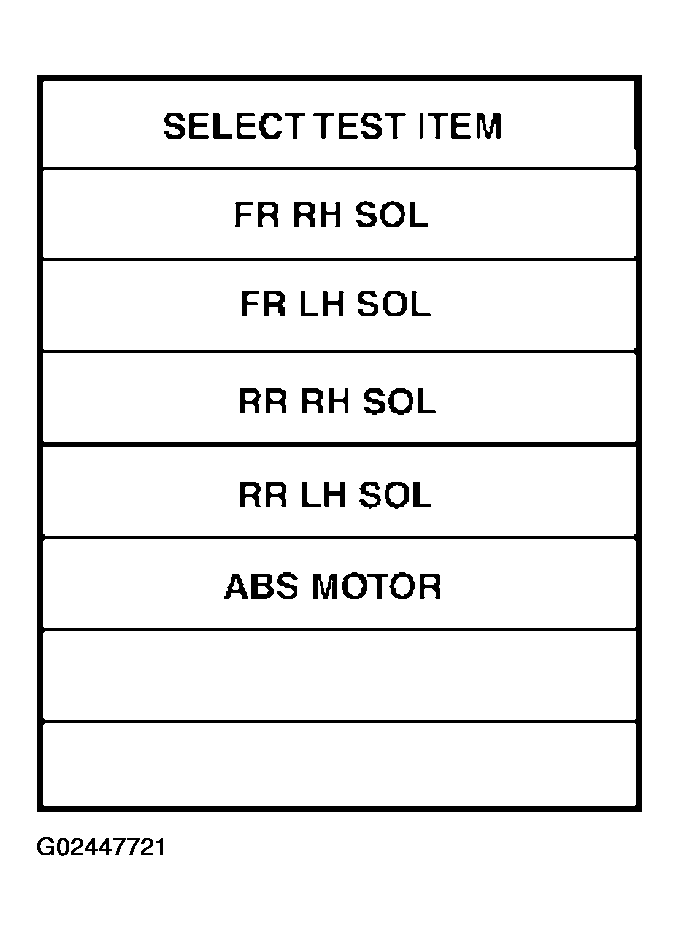

    Fig 1: Displaying "SELECT TEST ITEM" Screen
    G02447721Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch necessary test item.
  7. With the "MAIN SIGNALS" display selected, touch "START".
  8. The Active Test screen will be displayed, so conduct the following test.
