Adjustment of Steering Angle Sensor Neutral Position

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

After removing/installing or replacing ABS actuator and electric unit (control unit), steering angle sensor, steering components, suspension components, tires, or after adjusting wheel alignment, be sure to adjust neutral position of steering angle sensor before running vehicle.

NOTE: Adjustment of steering angle sensor neutral position requires CONSULT-II.

Stop vehicle with front wheels in straight-ahead position.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition switch ON (do not start engine).

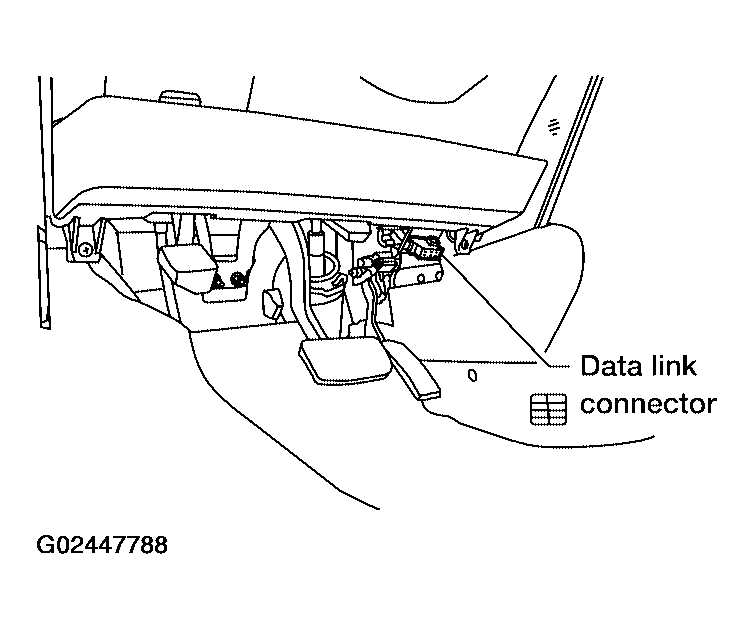

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS", "WORK SUPPORT" and "ST ANGLE SENSOR ADJUSTMENT" on CONSULT-II screen in this order.
Touch "START".
CAUTION: Do not touch steering wheel while adjusting steering angle sensor.

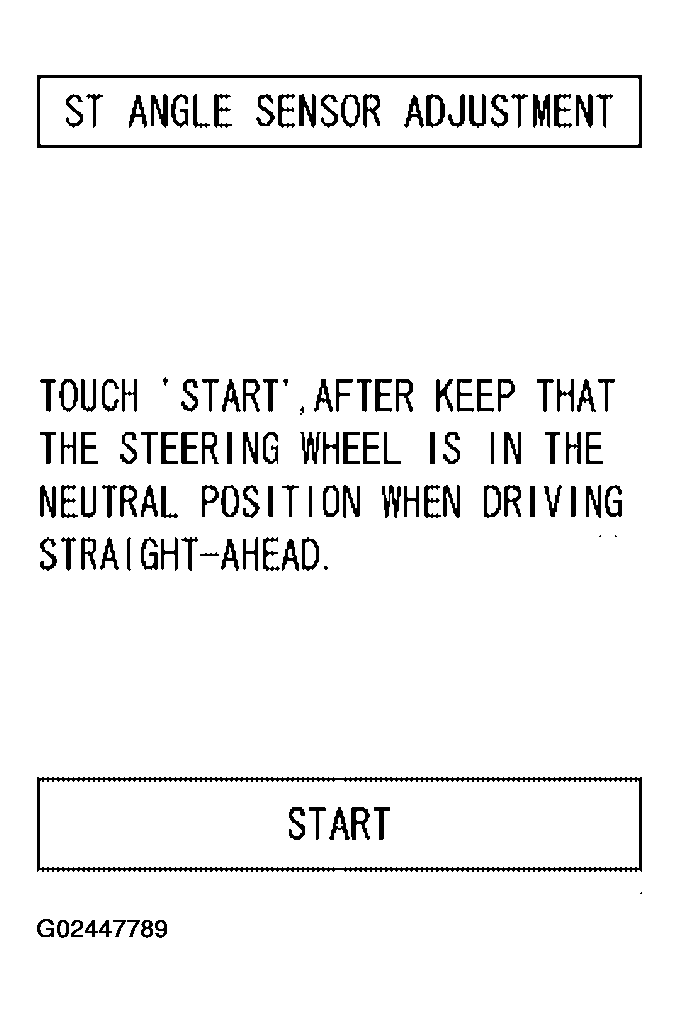

Fig 2: Displaying START Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
After approximately 10 seconds, touch "END". (After approximately 60 seconds, it ends automatically.)
Turn ignition switch OFF, then turn it ON again.
Run vehicle with front wheels in straight-ahead position, then stop.
Select "DATA MONITOR", "SELECTION FROM MENU", and "STR ANGLE SIG" on CONSULT-II screen. Then check that "STR ANGLE SIG" is within 0+/-2.5 deg. If value is more than specification, repeat steps 1 to 5.
Erase memory of ABS actuator and electric unit (control unit) and ECM.
Turn ignition switch to OFF.
