Transfer Fluid: Replacement: Draining

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Stop engine.
Remove the drain plug and gasket. Drain the fluid.
Install the drain plug with a new gasket to the transfer. Tighten to the specified torque. Refer to , "COMPONENTS ".
CAUTION: Do not reuse gasket.

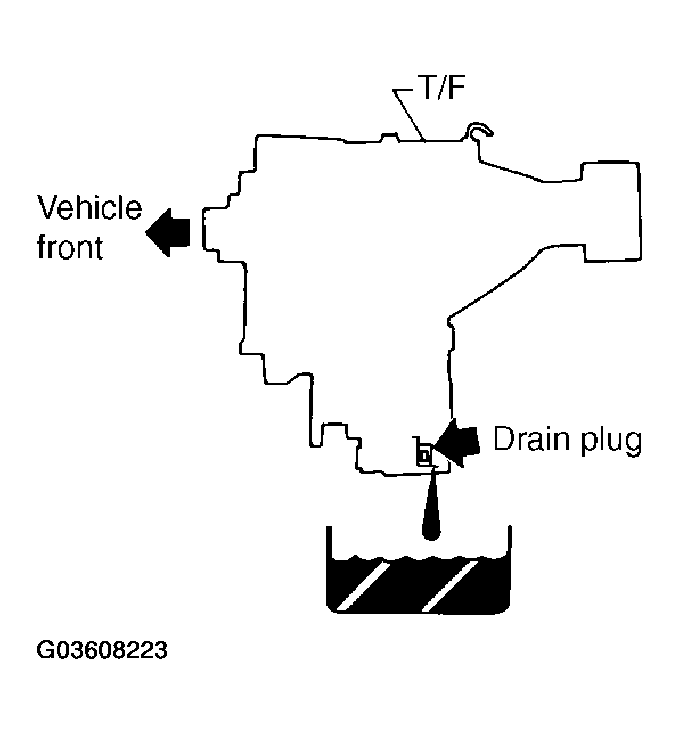

Fig 1: Removing Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
