Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to the metal bushing, then install the metal bushing until it becomes "Dimension A", using Tool.
Dimension A: 7.7 - 8.3mm (0.303 - 0.327in)

Tool number: ST35300000 (-)

CAUTION: Do not reuse metal bushing.

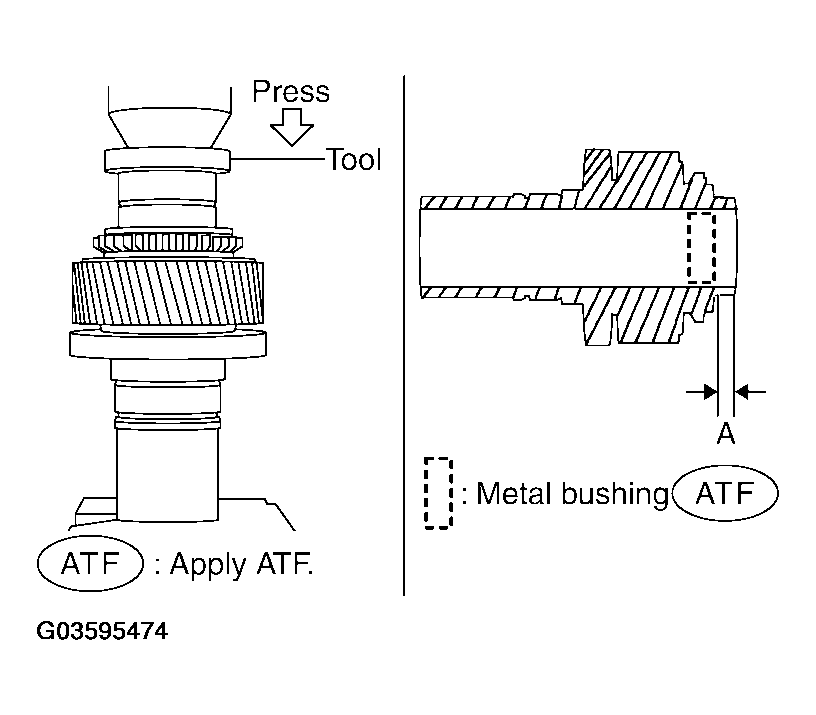

Fig 1: Applying ATF To Metal Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply ATF to the needle bearing, then install the needle bearing until it becomes "Dimension B", using Tool.
Dimension B: 62.5 - 63.1mm (2.461 - 2.484in)

Tool number: ST33220000 (-)

CAUTION: Do not reuse needle bearing.

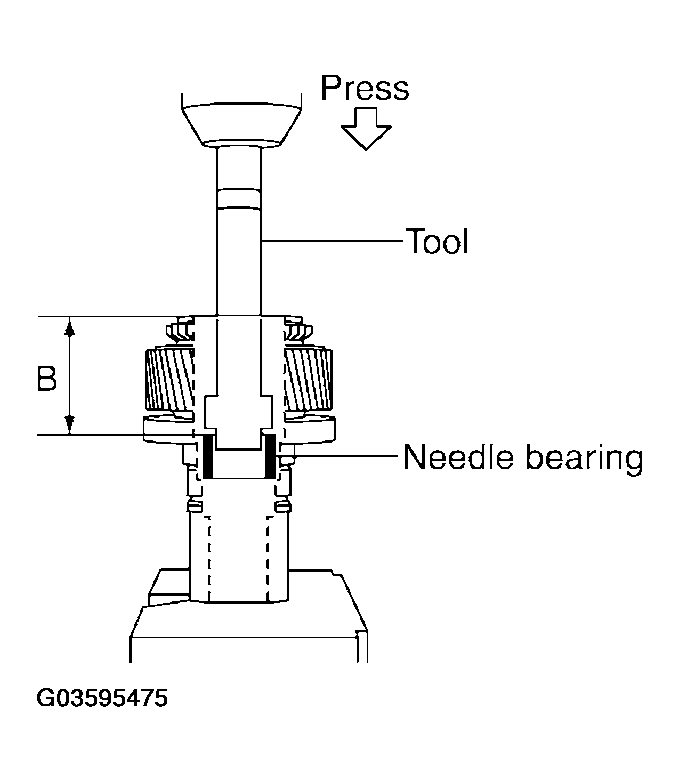

Fig 2: Applying ATF To Needle Bearing And Installing To Proper Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the carrier bearing to the sun gear, using Tools.
Tool number A: ST30720000 (J-25405)

B: ST27863000 (-)

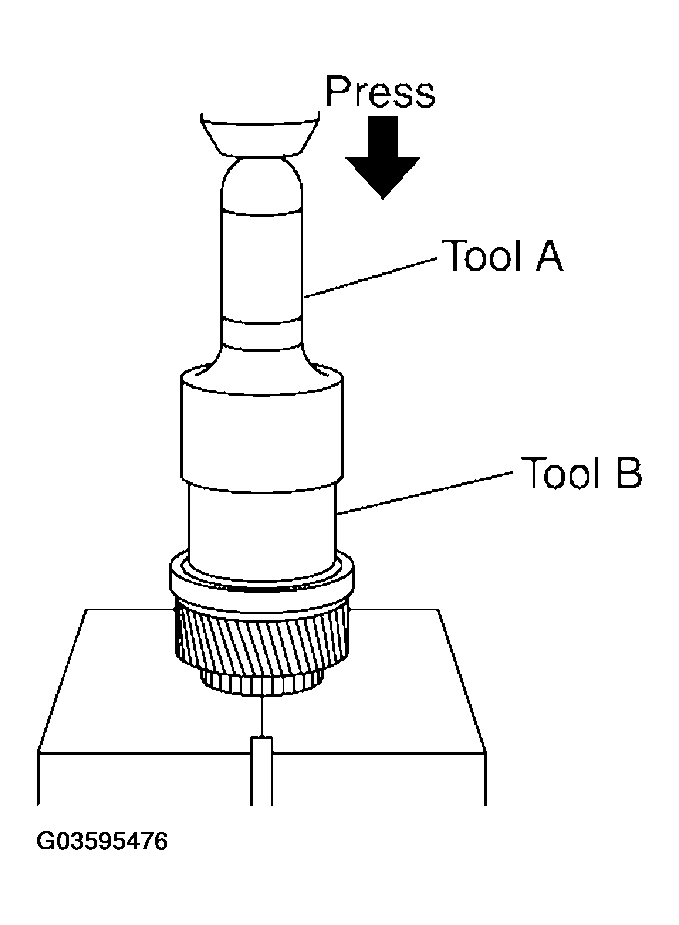

Fig 3: Installing Carrier Bearing To Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the snap ring to the sun gear assembly, using suitable tool.
CAUTION: Do not reuse snap ring.

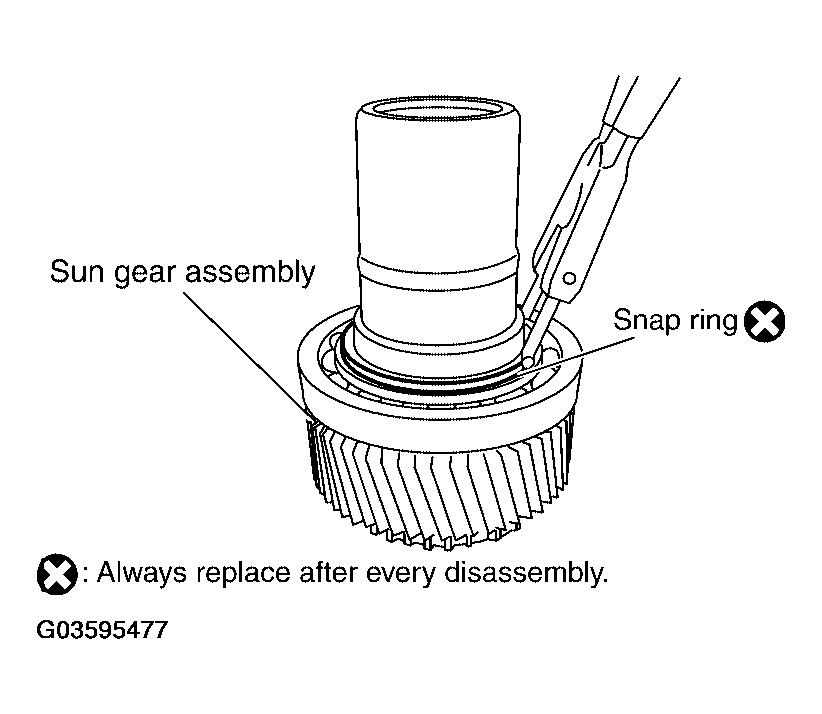

Fig 4: Installing Snap Ring To Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the sun gear assembly to the planetary carrier assembly.
Install the snap ring to the planetary carrier assembly.
CAUTION: Do not reuse snap ring.

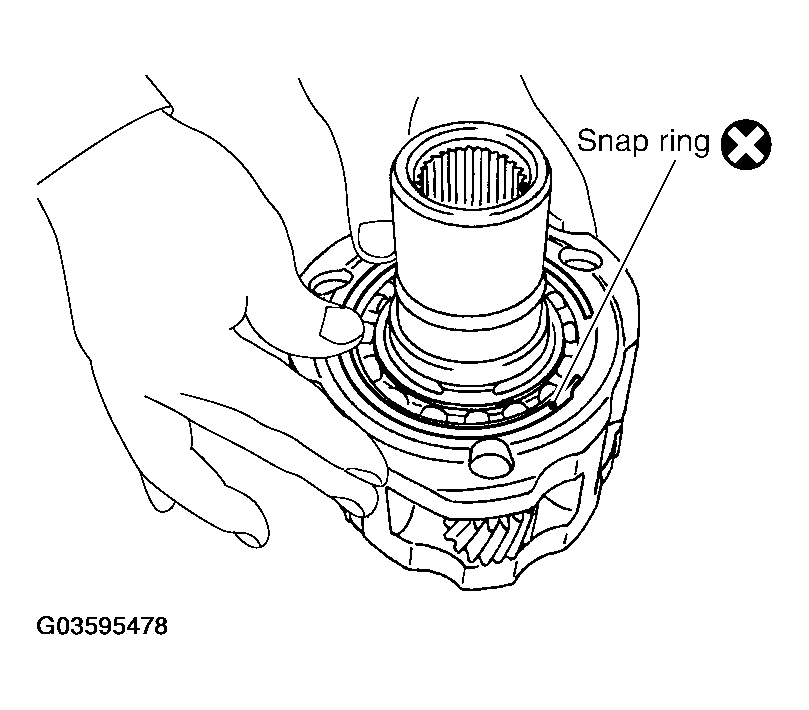

Fig 5: Installing Snap Ring To Planetary Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
