Component Inspection

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect 4LO switch harness connector.
Remove 4LO switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

Push and release 4LO switch and check continuity between 4LO switch terminals 12 and 13.

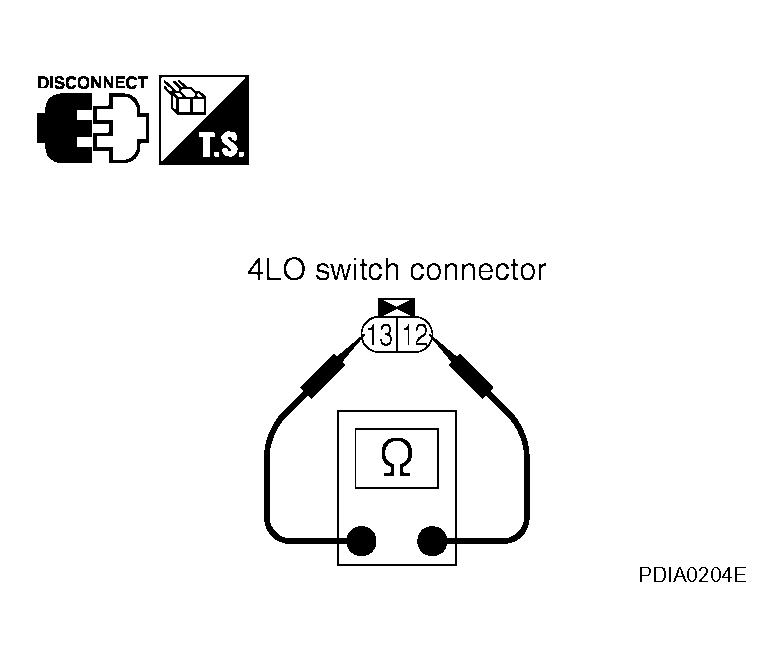

Fig 1: Checking Continuity Between 4LO Switch Terminals 12 And 13

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINALS CONTINUITY REFERENCE

Terminal	Condition	Continuity
12 - 13	Push 4LO switch	Yes
12 - 13	Release 4LO switch	No

If NG, replace the 4LO switch.
