Checking Drive Belts: Notes
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING:
Be sure to perform the inspection when the engine is stopped.

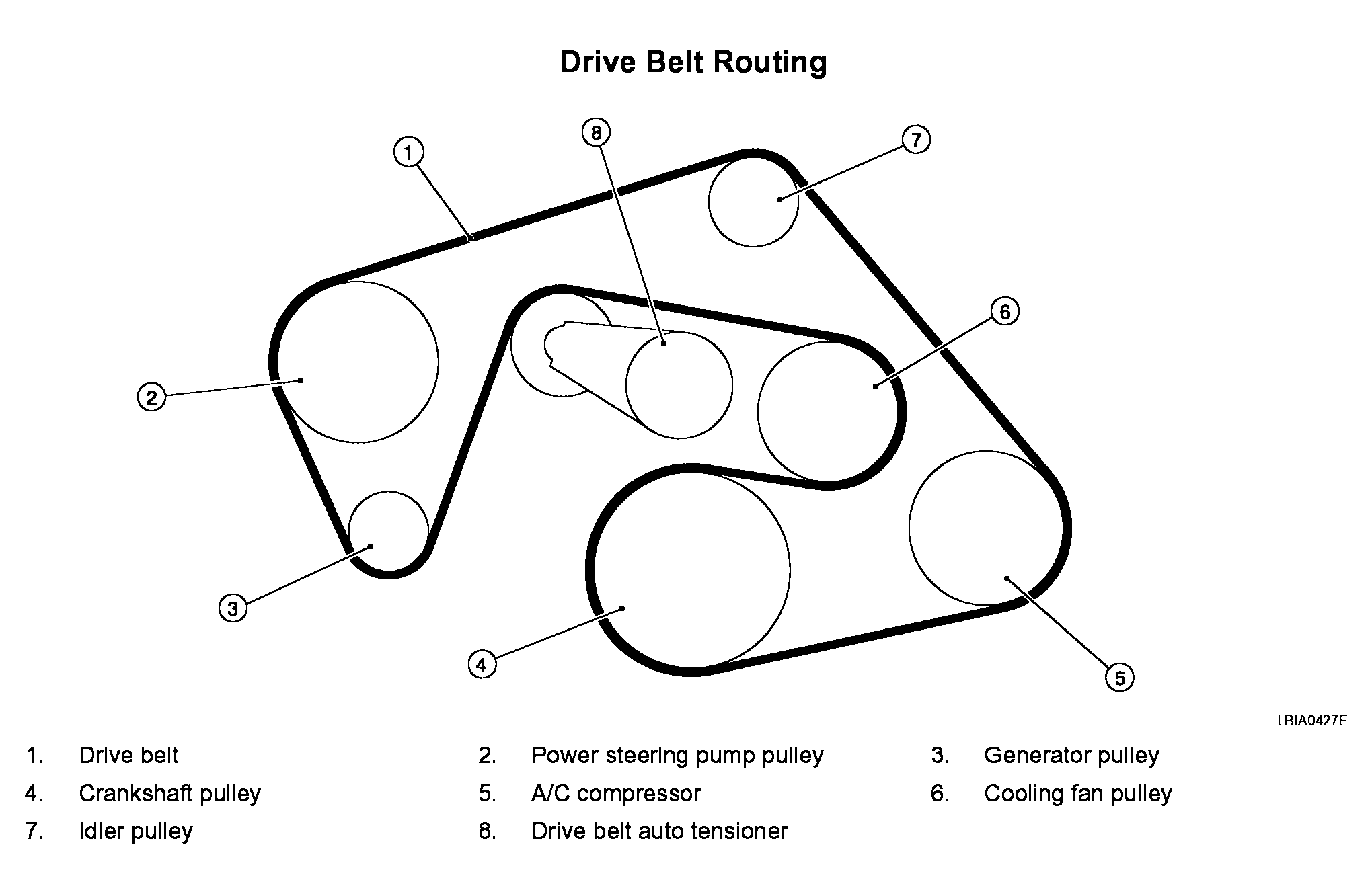

- Remove air duct and resonator assembly (inlet) when inspecting the drive belt.
- Visually check the entire drive belt for wear, damage or cracks.
