Drive Pinion Assembly

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install drive pinion rear bearing outer race and drive pinion front bearing outer race using Tools.
Tool number A: ST30611000 (J-25742-1)

B: ST30613000 (J-25742-3)

C: KV38100200 (J-26233)
CAUTION:
- First tap the drive pinion bearing outer race until it becomes flush with the gear carrier.
- Do not reuse drive pinion front and rear bearing outer race.

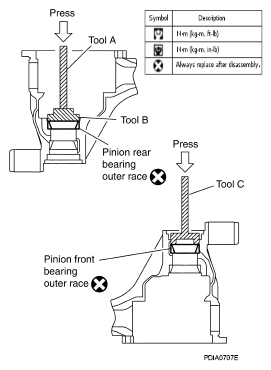

  Fig 1: Identifying Front And Rear Bearing Outer Races
Select drive pinion height adjusting washer. Refer to "DRIVE PINION HEIGHT ".
Install the selected drive pinion height adjusting washer to the drive pinion. Press the drive pinion rear bearing inner race to it using Tool.
Tool number : ST30901000 (J-26010-01)
CAUTION:
- Install the drive pinion height adjusting washer in the proper direction as shown.
- Do not reuse drive pinion rear bearing inner race.

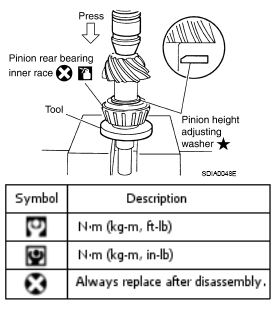

  Fig 2: Identifying Drive Pinion Height Adjusting Washer
Install the collapsible spacer to the drive pinion.
CAUTION: Do not reuse collapsible spacer.

Fig 3: Assembling Collapsible Spacer To Drive Pinion
Apply differential gear oil to the drive pinion rear bearing, and install the drive pinion assembly to the gear carrier.
Apply differential gear oil to the drive pinion front bearing, and install the drive pinion front bearing inner race to the drive pinion assembly.
CAUTION: Do not reuse drive pinion front bearing inner race.
Press the drive pinion front bearing inner race to the drive pinion as far as drive pinion lock nut can be tightened using Tool.
Tool number : ST33200000 (J-26082)

Fig 4: Pressing Pinion Front Bearing Inner Race To Drive Pinion
Apply multi-purpose grease to the lips and differential gear oil to the circumference of the new front oil seal. Then drive the new front oil seal in evenly until it becomes flush with the gear carrier using Tools.
Tool number A: ST30720000 (J-25405)

B: ST27863000 ( - )

Fig 5: Identifying Front Oil Seal
CAUTION:
- Do not reuse front oil seal.
- Do not incline the new front oil seal when installing.
- Apply multi-purpose grease to the lips and differential gear oil to the circumference of the new front oil seal.
Install the companion flange to the drive pinion while aligning the matching marks.
Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the drive pinion lock nut tightening torque using Tool A, and check the drive pinion bearing preload torque using Tool B.
Tool number A: KV38108300 (J-44195)

B: ST3127S000 (J-25765-A)

Drive pinion bearing preload torque:

1.08 - 1.66 N.m (0.11 - 0.16 kg-m, 10 - 14 in-lb)
CAUTION:
- Do not reuse drive pinion lock nut.
- Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut.
- Adjust the drive pinion lock nut tightening torque to the lower limit first. Do not exceed the drive pinion lock nut specified torque. Refer to "COMPONENTS ".
- If the drive pinion bearing preload torque exceeds the specified value, replace collapsible spacer and tighten it again to adjust. Do not loosen drive pinion lock nut to adjust the drive pinion bearing preload torque.
- After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.

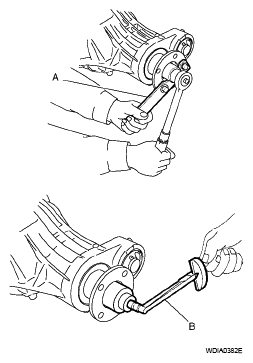

  Fig 6: Tightening Drive Pinion Lock Nut
Check companion flange runout. Refer to "COMPANION FLANGE RUNOUT ".
Install the differential case assembly. Refer to "DIFFERENTIAL ASSEMBLY ".
