WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

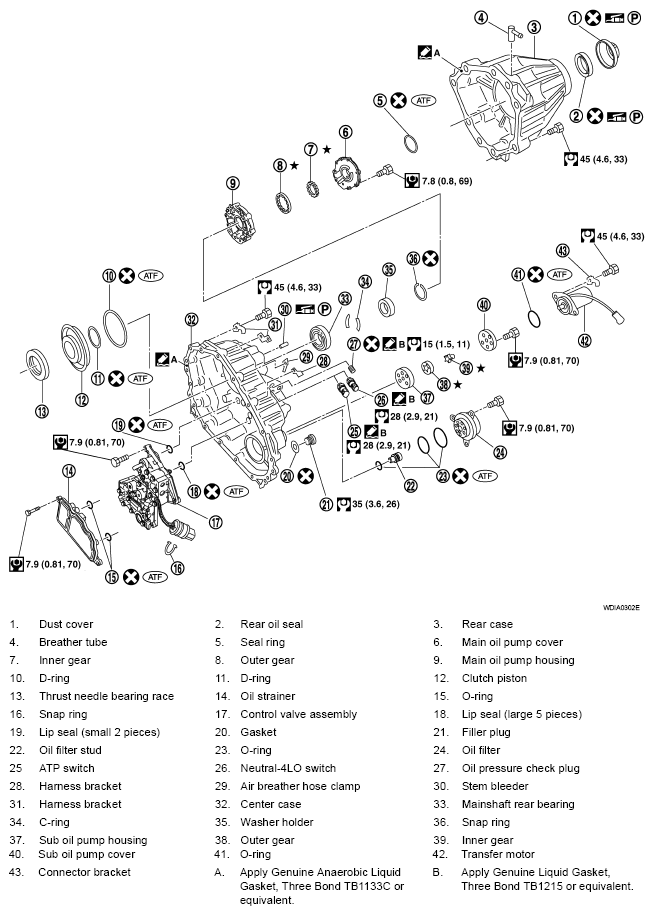

Fig 1: Exploded View Of Transfer Assembly Components (1 Of 2)

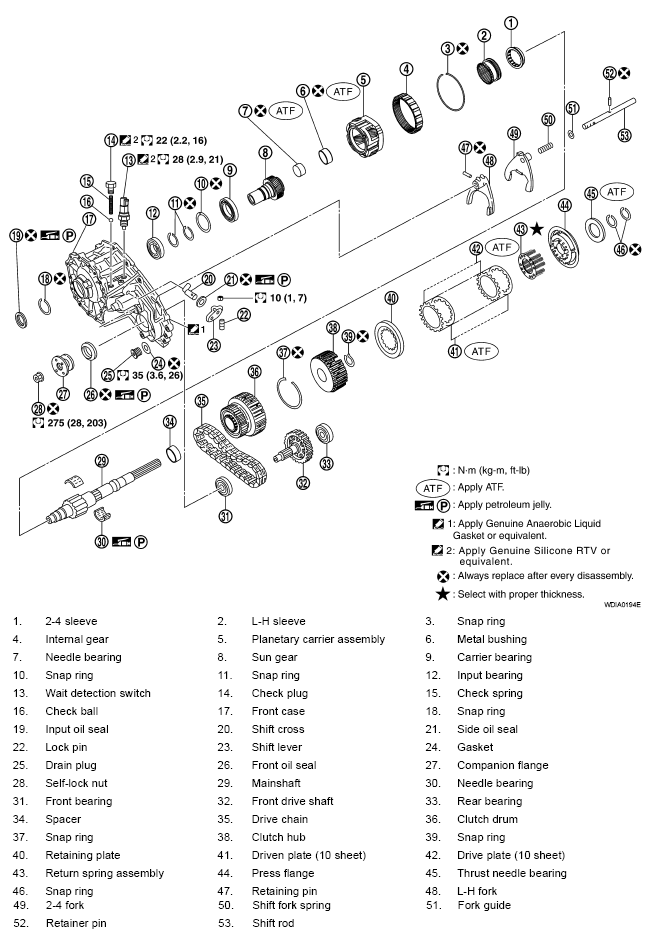

Fig 2: Exploded View Of Transfer Assembly Components (2 Of 2)
