System Drawing
WARNING:
This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

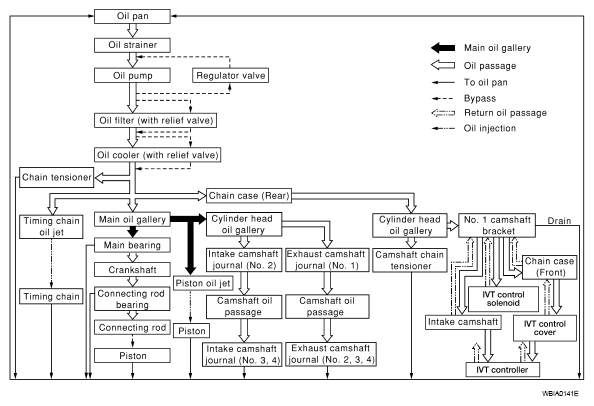

Fig 1: Lubrication System Drawing Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
