Brake Pedal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Unit: mm (in)

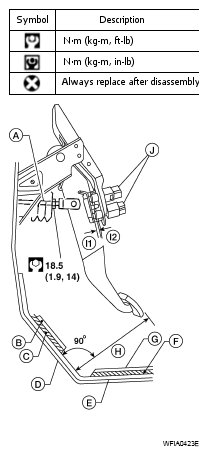

Fig 1: Brake Pedal Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

BRAKE PEDAL SPECIFICATIONS

Free height "H"⁽¹⁾

M/T

164.1 - 174.1 (6.46 - 6.85)

A/T

173.1 - 183.1 (6.81 - 7.21)

Pedal height (with engine running, brake pedal force 490 N {50 kg-f, 110 lb-f) "H"

M/T

More than 84 (3.31)

A/T

More than 90.3 (3.55)

Clearance "I1 or I2" between pedal stopper and threaded end of stop lamp switch or ASCD switch

0.74 - 1.96 (0.0291 - 0.0772)

Pedal play

3 - 11 (0.12 - 0.43)

⁽¹⁾	Measured from surface of dash reinforcement panel to surface of pedal pad

A: Input rod

B: Floor carpet

C: Dash Insulator

D: Floor Panel

E: Dash reinforcement panel

F: Dash insulator

G: Floor carpet

I1, I2: Gap

J: Stop lamp switch and ASCD switch
