Removal and Installation: Notes

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

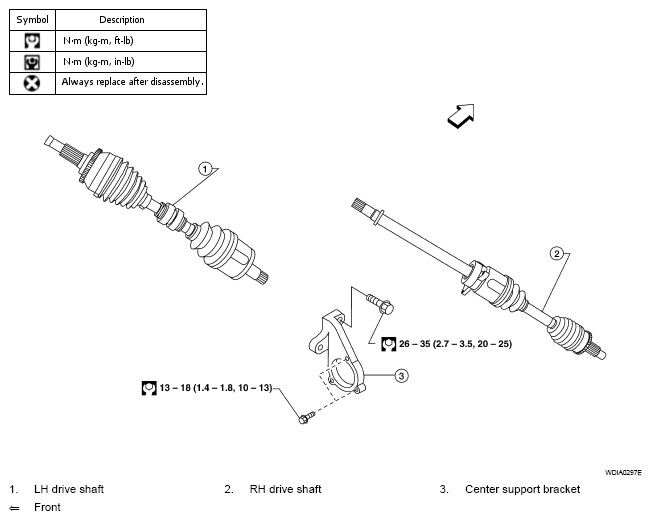

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications
G04916271Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Circular clips should be properly meshed with the differential side gear (transaxle side). Check that the circular clips are properly seated after installation and that the drive shaft will not come out. Always use a new circular clip for installation.
  • Use a suitable cloth or protector over the boots to prevent damage to the boots during removal and installation.
