Testing Condition

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

WITH CONSULT-II

Start engine (VDC switch OFF).
Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.
Warm engine up to normal operating temperature.
Maintain the following conditions for at least 60 consecutive seconds.

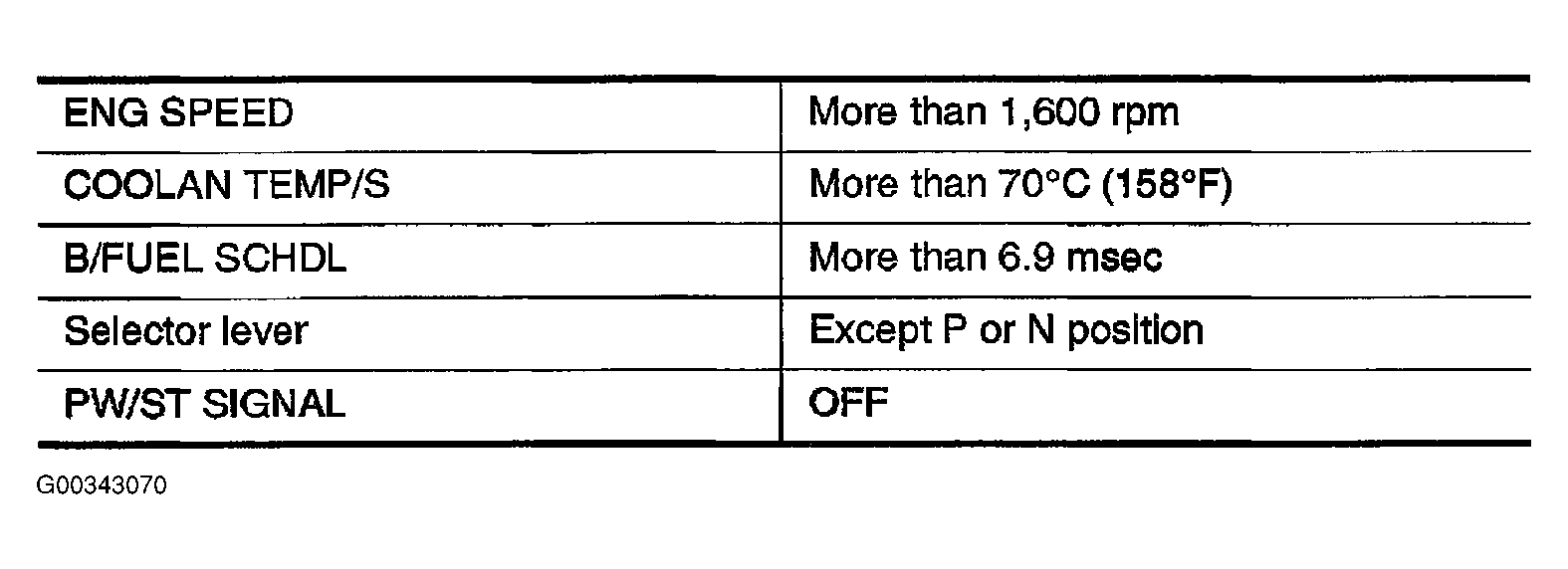

Fig 1: Test Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

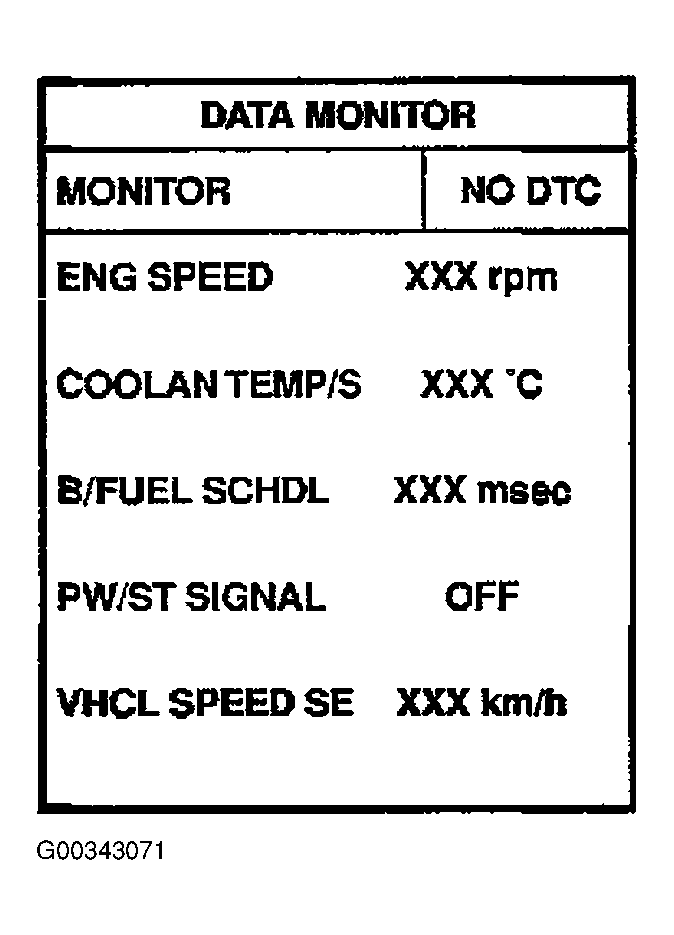

Fig 2: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
