Power Transfer
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

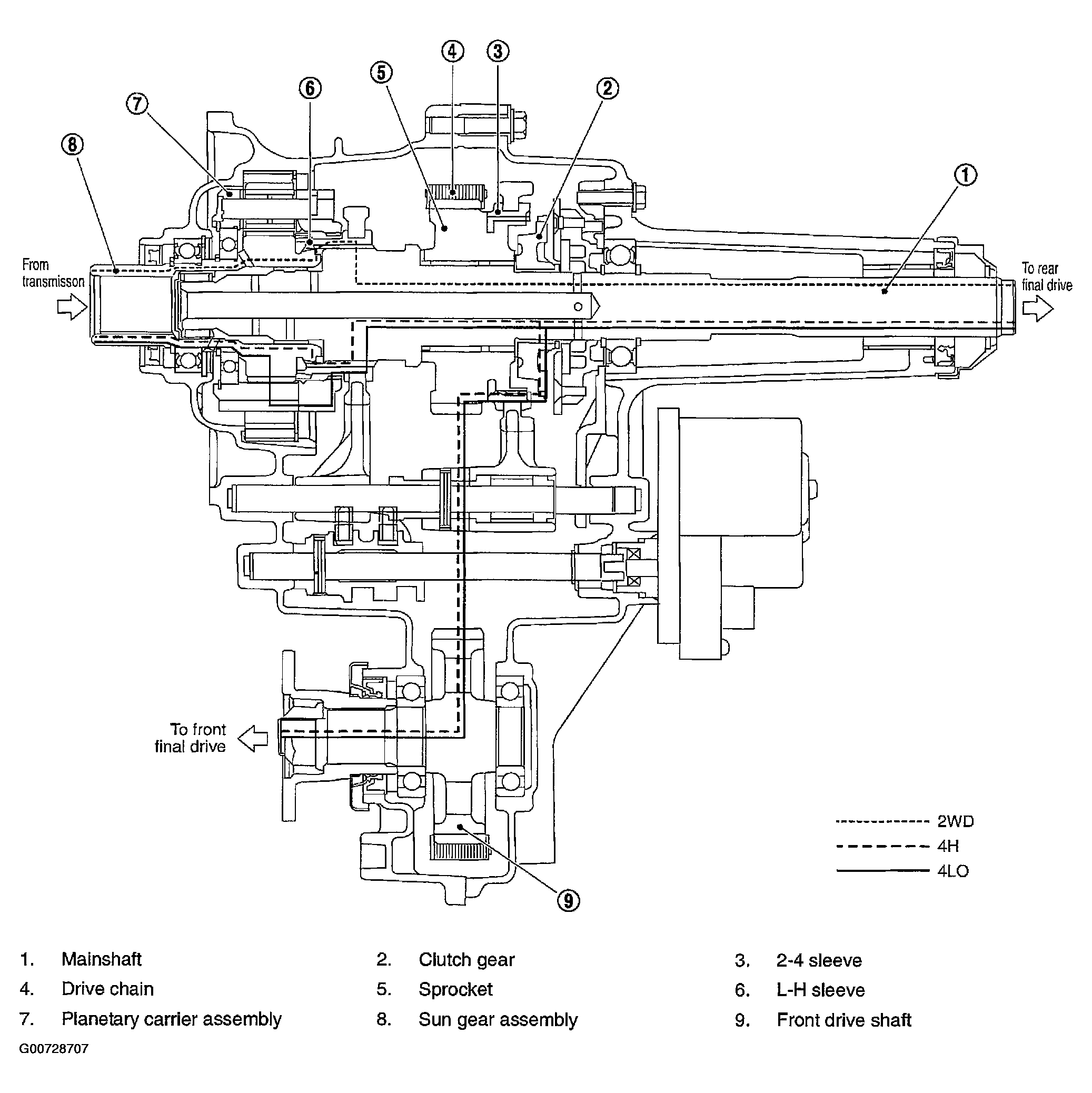

Fig 1: Power Transfer Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

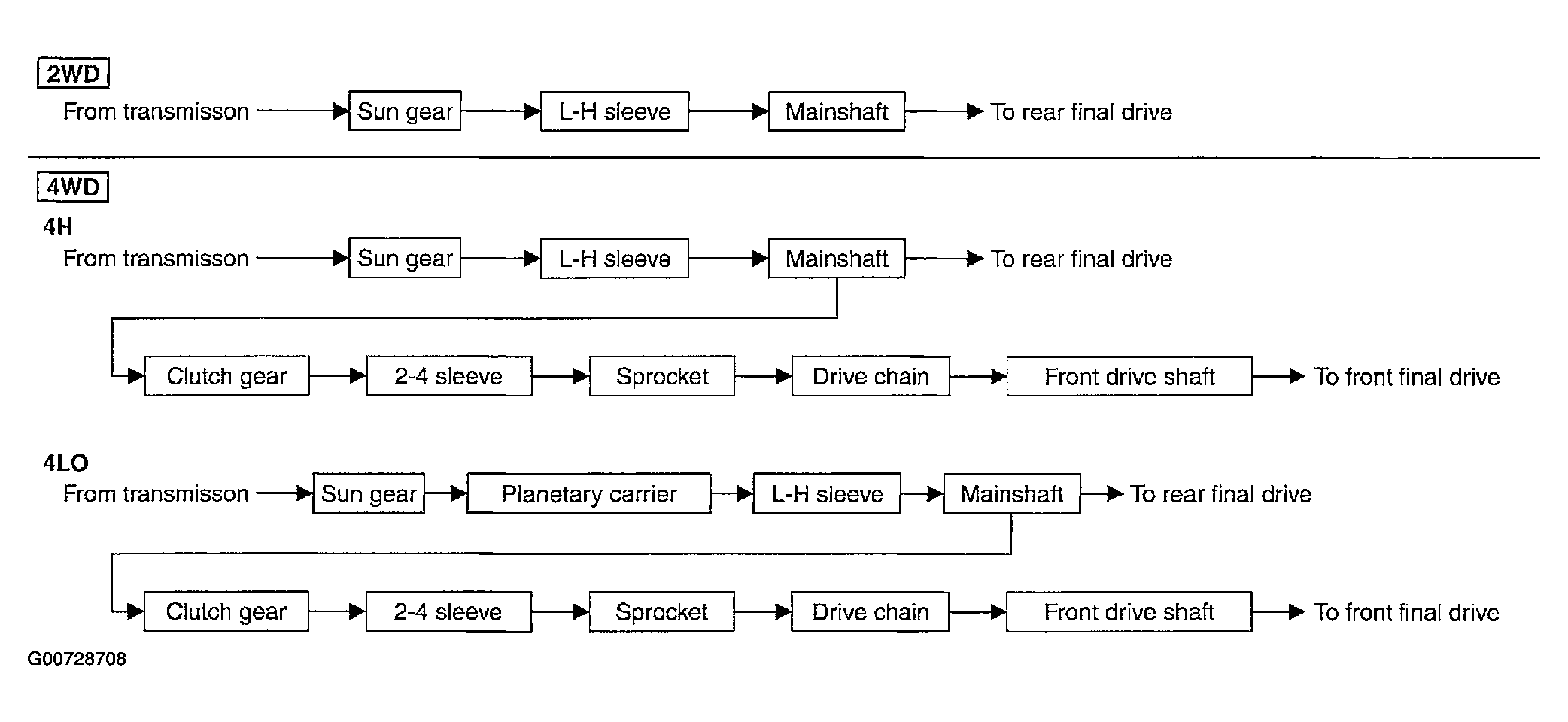

Fig 2: 2WD, 4WD Power Transfer Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
