Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to periphery of metal bushing, then install the metal bushing until it becomes "Dimension A", using drift.
1. Dimension A : 7.7 - 8.3 mm (0.303 - 0.327 in)
2. Tool number : ST35300000 (-)
CAUTION: Do not reuse metal bushing.

Fig 1: Installing NEW Metal Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply ATF to needle bearing, then install the needle bearing until it becomes "Dimension B", using drift.
1. Dimension B : 62.5 - 63.1 mm (2.461 - 2.484 in)
2. Tool number : ST33220000 (-)
CAUTION: Do not reuse needle bearing.

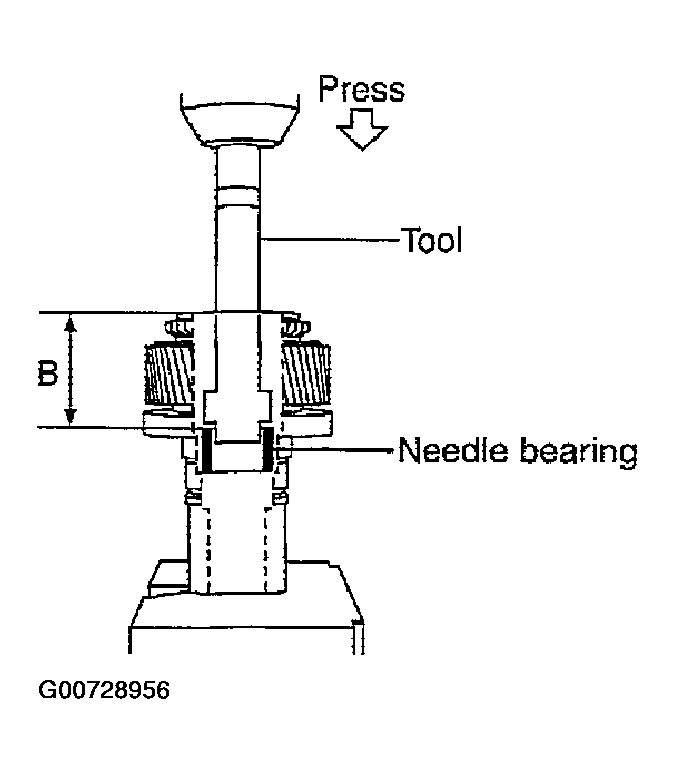

Fig 2: Installing NEW Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the carrier bearing to sun gear, using drifts.
1. Tool number A: ST30720000 (J25405)
2. B: ST27863000 (-)

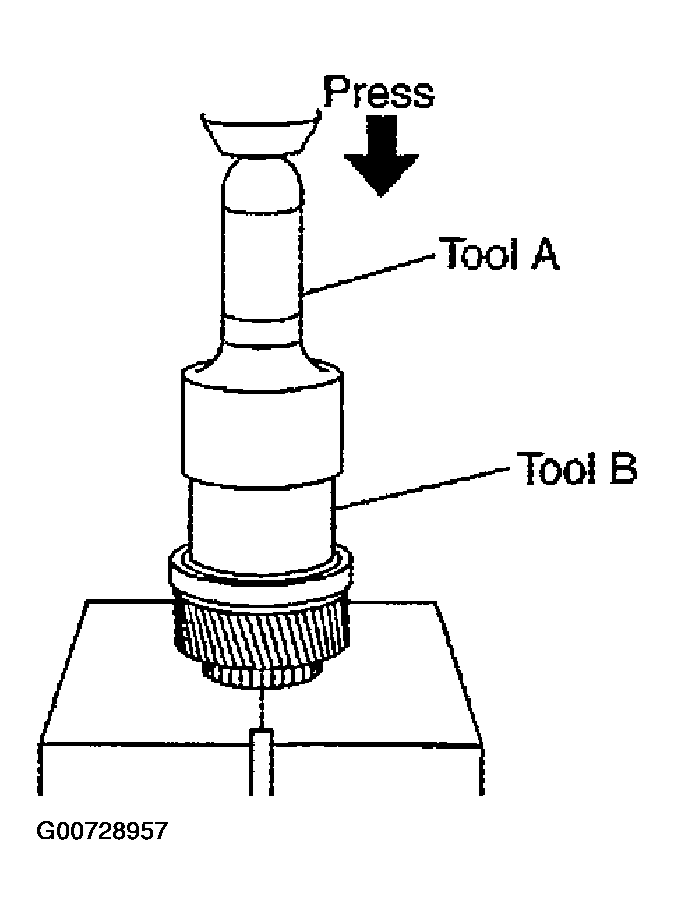

Fig 3: Installing Carrier Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to sun gear assembly.
CAUTION: Do not reuse snap ring.

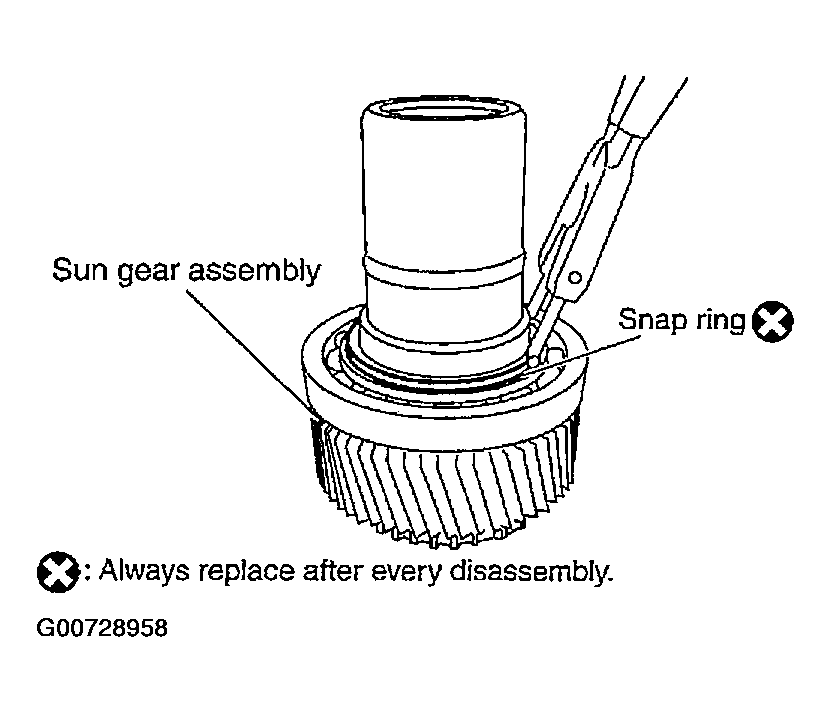

Fig 4: Installing NEW Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sun gear assembly to planetary carrier assembly.
Install snap ring to planetary carrier assembly.
CAUTION: Do not reuse snap ring.

Fig 5: Installing NEW Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.
