Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

When installing the transfer to the transmission, install the mounting bolts following the standard below.
1. Bolt length : 45 mm (1.77 in)
2. Tightening torque
3. : 36 N.m (3.7 kg-m, 26 ft-lb)
After the installation, check 4WD shift indicator pattern. If NG, adjust position between transfer assembly and transfer control unit. Refer to PRECAUTIONS FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT .
And check the fluid level and for fluid leakage.

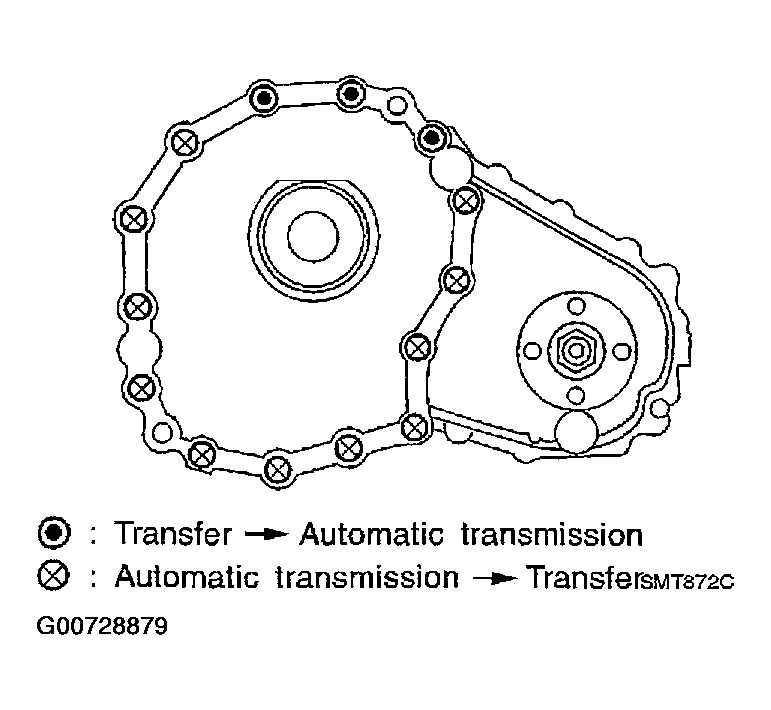

Fig 1: Installing The Mounting Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
