Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
  2. Disconnect transfer control device harness connector.
  3. Remove breather hose from transfer control device.
  4. Remove bolts and detach control device.

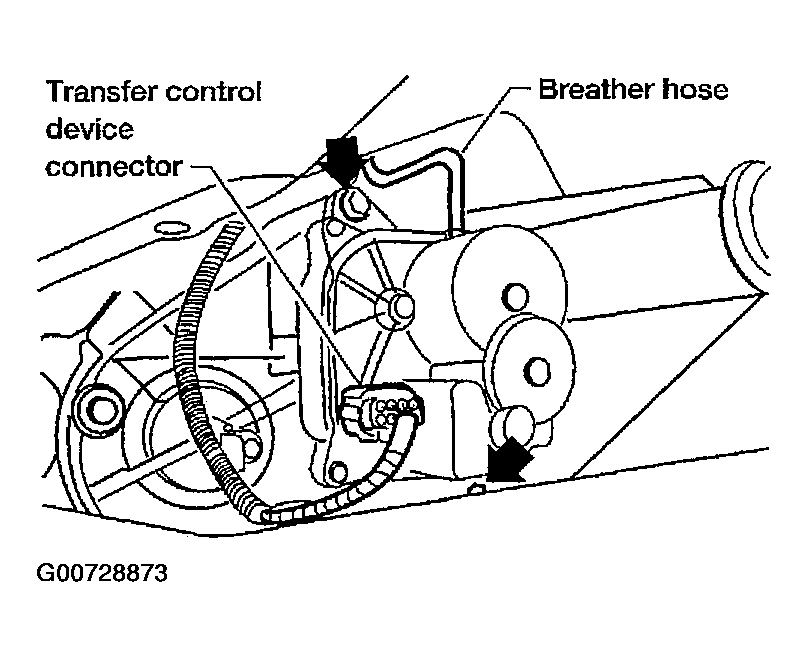

Fig 1: Identifying Transfer Control Device Harness Connector And Breather Hose
G00728873Courtesy of NISSAN MOTOR CO., U.S.A.
