Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect wait detection switch harness connector.
  3. Remove wait detection switch.
  4. Push and release wait detection switch and check continuity between wait detection switch harness connector F59 terminals 10 and 11.

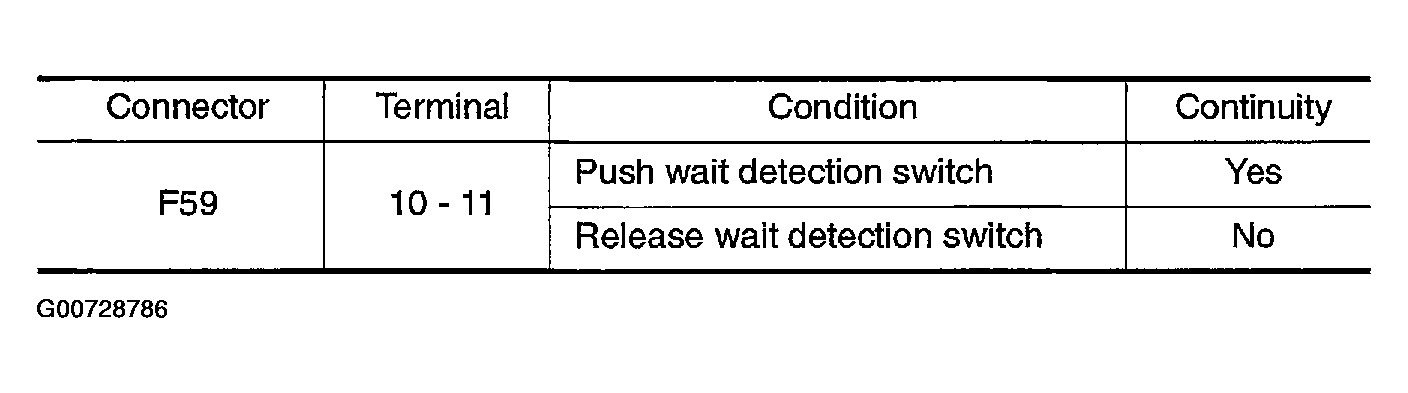

    Fig 1: Continuity Chart
    G00728786Courtesy of NISSAN MOTOR CO., U.S.A.

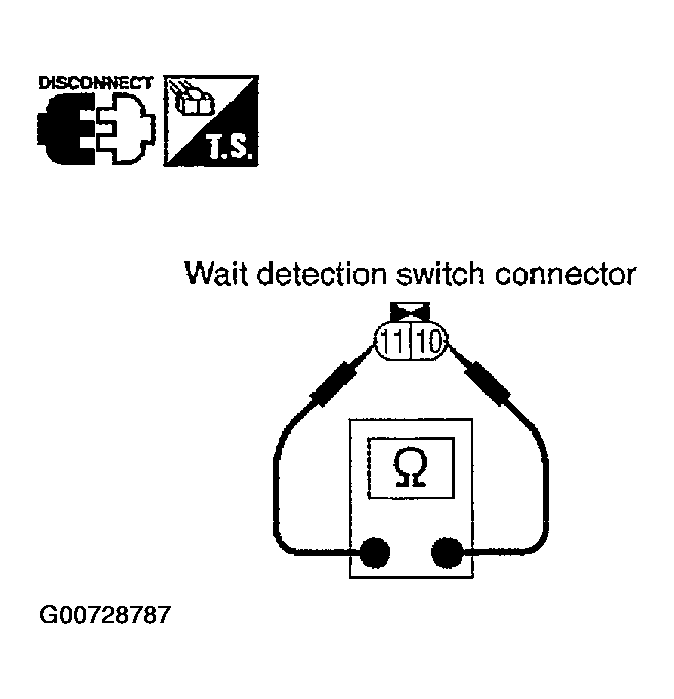

    Fig 2: Checking Continuity
    G00728787Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If NG, replace the wait detection switch.
