2. Check Load Signal Circuit Overall Function-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check "LOAD SIGNAL" indication under the following conditions.

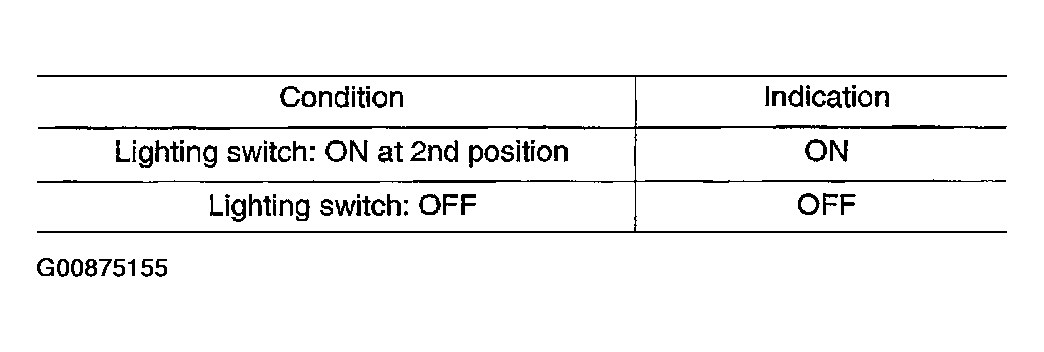

Fig 1: Test Parameters
G00875155Courtesy of NISSAN MOTOR CO., U.S.A.

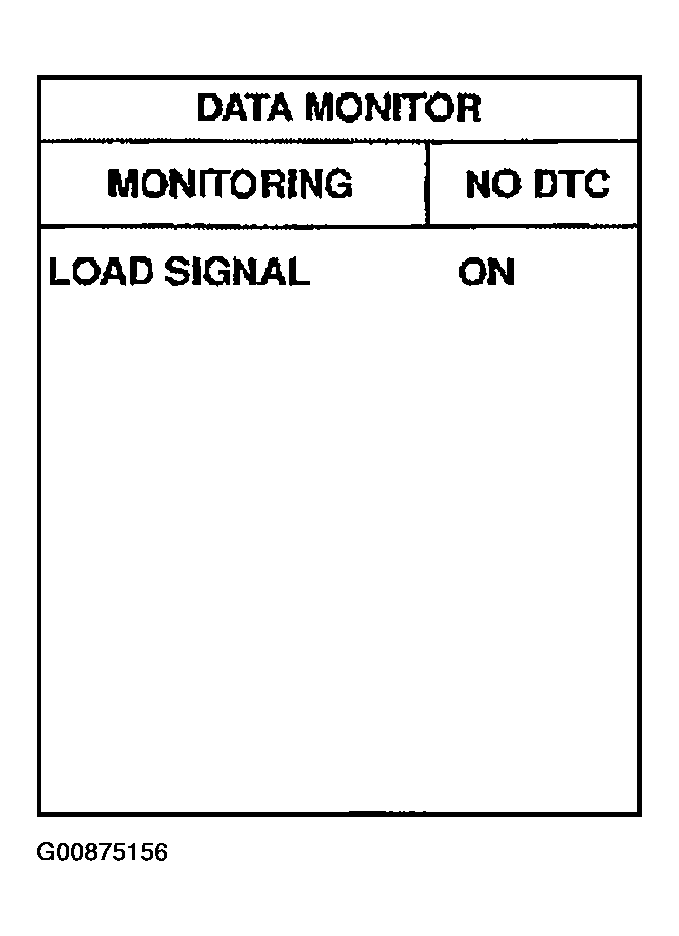

Fig 2: CONSULT-II Display Screen
G00875156Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : INSPECTION END  .
  2. NG : GO TO 4.
