Component Inspection: Condenser

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals as 1 and 2.

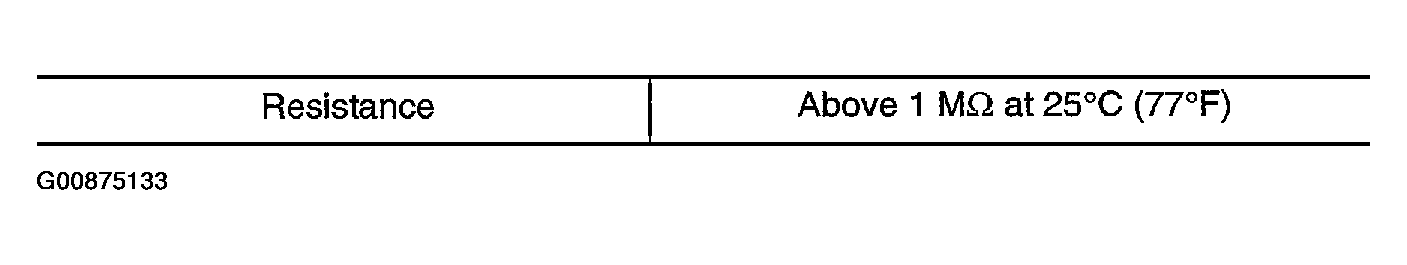

Fig 1: Resistance Specifications
G00875133Courtesy of NISSAN MOTOR CO., U.S.A.

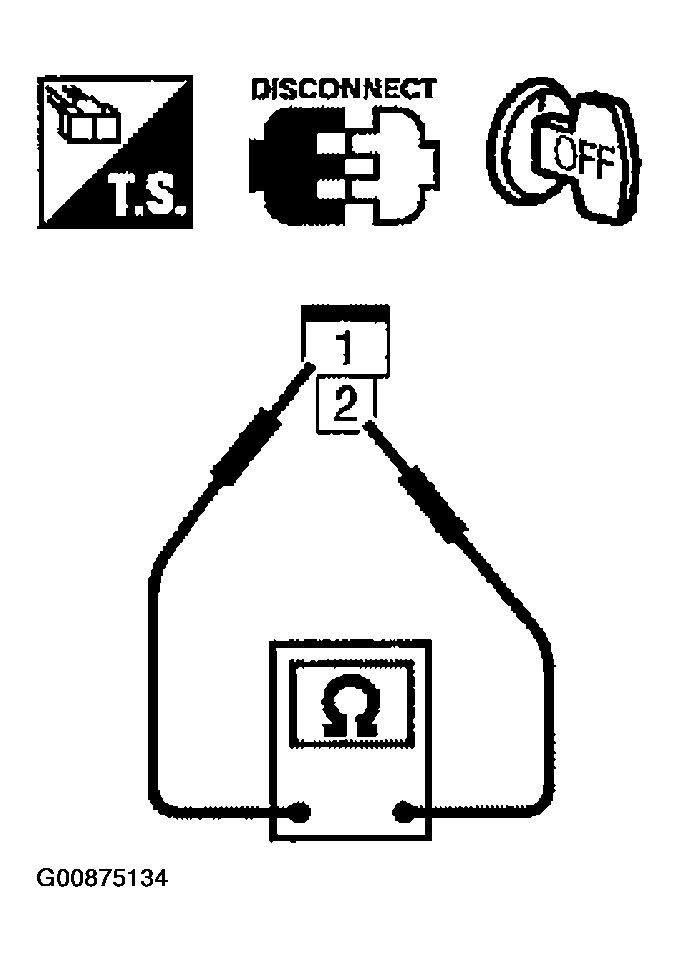

Fig 2: Check resistance
G00875134Courtesy of NISSAN MOTOR CO., U.S.A.
