Section 10 (Automatic Transaxle Re4F03B): Assembly: Assembly(1)

WARNING: This page is about a different variant/trim than selected.

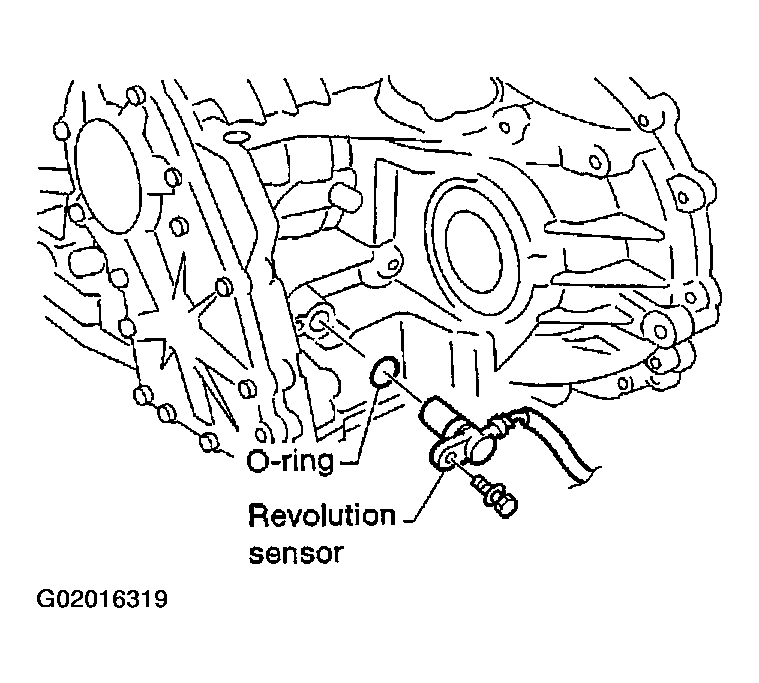

Install revolution sensor onto transmission case.
Always use new sealing parts .

Fig 1: Installing Revolution Sensor Onto Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

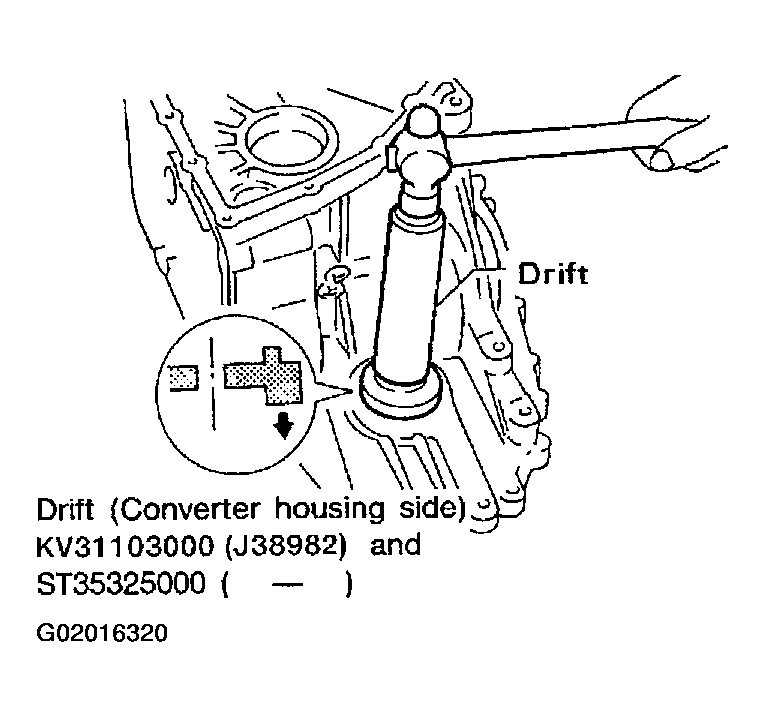

Install differential side oil seals on transmission case and converter housing, so that A and B are within specifications.

Fig 2: Installing Differential Side Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

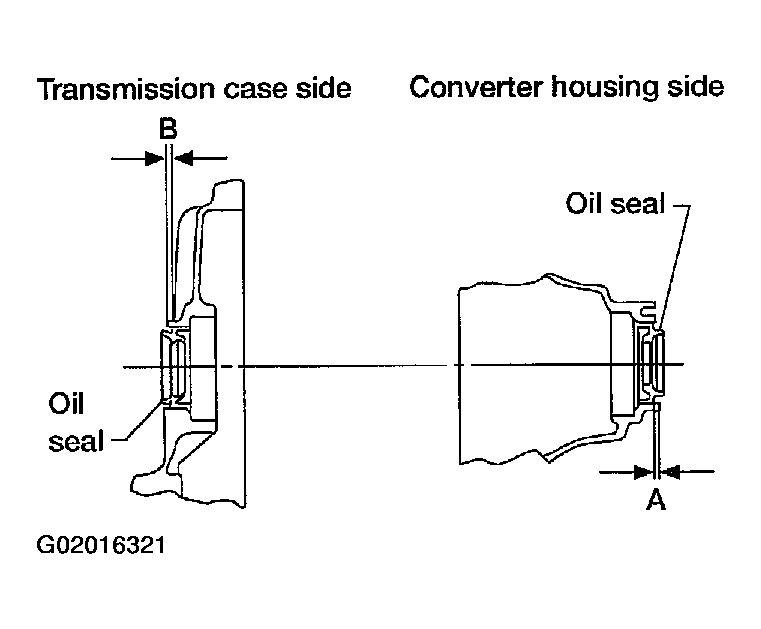

Fig 3: Identifying Oil Seal Clearance On Transmission Case & Converter Housing Side
Courtesy of NISSAN MOTOR CO., U.S.A.

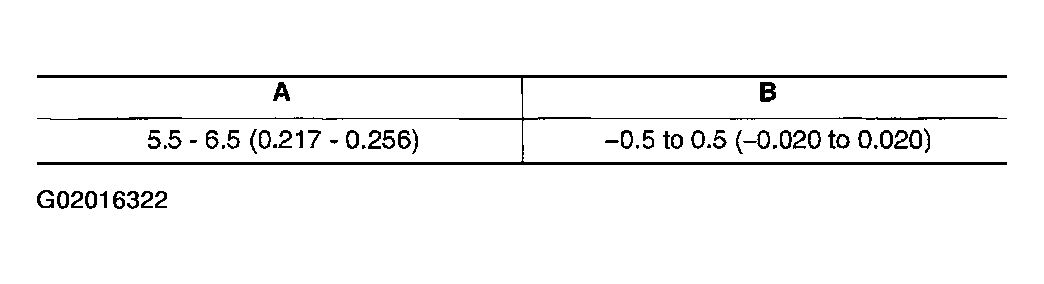

Fig 4: Oil Seal Clearance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

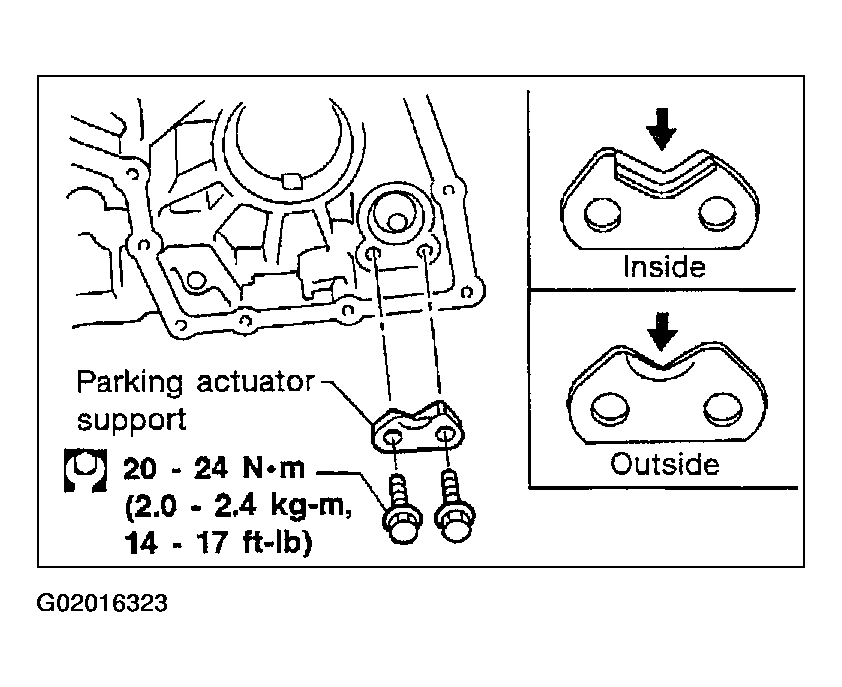

Install parking actuator support to transmission case.
- Pay attention to direction of parking actuator support .
Fig 5: Installing Parking Actuator Support To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

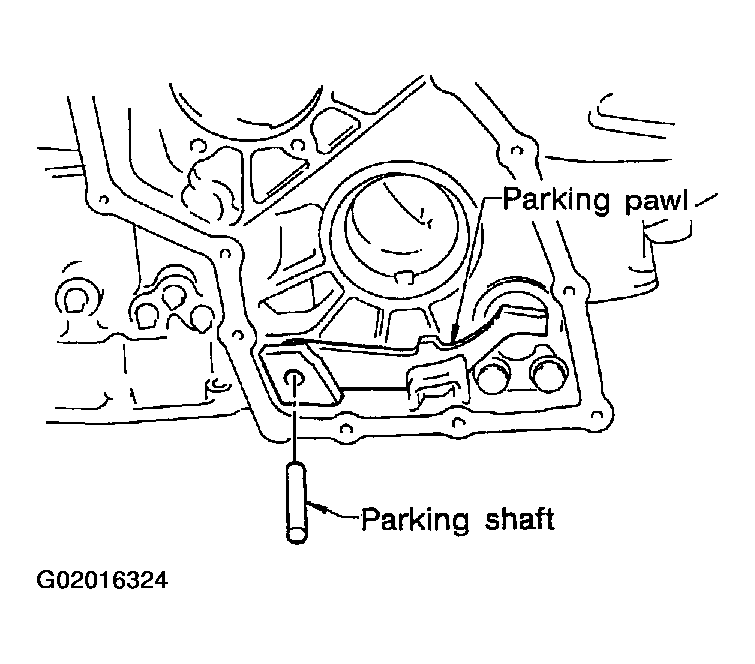

Install parking pawl on transmission case and fix it with parking shaft.

Fig 6: Installing Parking Pawl On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

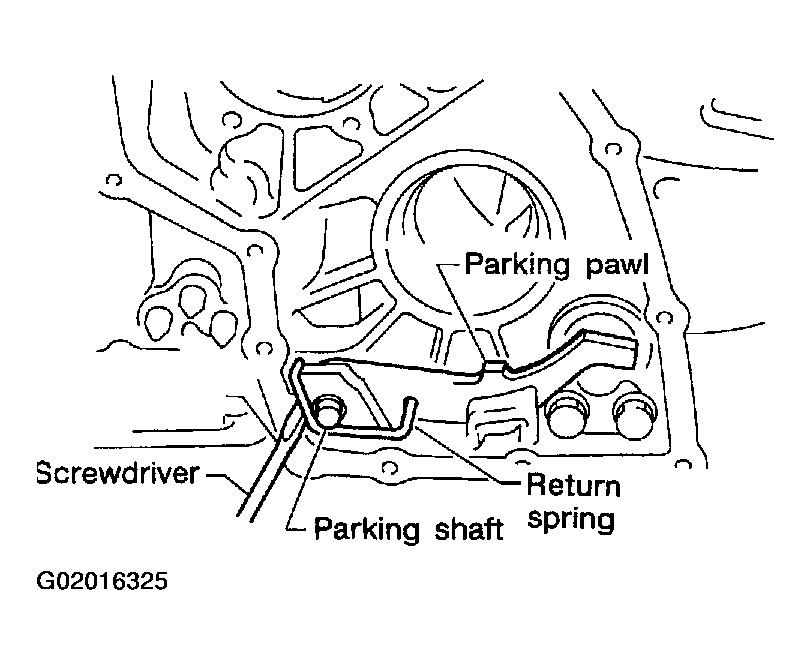

Install return spring.

Fig 7: Installing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
