High Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

Install D-ring and oil seal on piston.

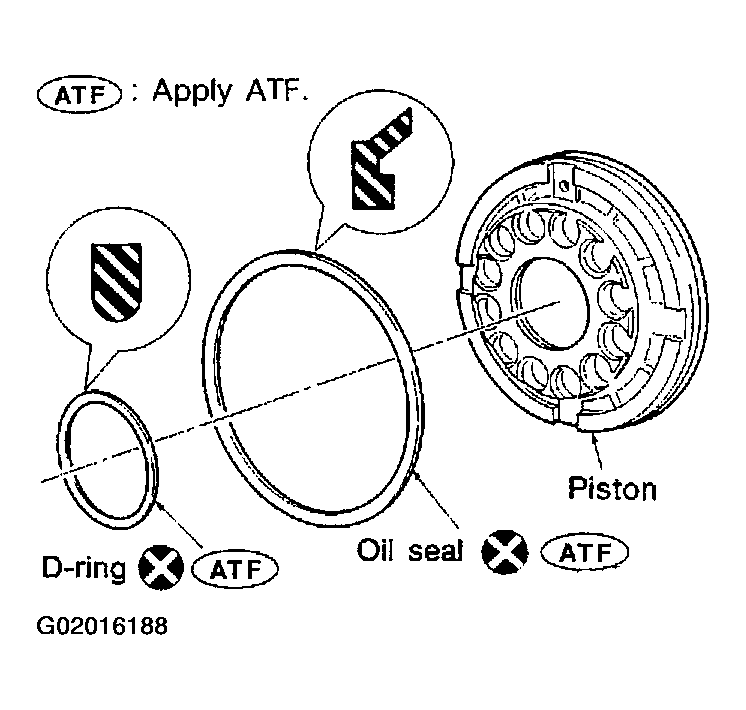

Fig 1: Installing D-Ring & Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
- Take care with the direction of the oil seal .
- Apply ATF to both parts .

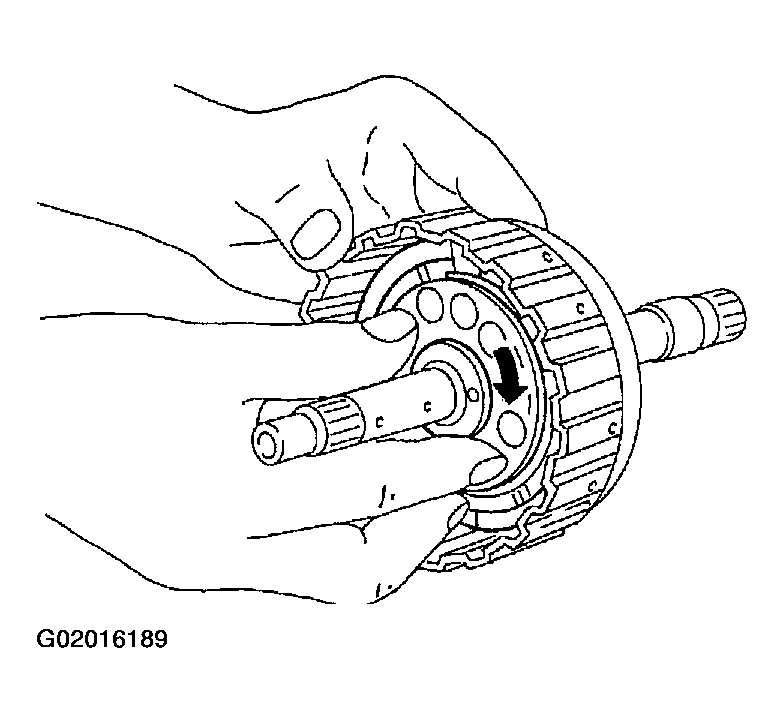

Install piston assembly by turning it slowly.

Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply ATF to inner surface of drum .

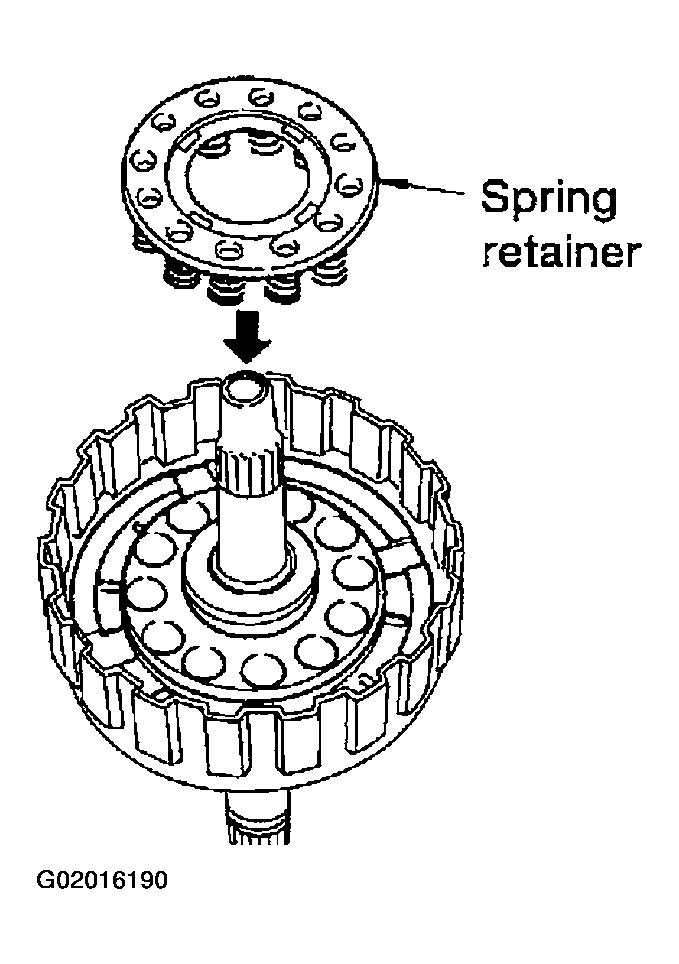

Install return springs and spring retainer on piston.

Fig 3: Installing Return Springs & Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

Return spring: Refer to CLUTCH AND BRAKE RETURN SPRINGS .

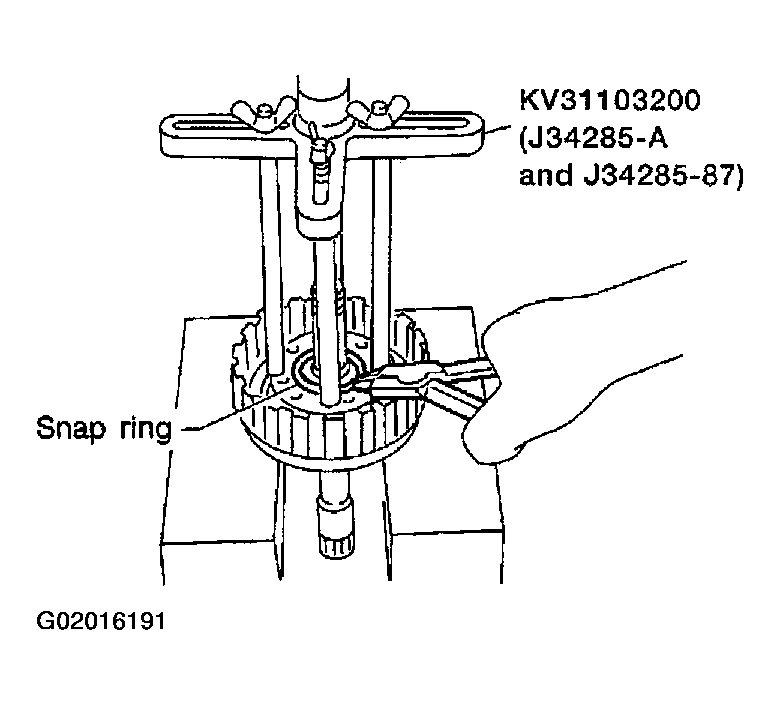

Set Tool on spring retainer and install snap ring while compressing return springs.

Fig 4: Installing Snap Ring By Compressing Return Springs
Courtesy of NISSAN MOTOR CO., U.S.A.
- Set Tool directly above return springs .

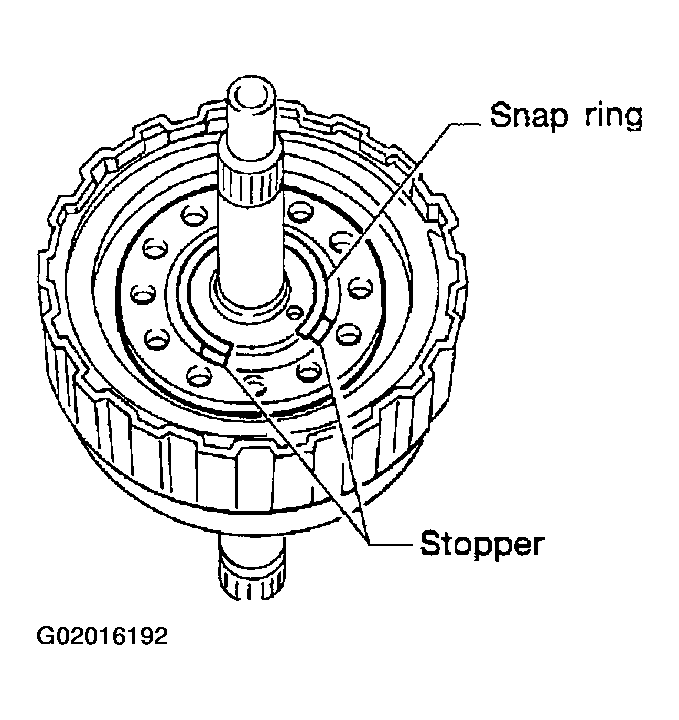

- Do not align snap ring gap with spring retainer stopper .

  Fig 5: Locating Snap Ring Gap & Spring Retainer Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates and retaining plate.
Take care with the order and direction of plates .
Install snap ring.

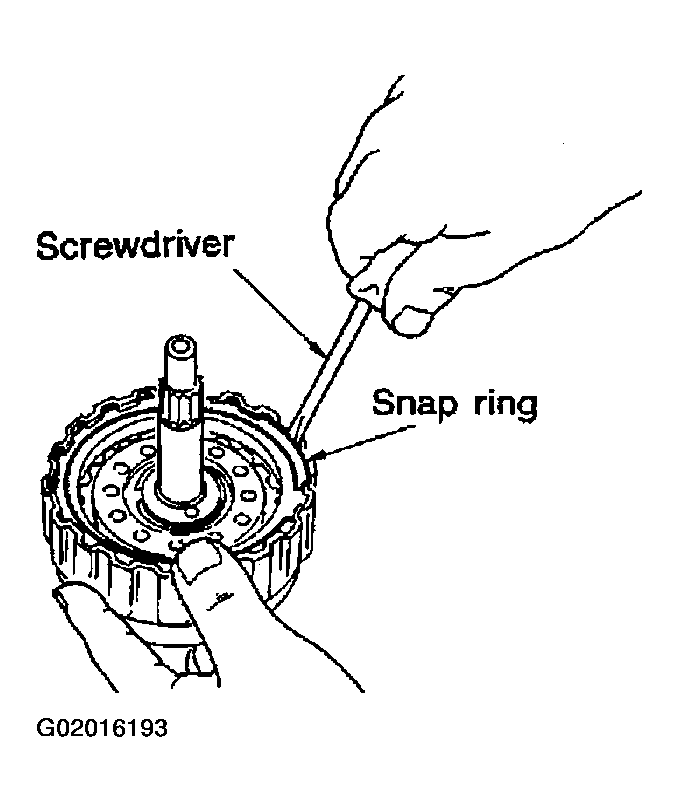

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

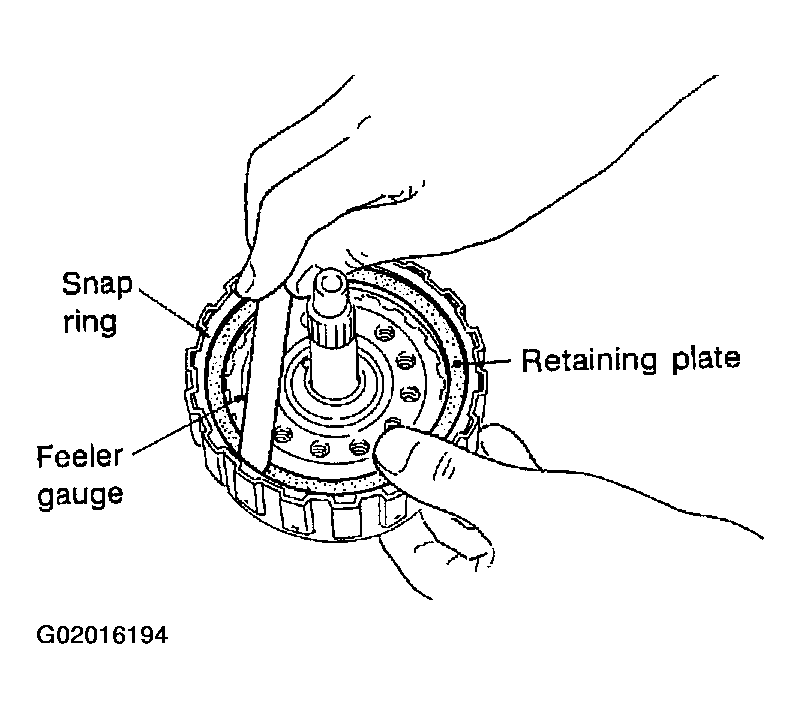

Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

Fig 7: Measuring Clearance Between Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)

Allowable limit: 2.4 mm (0.094 in)

Retaining plate: Refer to HIGH CLUTCH .
Check operation of high clutch.
Refer to HIGH CLUTCH .

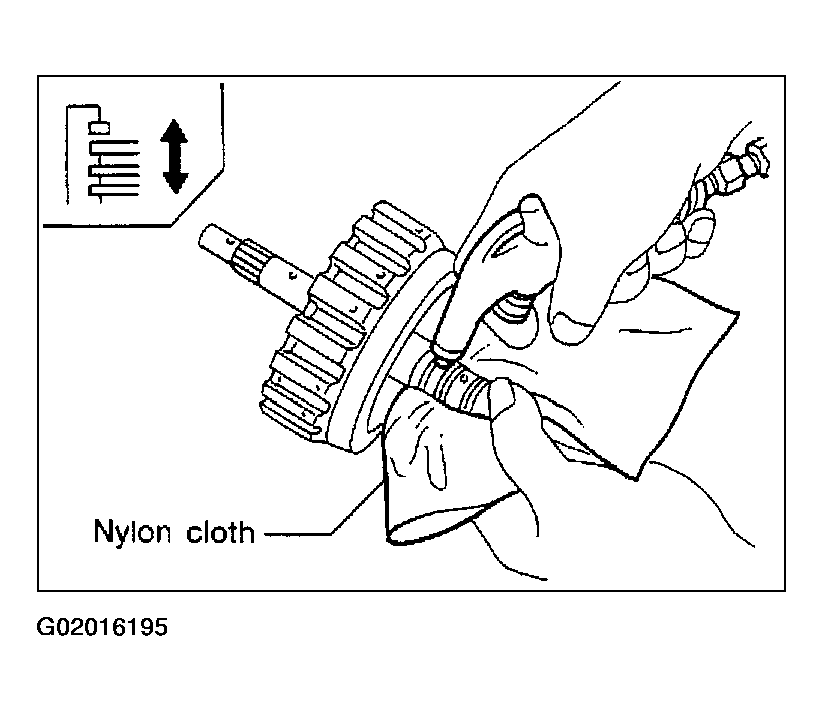

Fig 8: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.

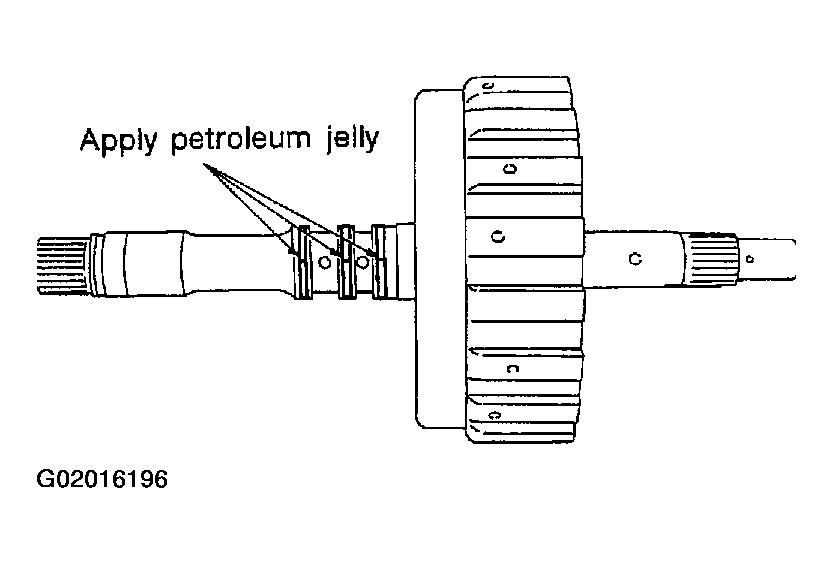

Install seal rings to input shaft.
- Apply petroleum jelly to seal rings .

  Fig 9: Installing Seal Rings To Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.

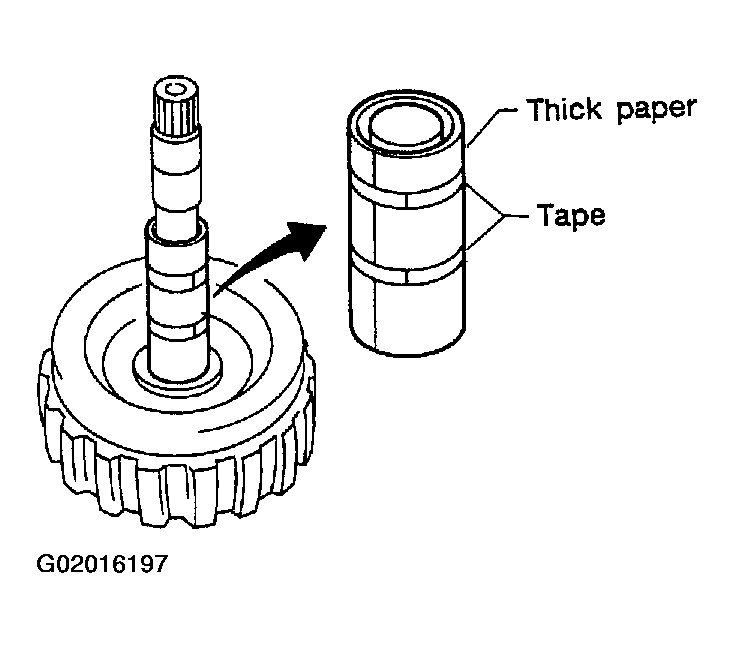

- Roll paper around seal rings to prevent seal rings from spreading .

  Fig 10: Identifying Paper Roll Support For Seal Bearing
  Courtesy of NISSAN MOTOR CO., U.S.A.
