Control Valve Assembly and Accumulators: Installation

WARNING: This page is about a different variant/trim than selected.

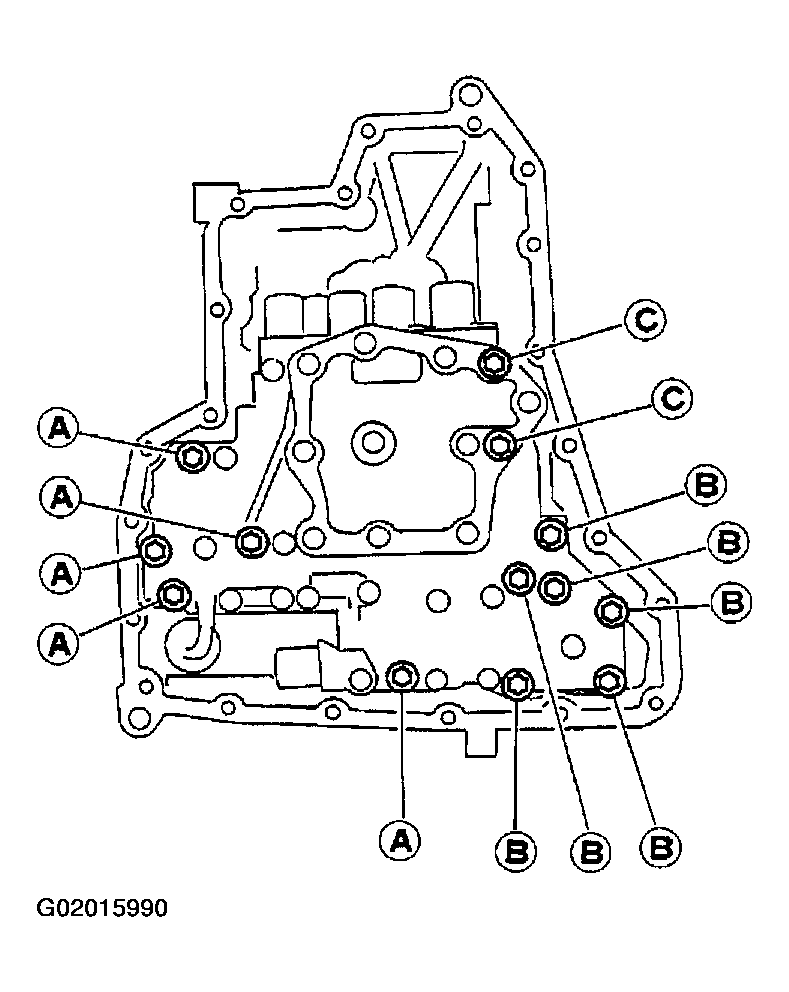

Tighten mounting bolts A, B and C to specification .
1. : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
Fig 1: Tightening Control Valve Assembly Mounting Bolts A, B & C
Courtesy of NISSAN MOTOR CO., U.S.A.

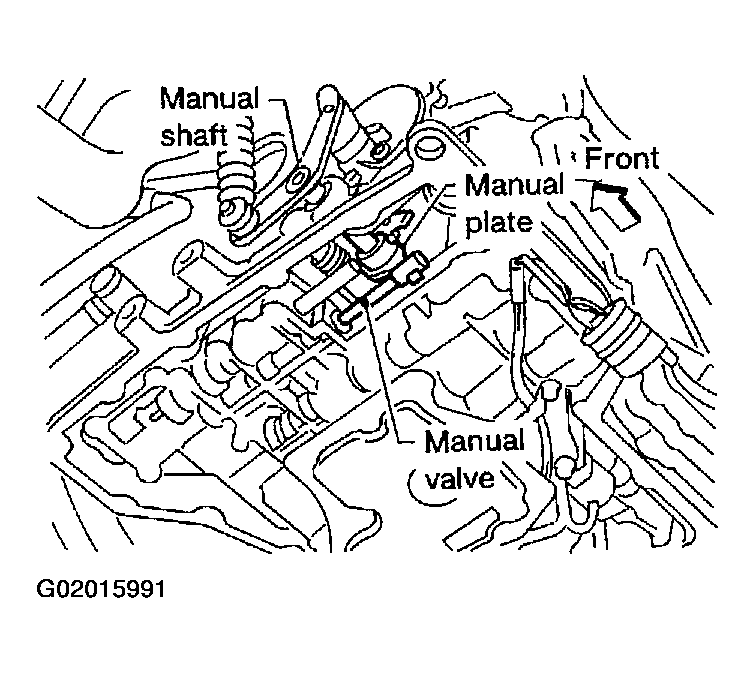

Set manual shaft in Neutral position, then align manual plate with groove in manual valve .

Fig 2: Setting Manual Shaft In Neutral Position
Courtesy of NISSAN MOTOR CO., U.S.A.
After installing control valve assembly to transmission case, make sure that selector lever can be moved to all positions .
