Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before separating transaxle from engine, remove the crankshaft position sensor (OBD) from transaxle. Be careful not to damage sensor.

Remove battery and bracket.
Remove air duct between throttle body and air cleaner.
Disconnect terminal cord assembly, PNP switch harness connector and revolution sensor harness connector.

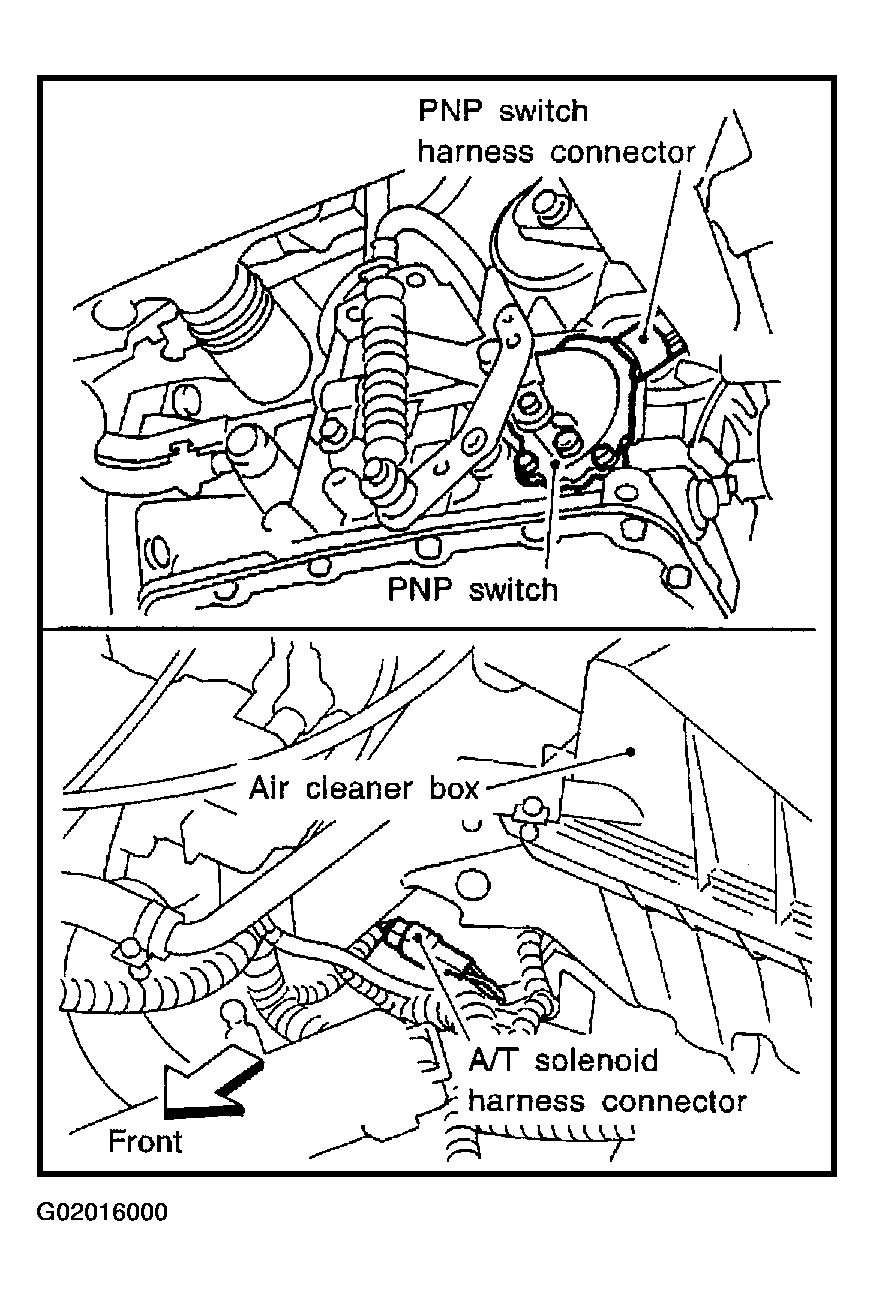

Fig 1: Disconnecting PNP Switch Harness Connector & Revolution Sensor Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Drain ATF from transaxle.

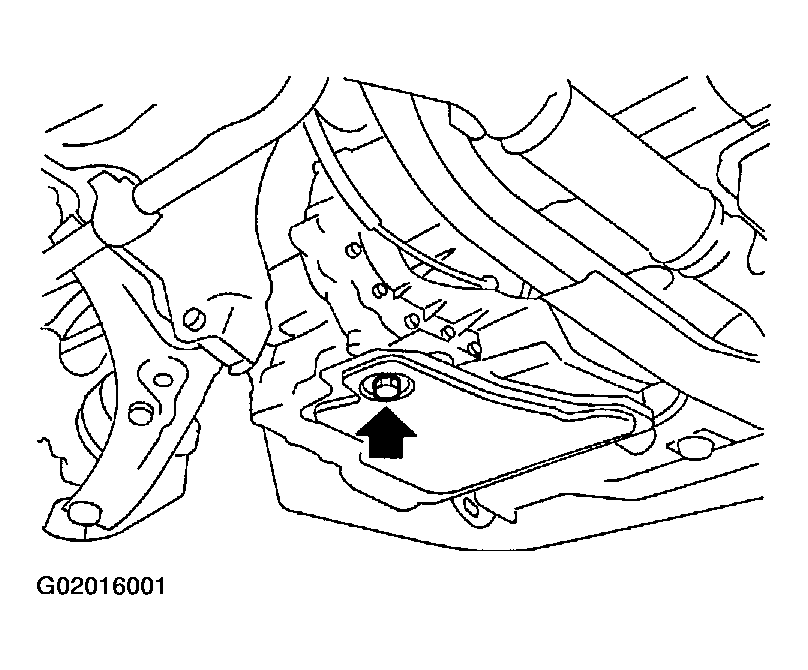

Fig 2: Removing Oil Pan Drain Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect control cable from transaxle.
Disconnect oil cooler hoses.
Remove drive shafts. Refer to REMOVAL, OVERHAUL & INSTALLATION .
Remove the intake manifold support bracket. Refer to REMOVAL AND INSTALLATION .
Remove starter motor from transaxle.
Tighten bolts to specified torque .
1. : 33.3 - 46.1 N.m (3.4 - 4.7 kg-m, 25 - 34 ft-lb)
Remove upper bolts fixing transaxle to engine.

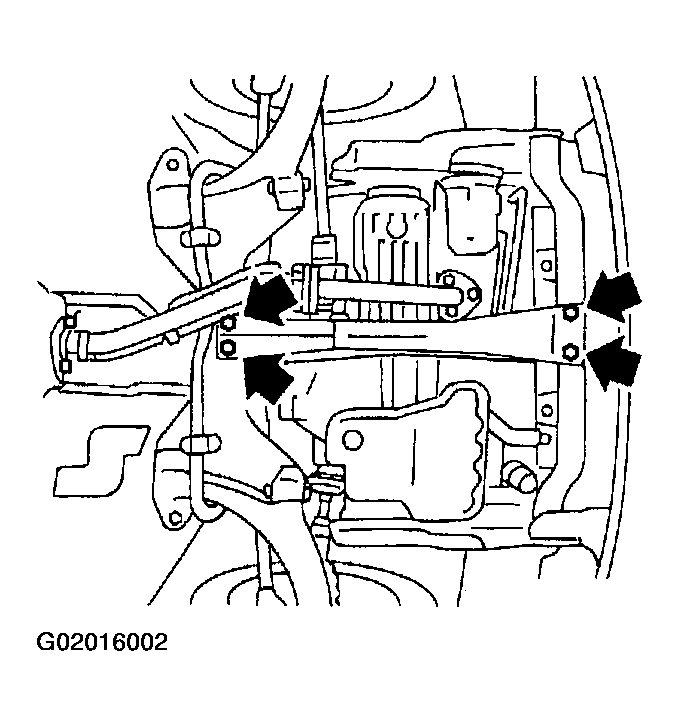

Fig 3: Removing Upper Bolts Fixing Transaxle To Engine
Courtesy of NISSAN MOTOR CO., U.S.A.
Support transaxle with a jack.
Remove center member.
- Tighten center member fixing bolts to specified torque, Refer to INSTALLATION .
Remove rear plate cover.
Remove torque converter bolts.

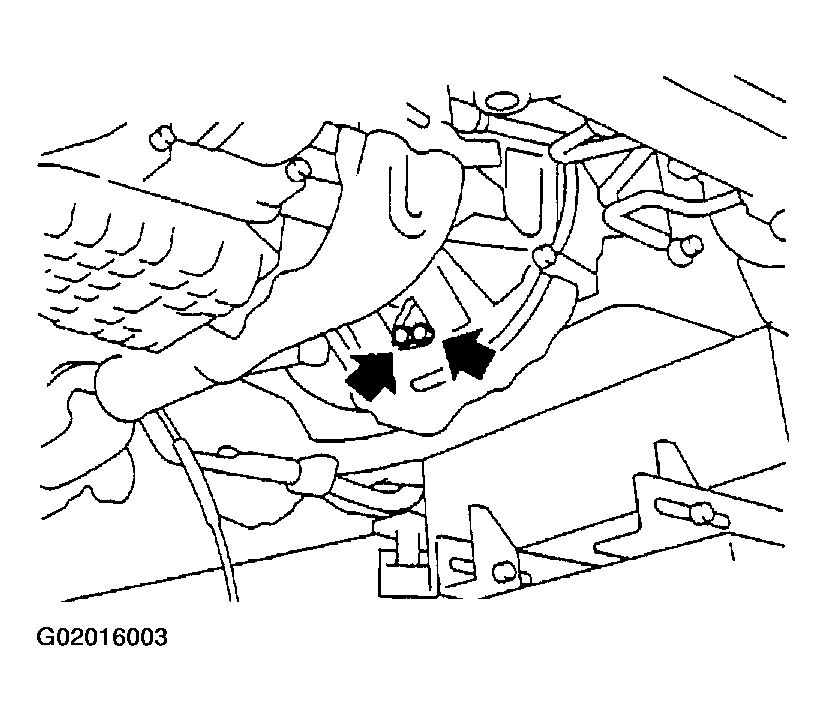

Fig 4: Removing Torque Converter Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Rotate crankshaft to gain access to securing bolts.
Remove rear transaxle to engine bracket. Refer to REMOVAL .
Support engine with a jack.
Remove rear transaxle mount. Refer to REMOVAL .
Remove lower bolts fixing transaxle to engine.
Lower transaxle while supporting it with a jack.
