Reverse Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

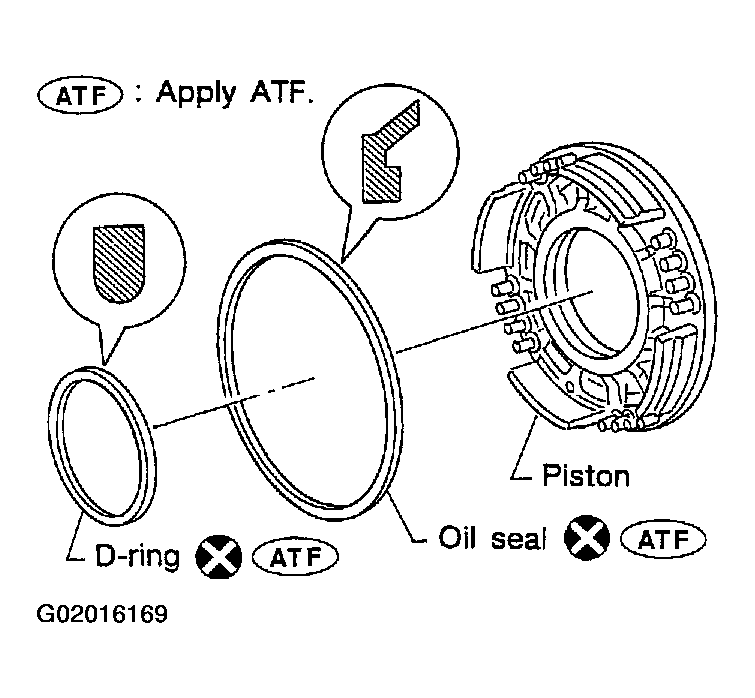

Install D-ring and oil seal on piston.

Fig 1: Installing D-Ring & Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
- Take care with the direction of the oil seal .
- Apply ATF to both parts .

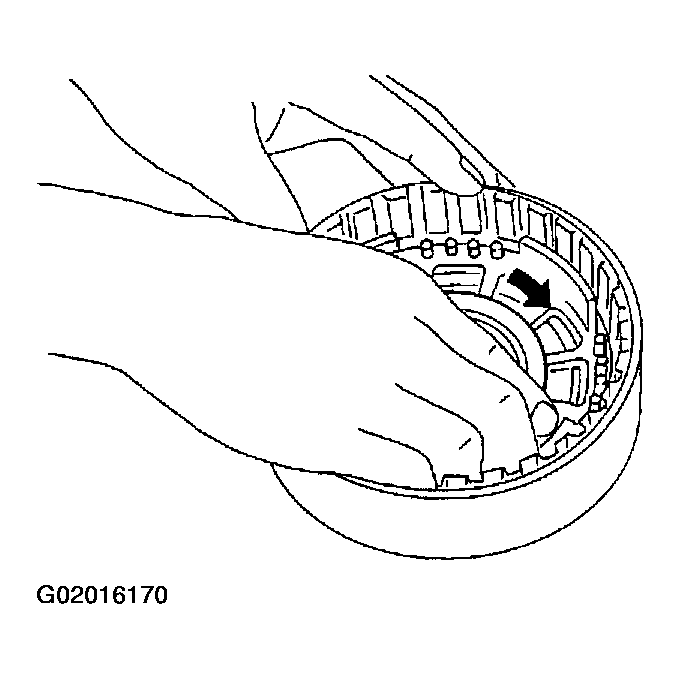

Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum .
Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

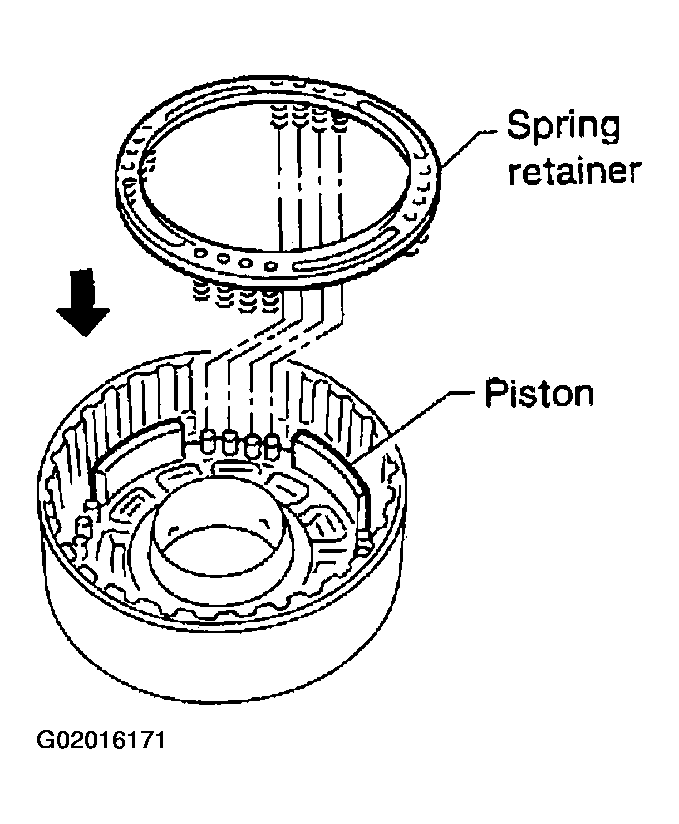

Install return springs and spring retainer on piston.
Return spring: Refer to CLUTCH AND BRAKE RETURN SPRINGS .

Fig 3: Installing Return Springs & Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

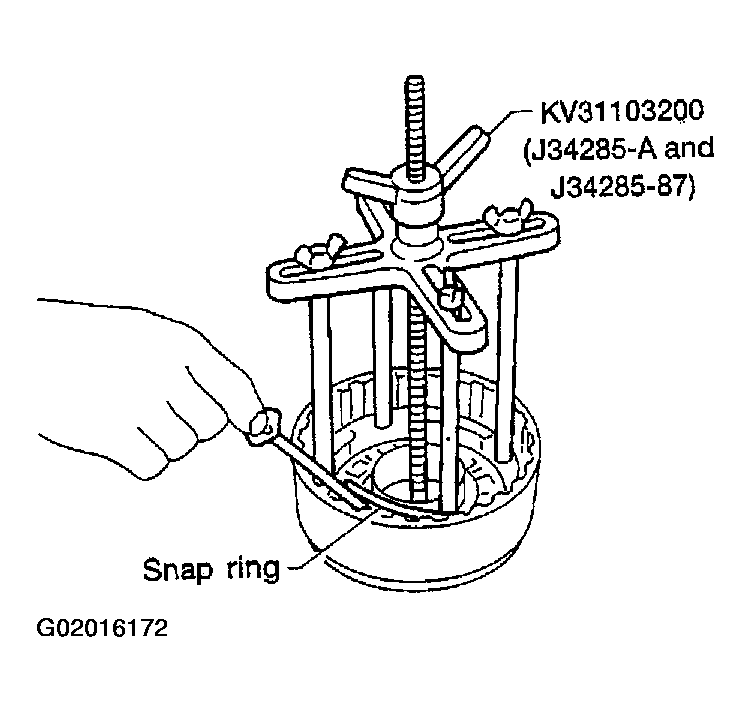

Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly above return springs .
Fig 4: Installing Snap Ring By Compressing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

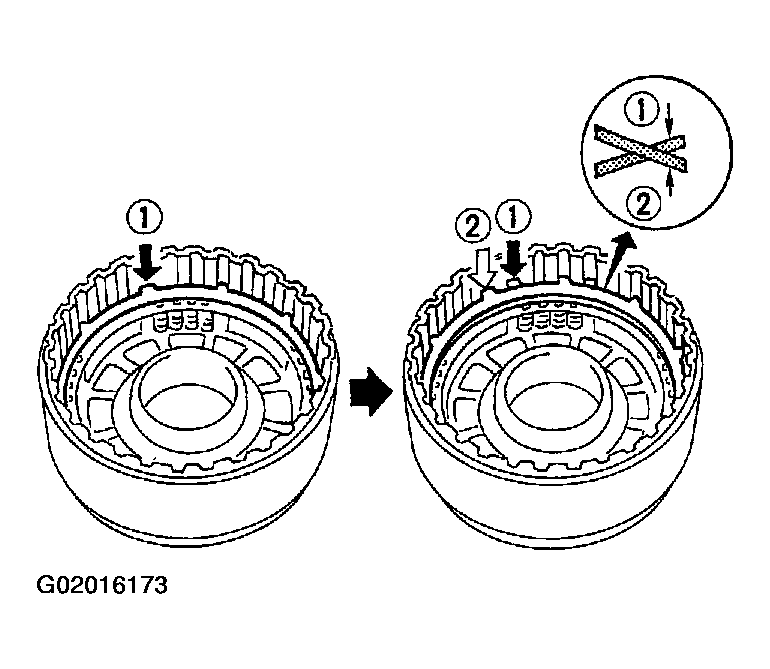

Install drive plates, driven plates, retaining plate and dish plates.
- Do not align the projections of any two dish plates .
- Take care with the order and direction of plates .
Fig 5: Identifying Dish Plate Projection Alignment
Courtesy of NISSAN MOTOR CO., U.S.A.

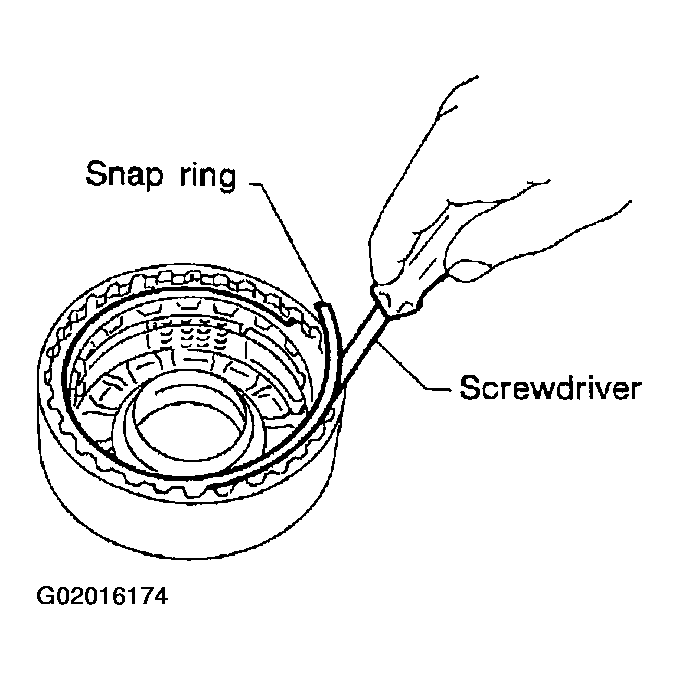

Install snap ring.

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

Fig 7: Measuring Clearance Between Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit: 1.2 mm (0.047 in)

Retaining plate: Refer to REVERSE CLUTCH

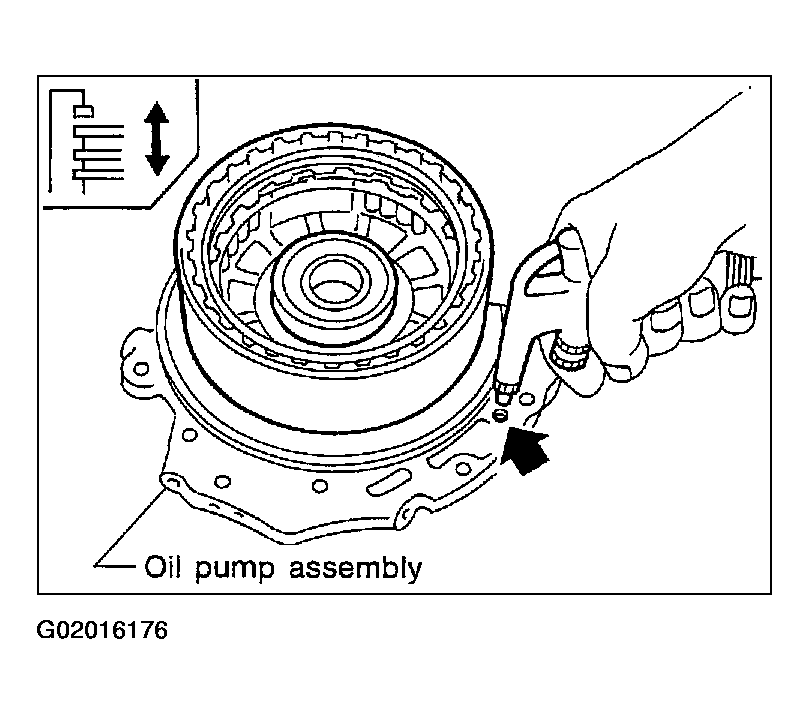

Check operation of reverse clutch.
Refer to COMPONENTS .

Fig 8: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
