Diagnostic Worksheet: Overview
WARNING:
This page is about a different variant/trim than selected.

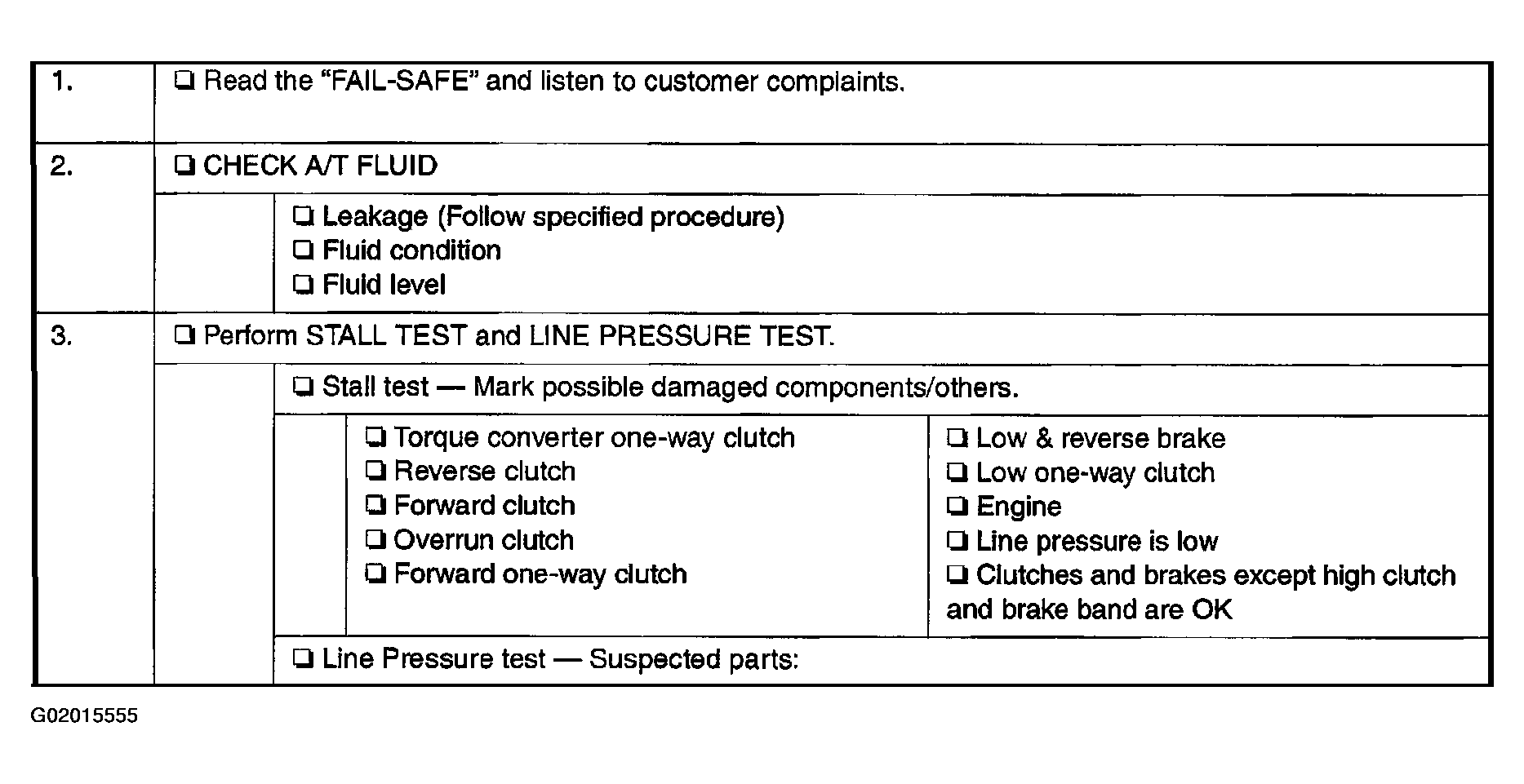

Fig 1: Diagnostic Worksheet (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Diagnostic Worksheet (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

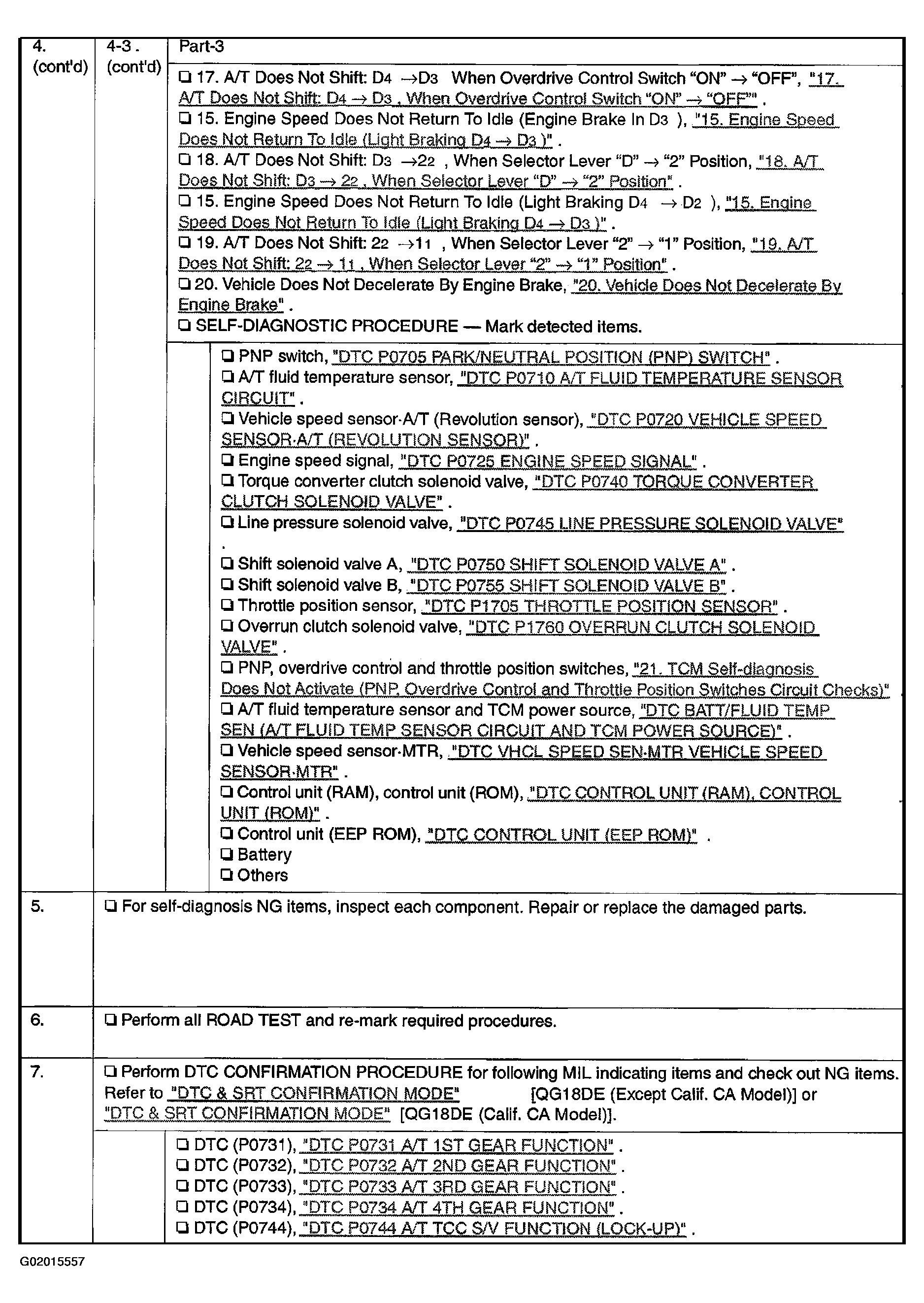

Fig 3: Diagnostic Worksheet (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

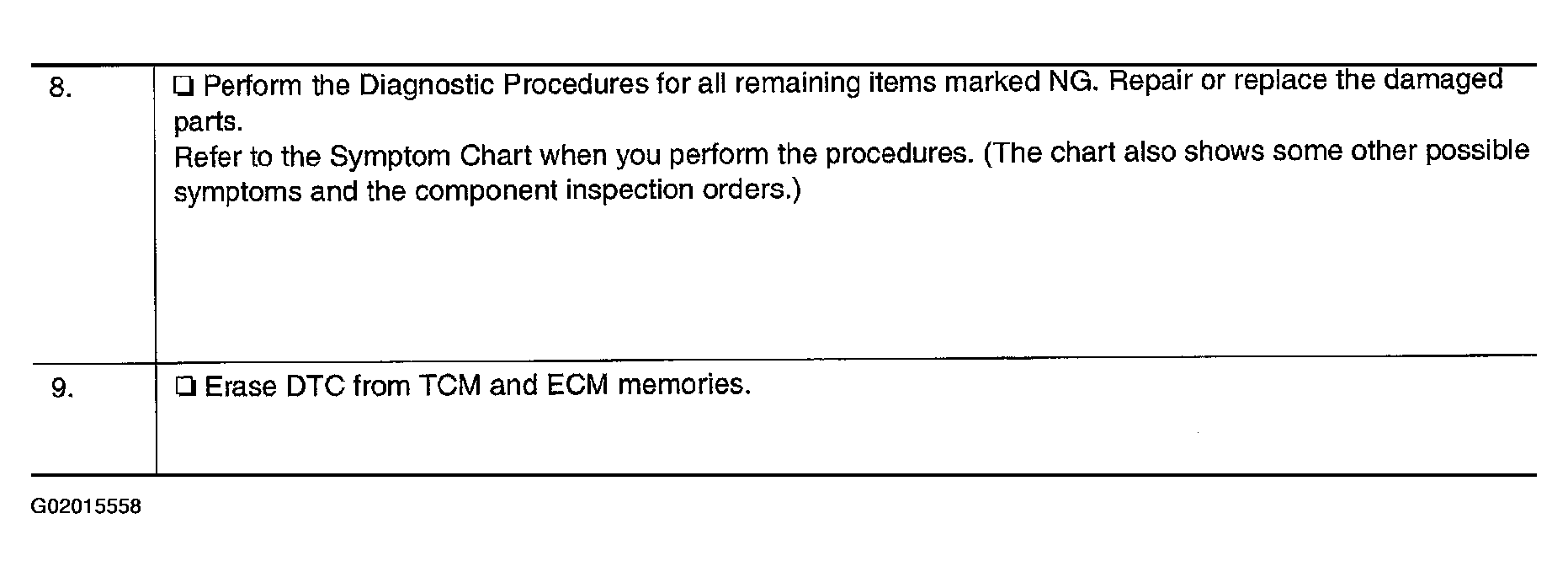

Fig 4: Diagnostic Worksheet (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
