Power Steering Gear And Linkage: Components

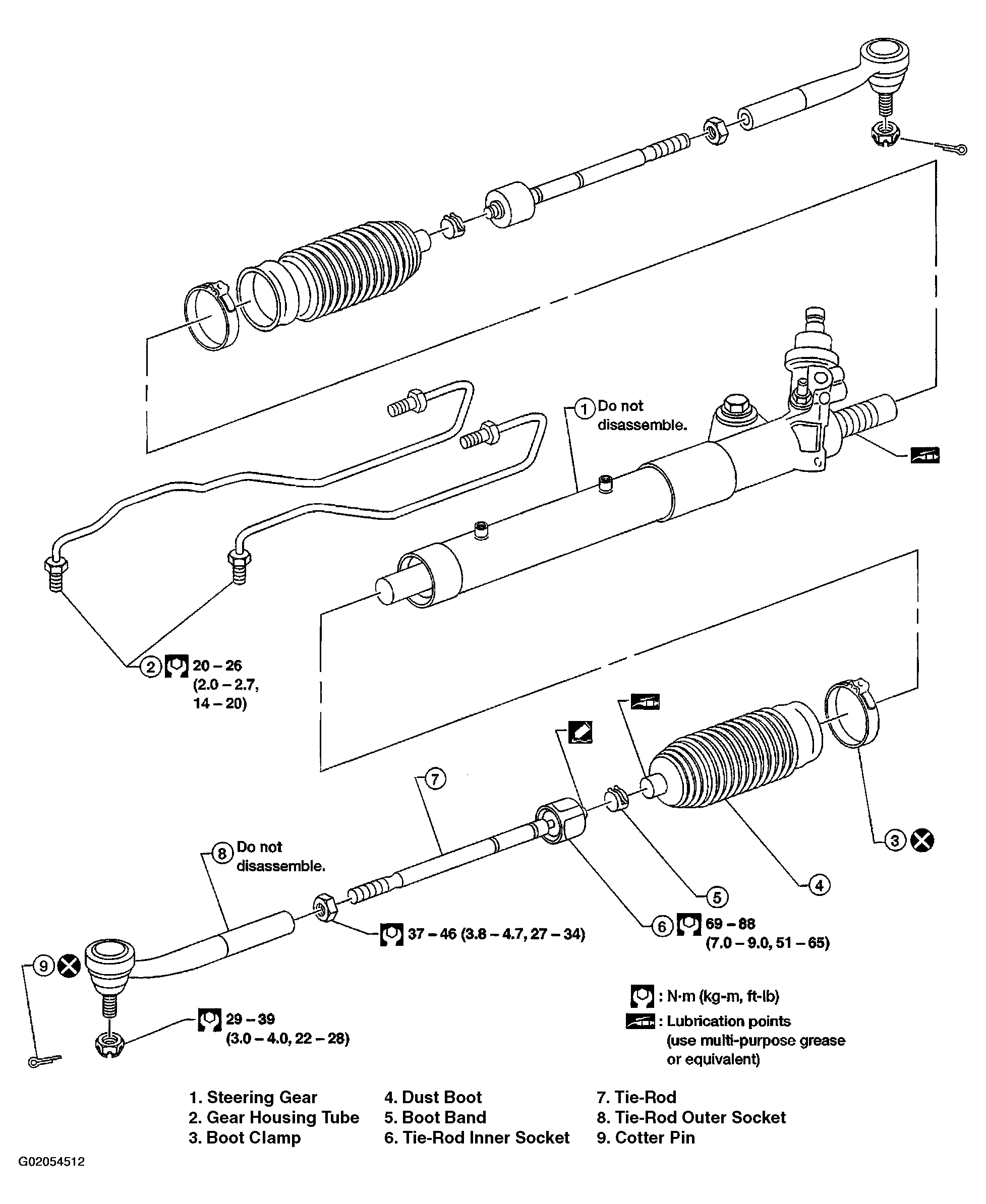

Fig 1: Exploded View Of Power Steering Gear And Linkage
G02054512Courtesy of NISSAN MOTOR CO., U.S.A.
