Stop Lamp Switch

Check continuity between terminals + and -.

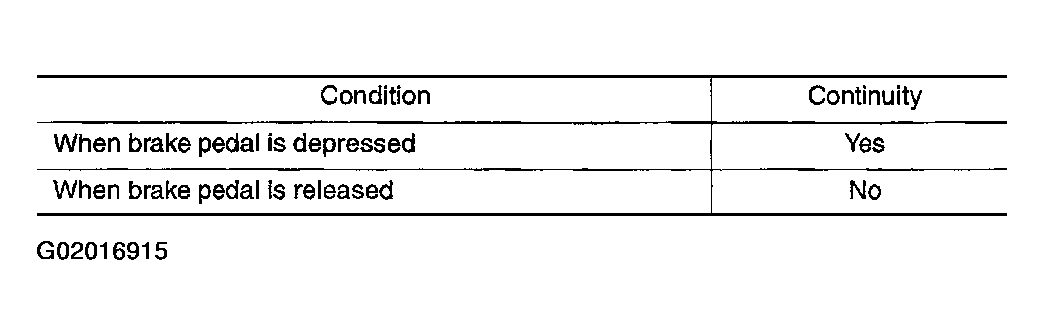

Fig 1: Stop Lamp Switch Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

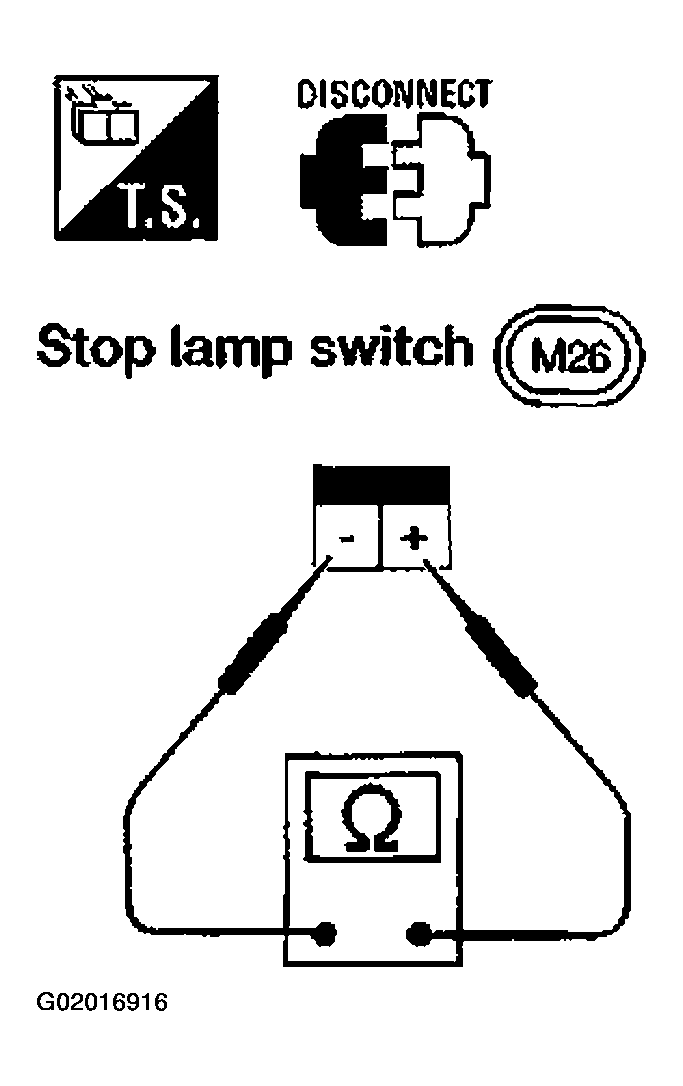

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal - refer to STOPLIGHT SWITCH & AUTOMATIC SPEED CONTROL DEVICE .
