With Consult-II

Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

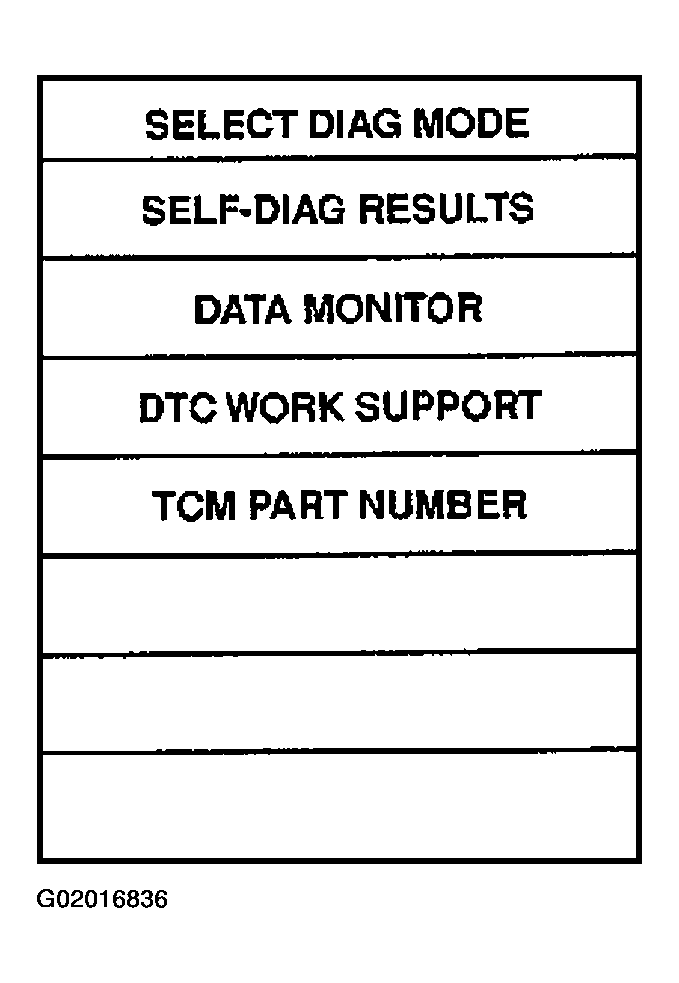

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Run engine for at least 2 seconds at idle speed.

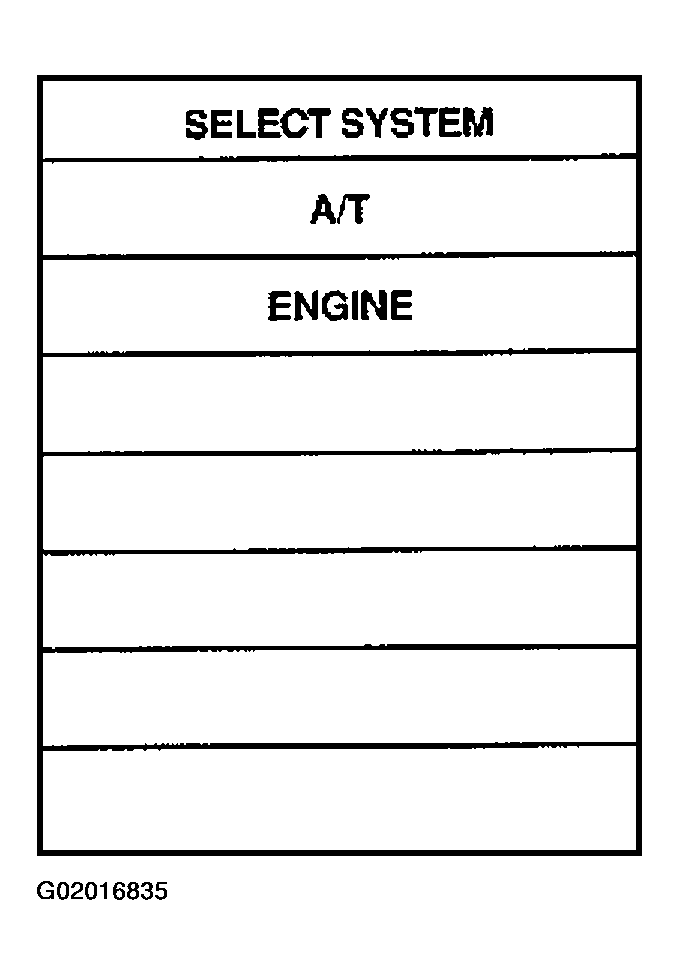

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
