DTC P0710 A/T Fluid Temperature Sensor Circuit: Description: Notes

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

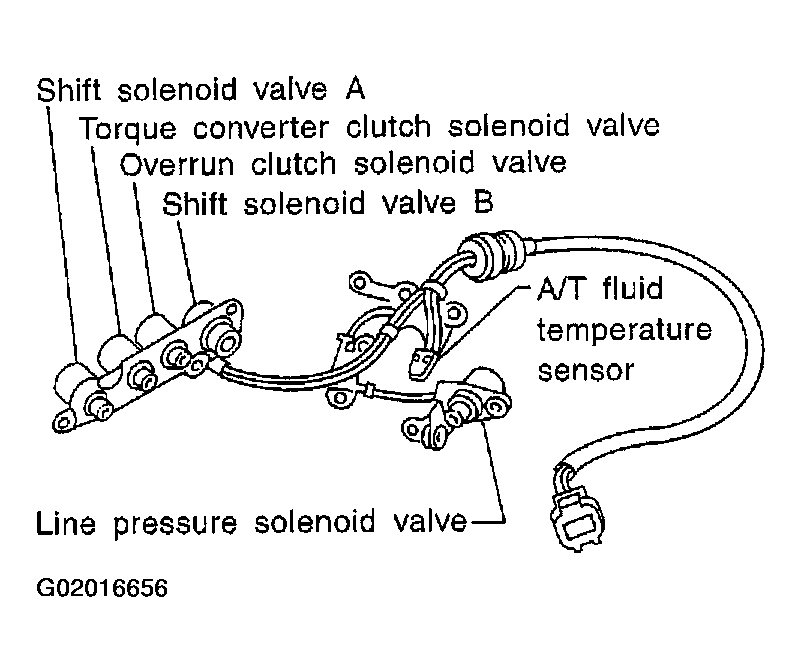

Fig 1: Identifying Automatic Transaxle Fluid Temperature Sensor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

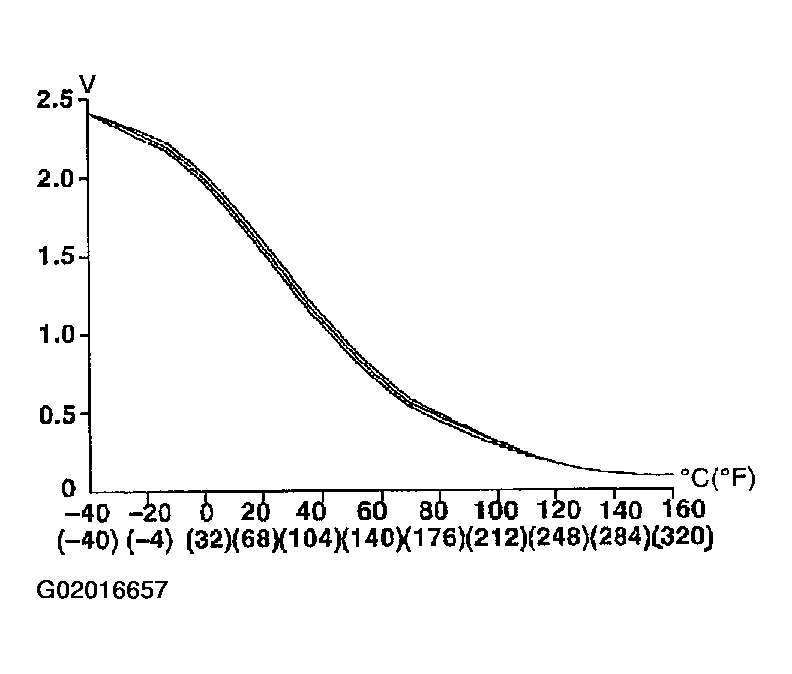

Fig 2: Automatic Transaxle Fluid Temperature Sensor Signal Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
