Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

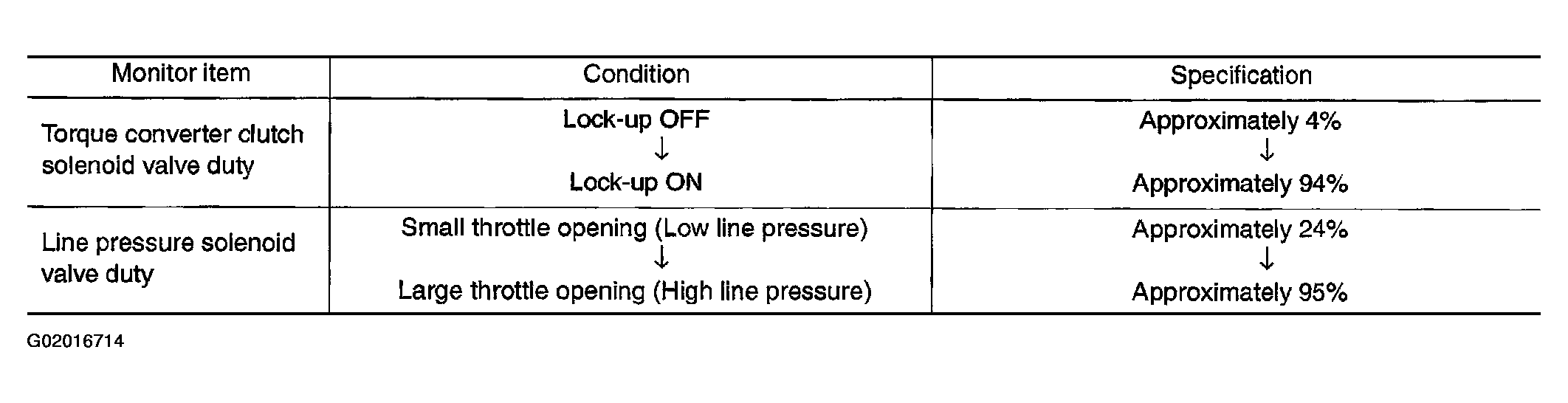

Fig 1: CONSULT-II Reference Value Chart (Data Monitor Mode)
G02016714Courtesy of NISSAN MOTOR CO., U.S.A.
