Diagnostic Procedure: Notes

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON position. (Do not start engine.)
2. Select DATA MONITOR mode for A/T with CONSULT-II.
3. The CAN COMM CIRCUIT is detected.

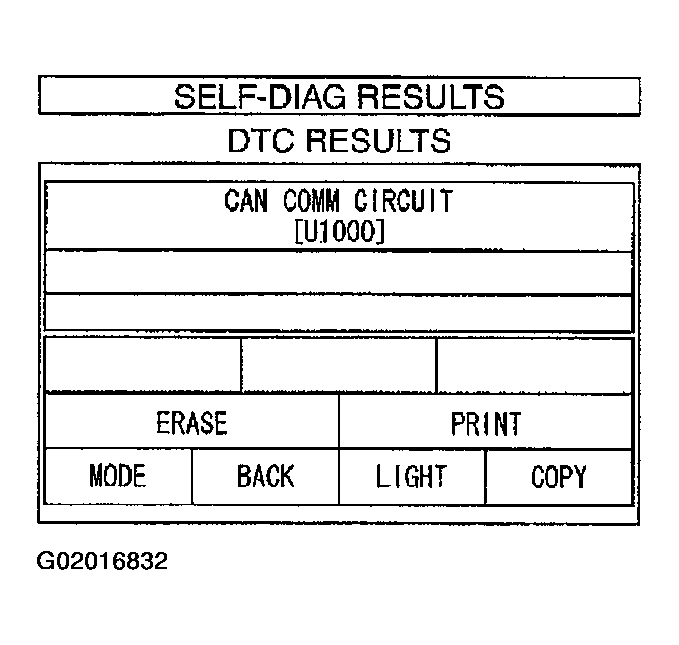

  Fig 1: Checking CAN Communication Circuit With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Yes or No
1. Yes: Print out CONSULT-II screen, go to 2
2. No: INSPECTION END.
CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to ON position. (Do not start engine.)
2. Select CAN COMM SIGNALS: in DATA MONITOR mode for A/T with CONSULT-II.
  1. Print out CONSULT-II screen, go to CAN SYSTEM .
