CONSULT-II Setting Procedure

Turn ignition switch OFF.
Connect CONSULT-II to data link connector, which is located in left side dash panel.

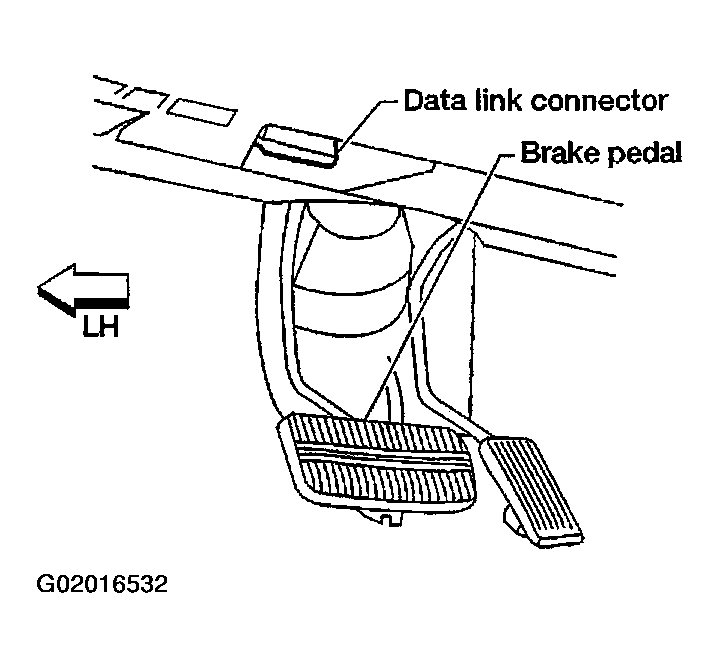

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START.

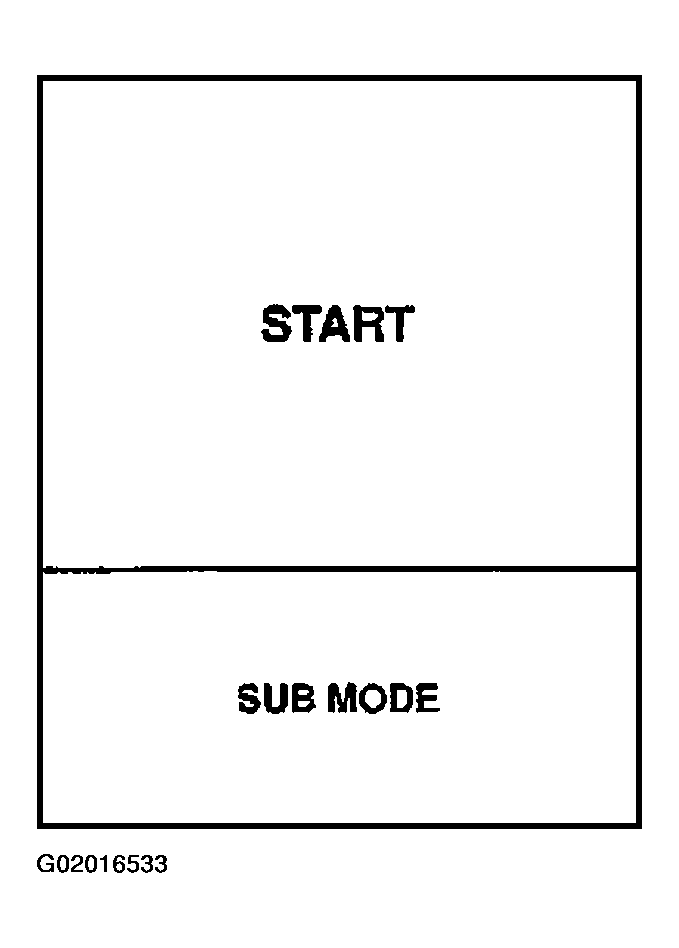

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch A/T.

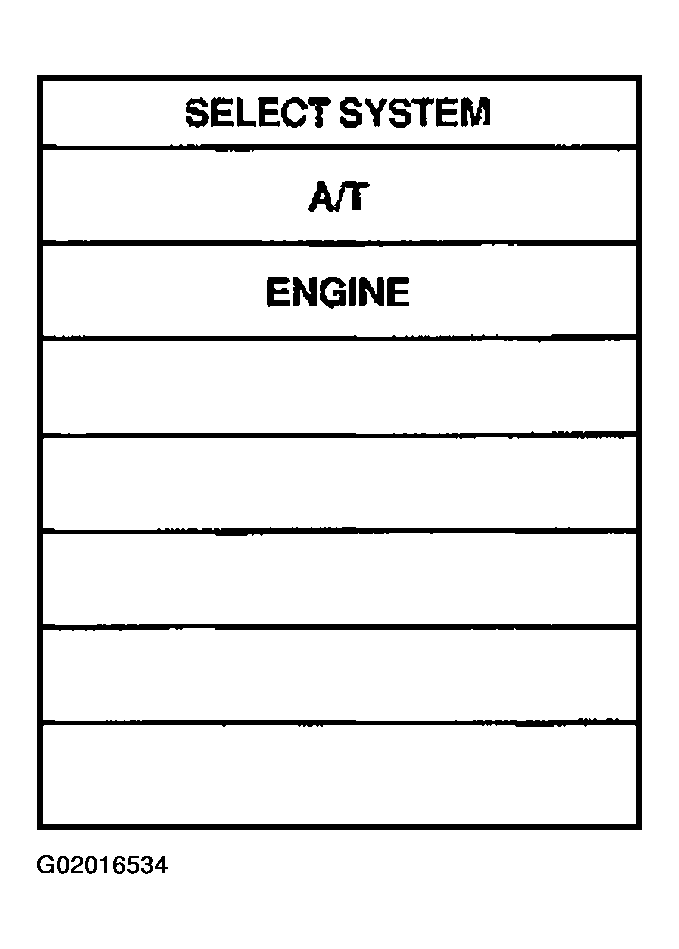

Fig 3: CONSULT-II Display - Touch "A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch DTC WORK SUPPORT.

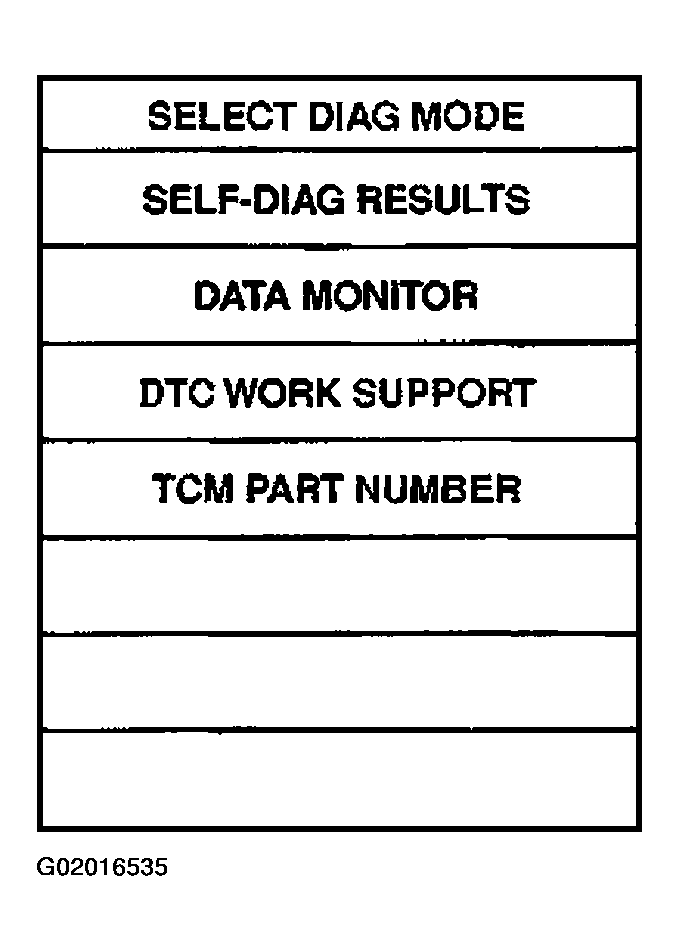

Fig 4: CONSULT-II Display - Touch "DTC WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu (1ST, 2ND, etc.).

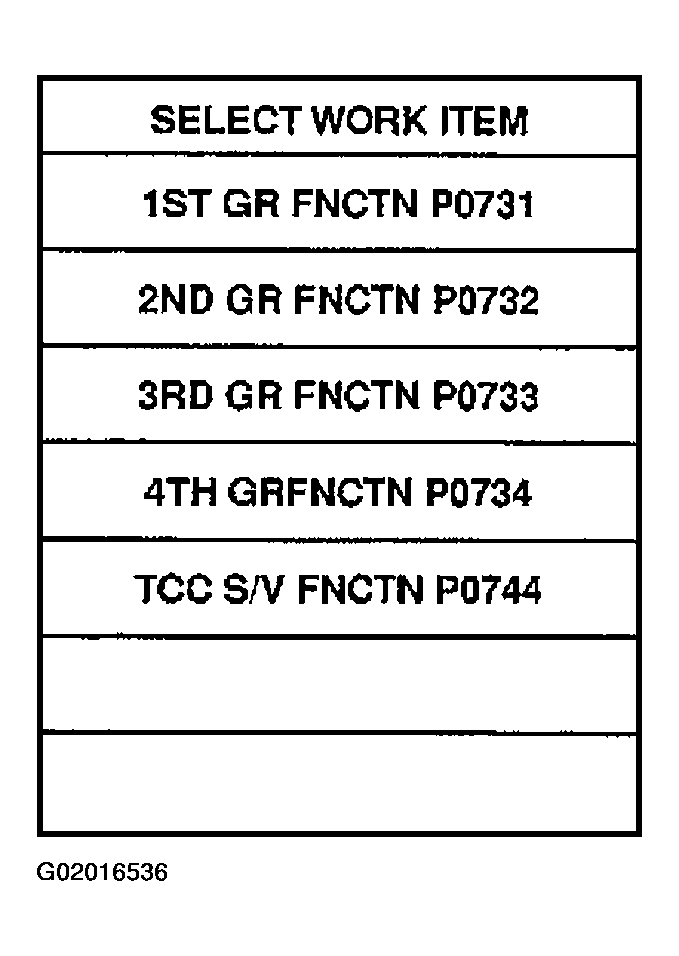

Fig 5: CONSULT-II Display - Touch "Touch Select Item Menu"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START.

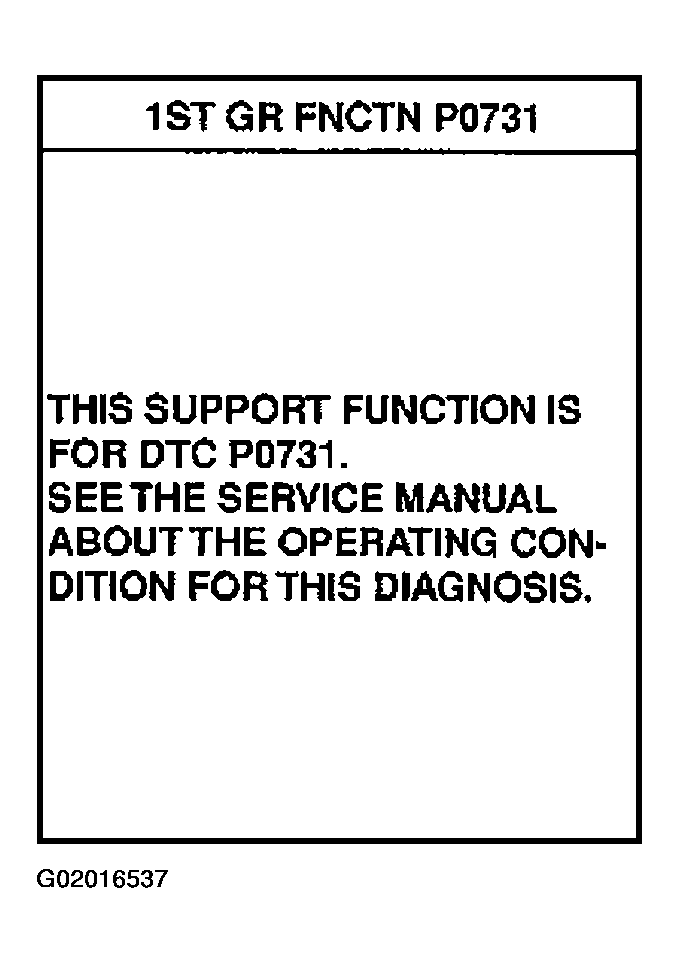

Fig 6: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to DTC CONFIRMATION PROCEDURE in TROUBLE DIAGNOSIS FOR DTC.

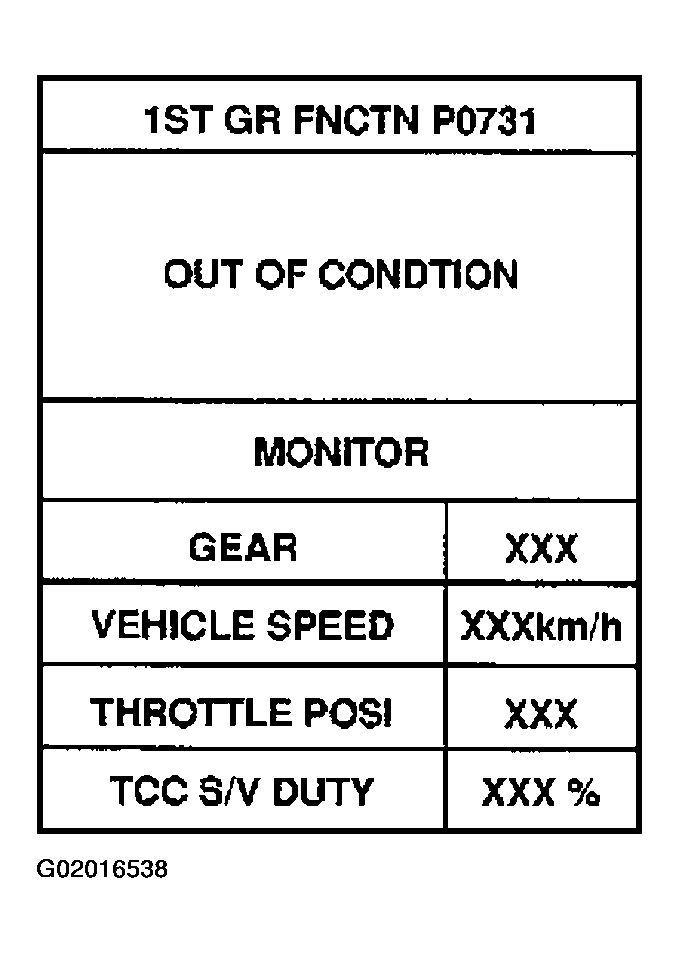

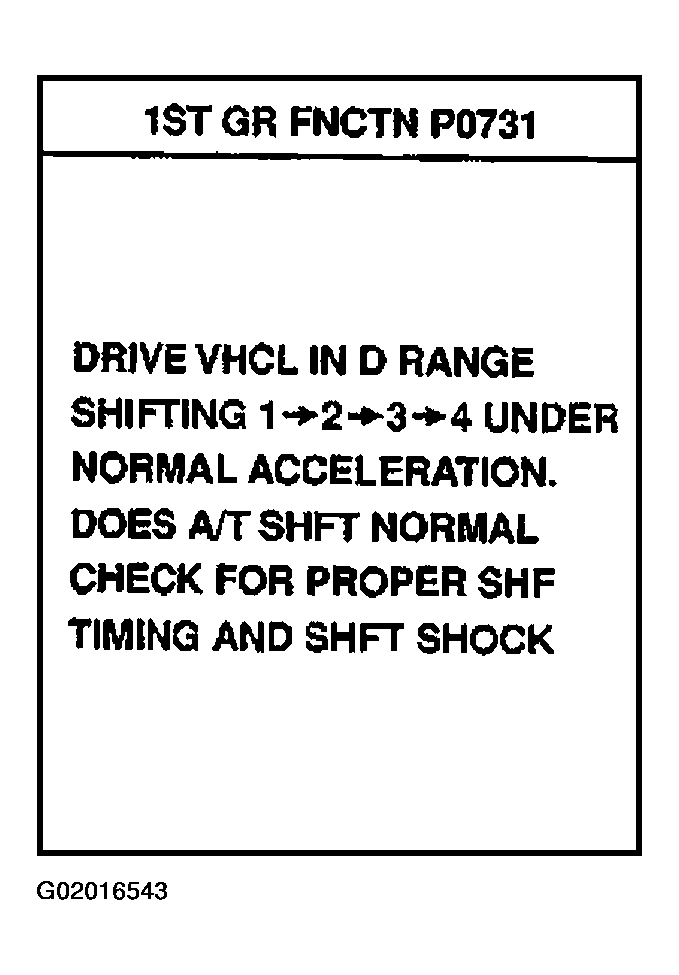

Fig 7: CONSULT-II Display - DTC Confirmation Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from OUT OF CONDITION to TESTING.

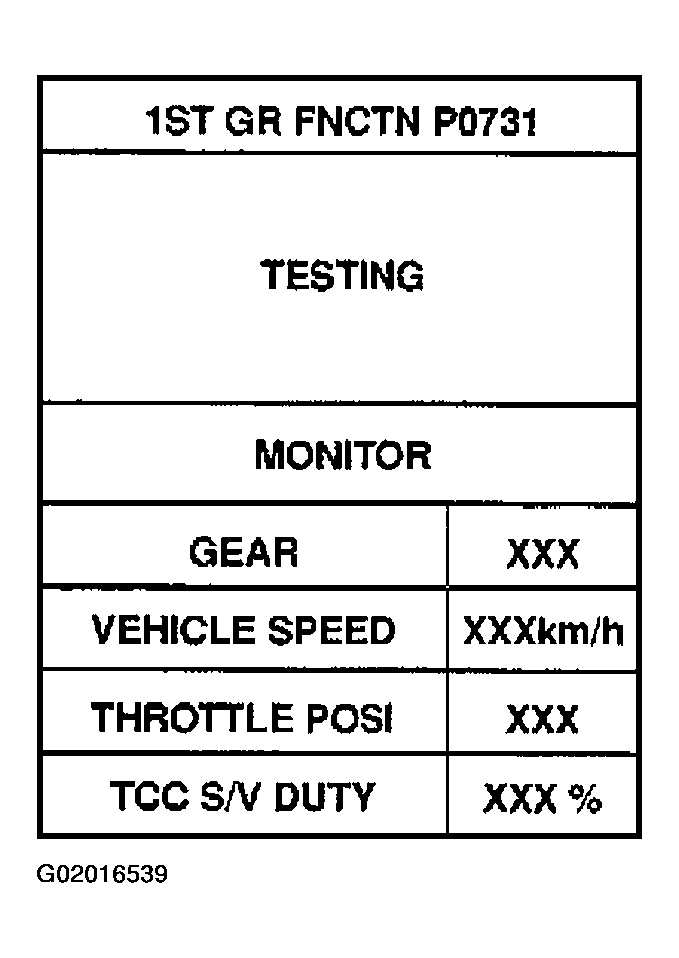

  Fig 8: CONSULT-II Display - Testing Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If NG appears on the screen, malfunction may exist. Go to DIAGNOSTIC PROCEDURE.

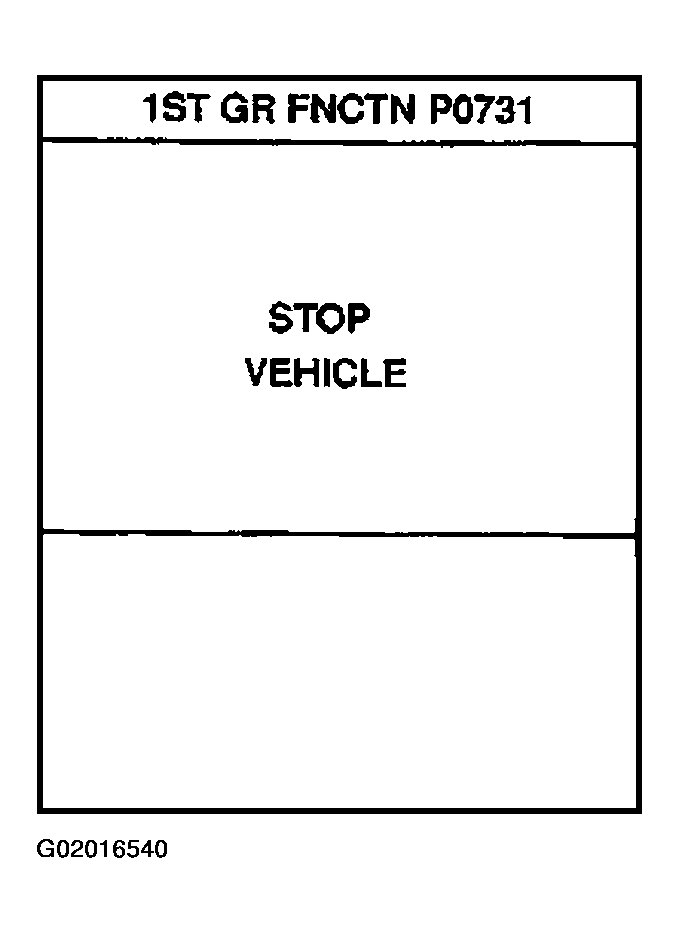

Fig 9: CONSULT-II Display - Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.

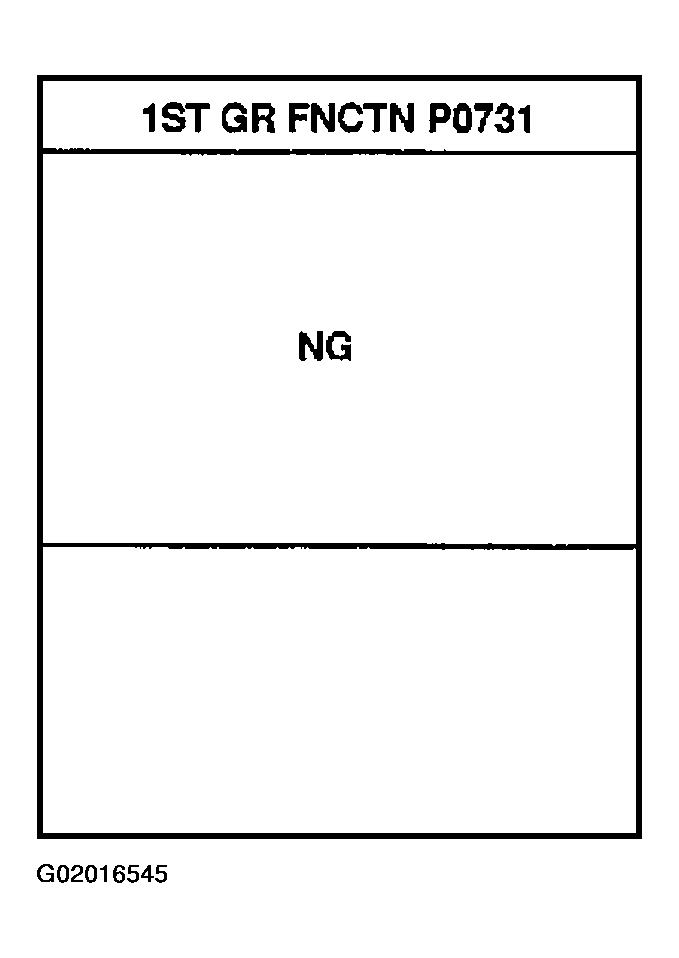

Fig 10: CONSULT-II Display - NG Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.

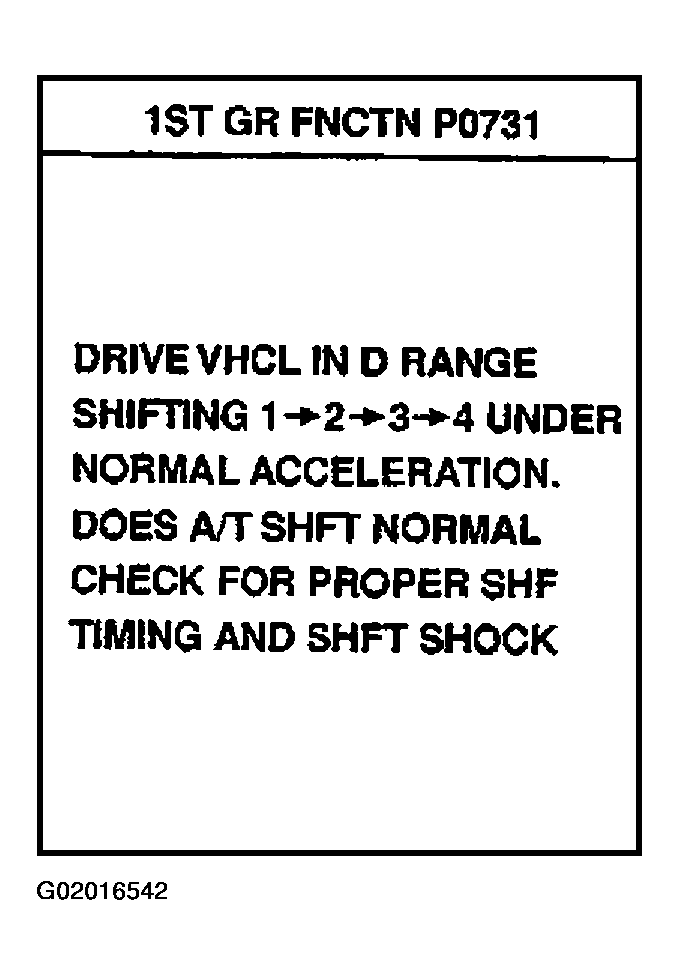

Fig 11: CONSULT-II Display - Performing Test Drive
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch YES or NO.

Fig 12: CONSULT-II Display - Touch "YES Or NO"
Courtesy of NISSAN MOTOR CO., U.S.A.
CONSULT-II procedure ended.

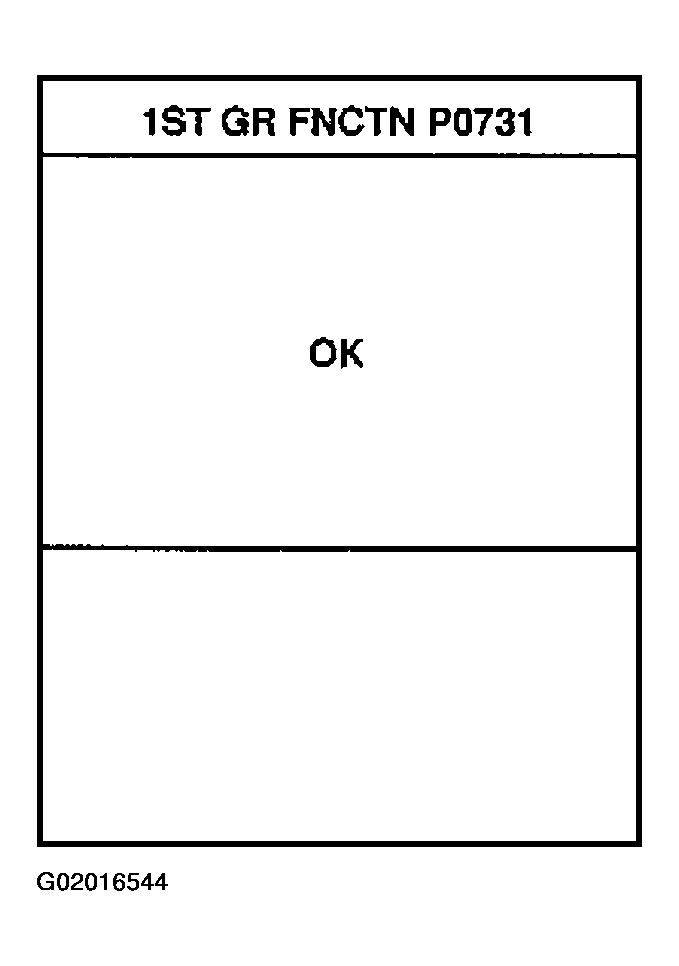

Fig 13: CONSULT-II Display - Touch "OK"
Courtesy of NISSAN MOTOR CO., U.S.A.

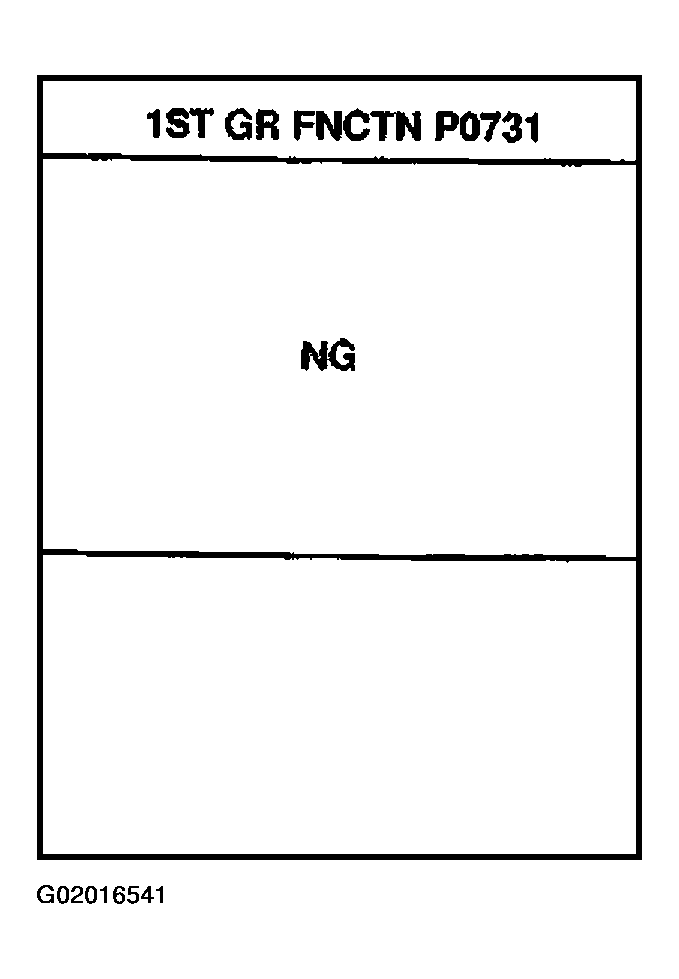

Fig 14: CONSULT-II Display - Touch "NG"
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG appears on the screen, a malfunction may exist. Go to DIAGNOSTIC PROCEDURE.
