Band Servo Piston Assembly: Assembly

  1. Install D-rings to servo piston retainer.

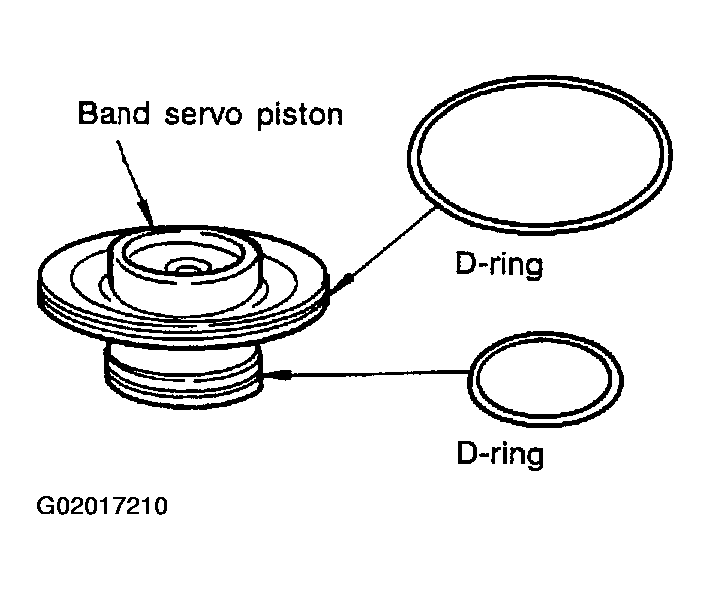

    Fig 1: Installing D-Rings To Band Servo Piston Retainer
    G02017210Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply ATF to D-rings.
    • Pay attention to position of each O-ring.

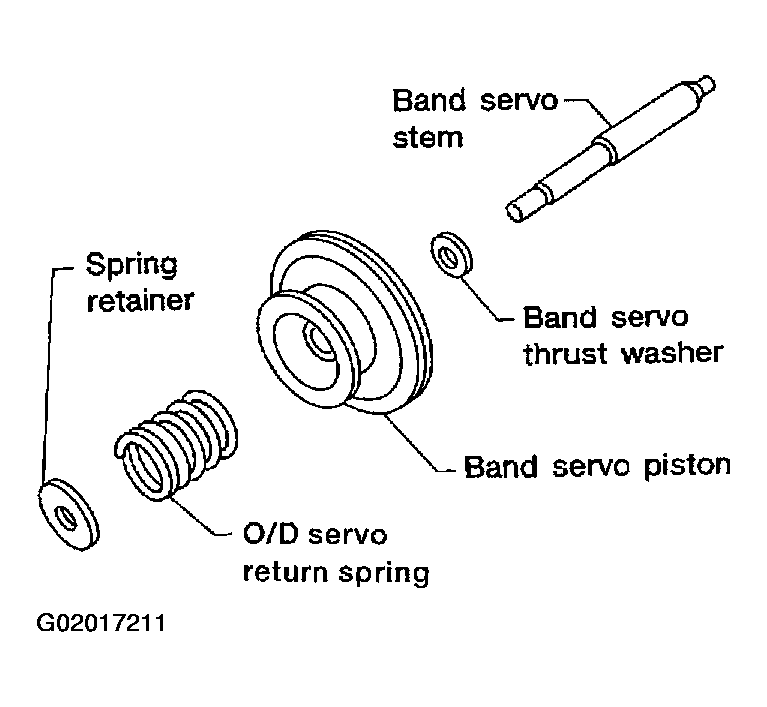

  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.
    Fig 2: Installing Band Servo Piston Stem, Thrust Washer, OD Servo Return Spring And Spring Retainer
    G02017211Courtesy of NISSAN MOTOR CO., U.S.A.

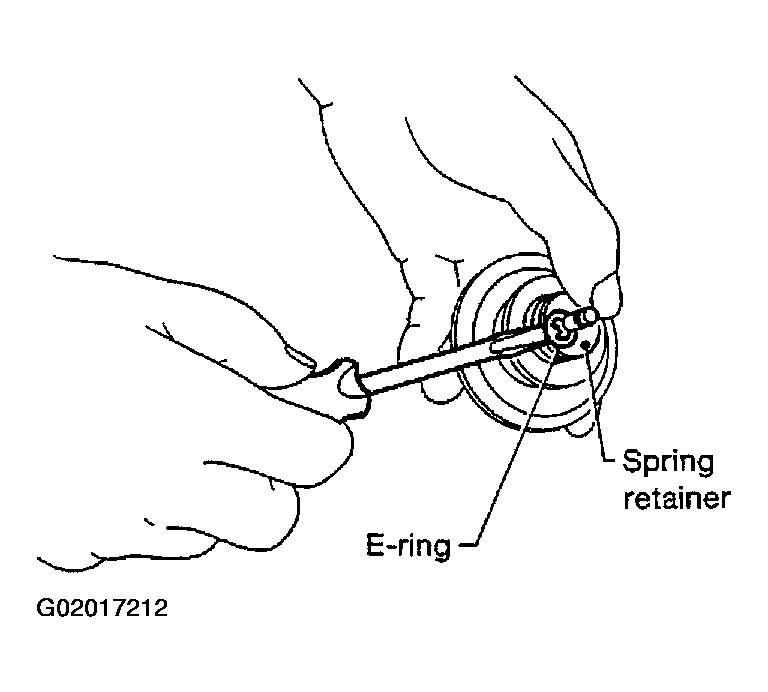

  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.
    Fig 3: Installing E-Ring
    G02017212Courtesy of NISSAN MOTOR CO., U.S.A.

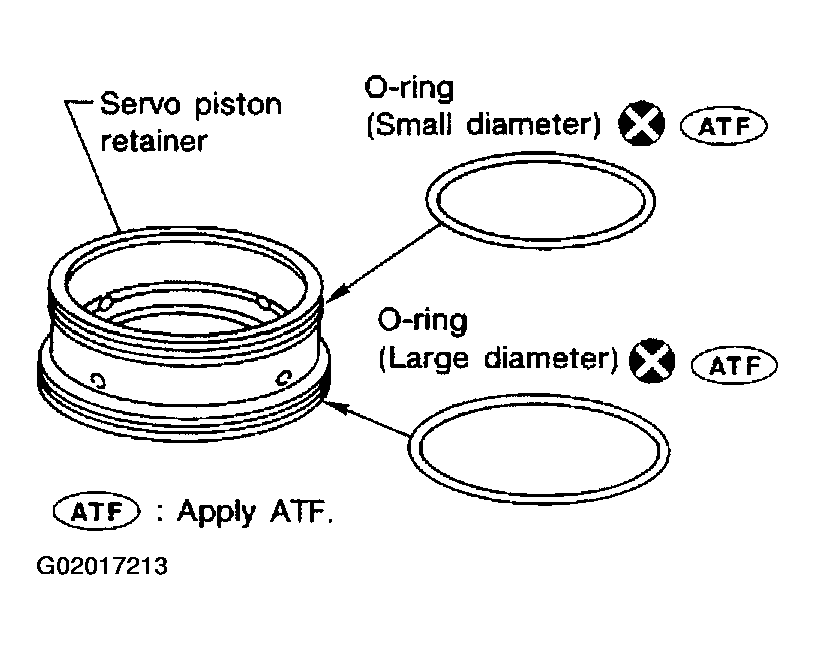

  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
    Fig 4: Installing O-Rings To Servo Piston Retainer
    G02017213Courtesy of NISSAN MOTOR CO., U.S.A.

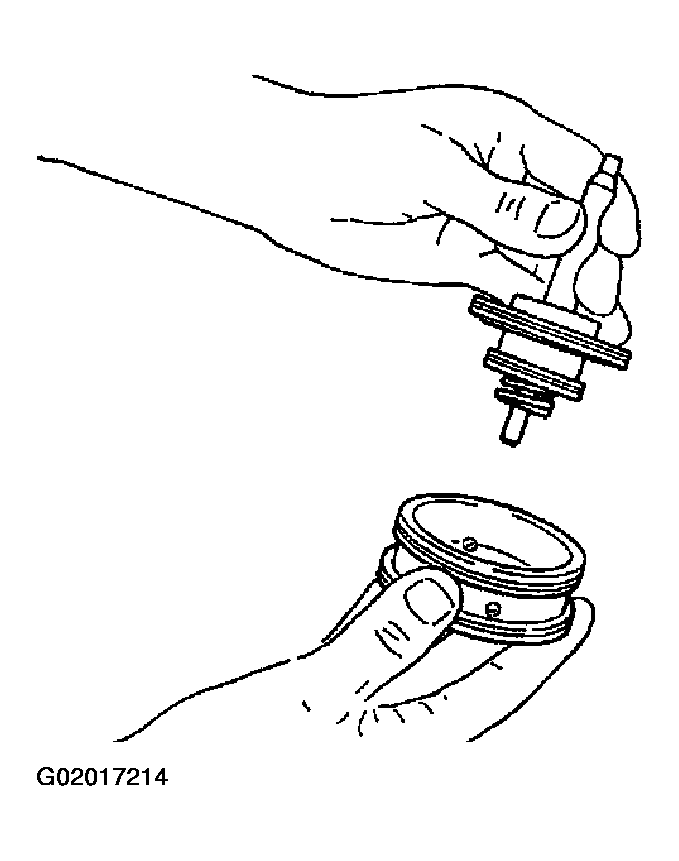

  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G02017214Courtesy of NISSAN MOTOR CO., U.S.A.

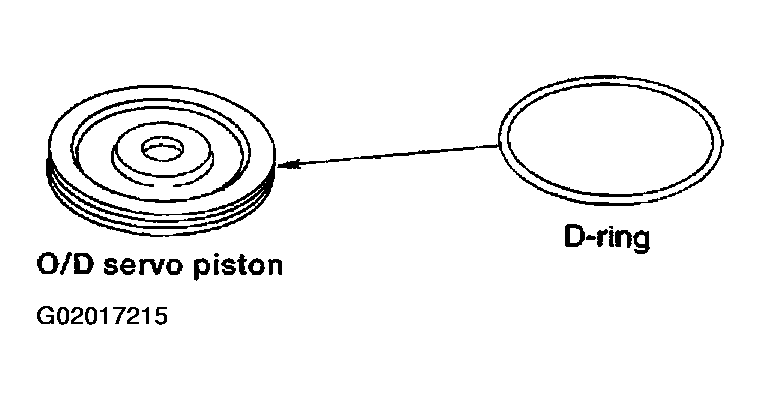

  6. Install D-ring to O/D servo piston.
    • Apply ATF to D-ring.
    Fig 6: Installing D-Ring To OD Servo Piston
    G02017215Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to O/D servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.

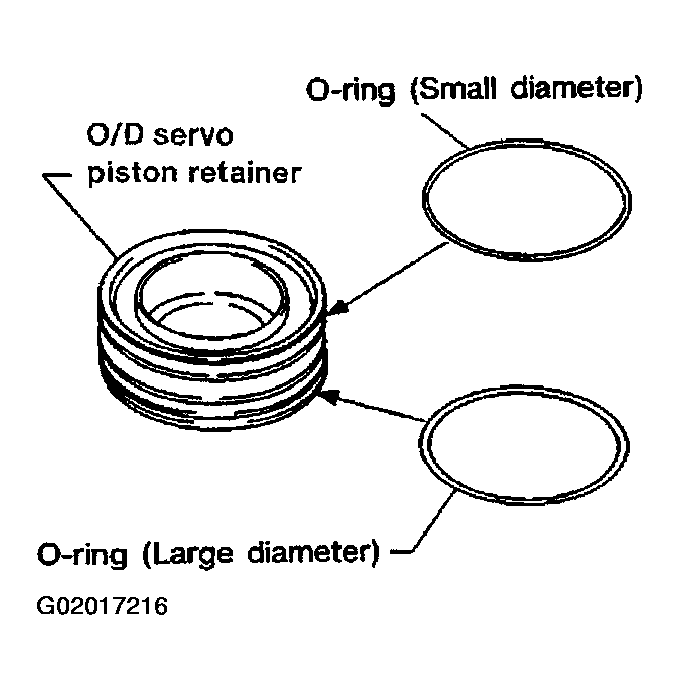

    Fig 7: Installing O-Rings To OD Servo Piston Retainer
    G02017216Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.

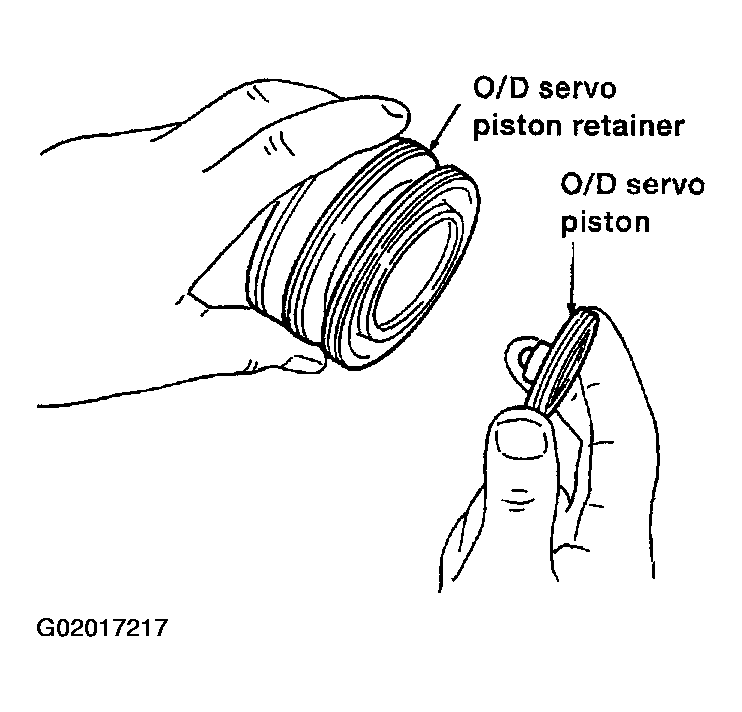

    Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
    G02017217Courtesy of NISSAN MOTOR CO., U.S.A.

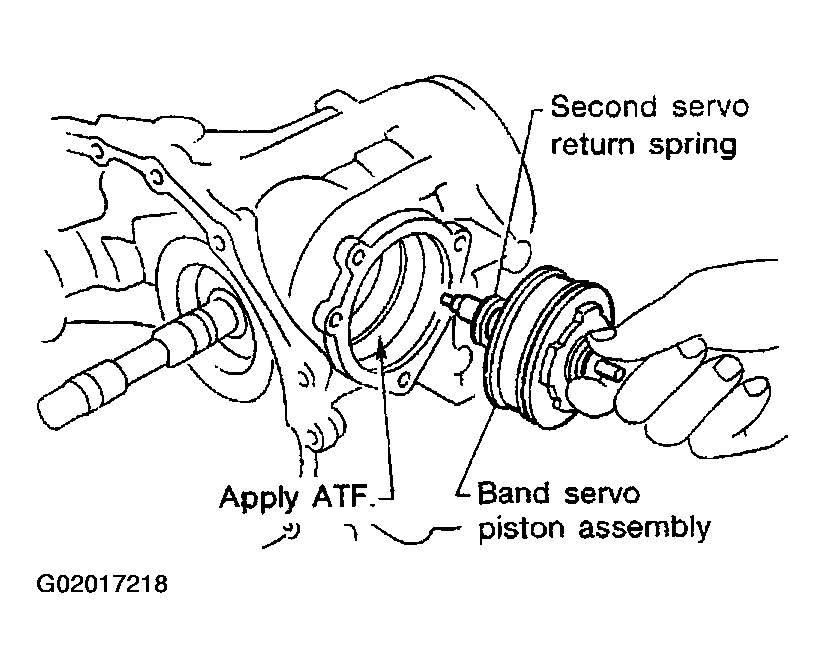

  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.
    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transmission Case
    G02017218Courtesy of NISSAN MOTOR CO., U.S.A.

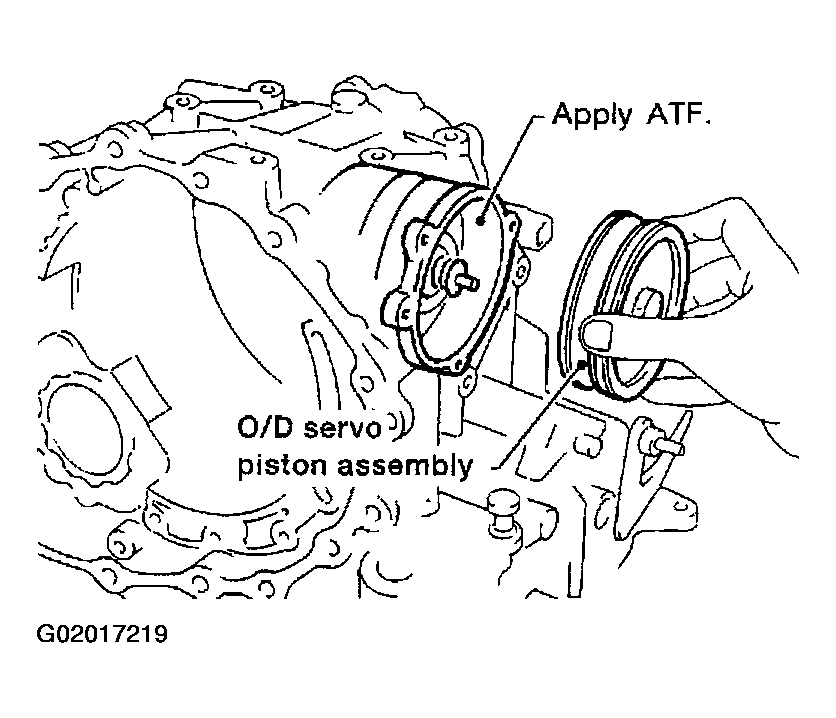

  10. Install O/D servo piston assembly to transmission case.
    • Apply ATF to O-ring of band piston and transmission case.
    Fig 10: Installing OD Servo Piston Assembly To Transmission Case
    G02017219Courtesy of NISSAN MOTOR CO., U.S.A.

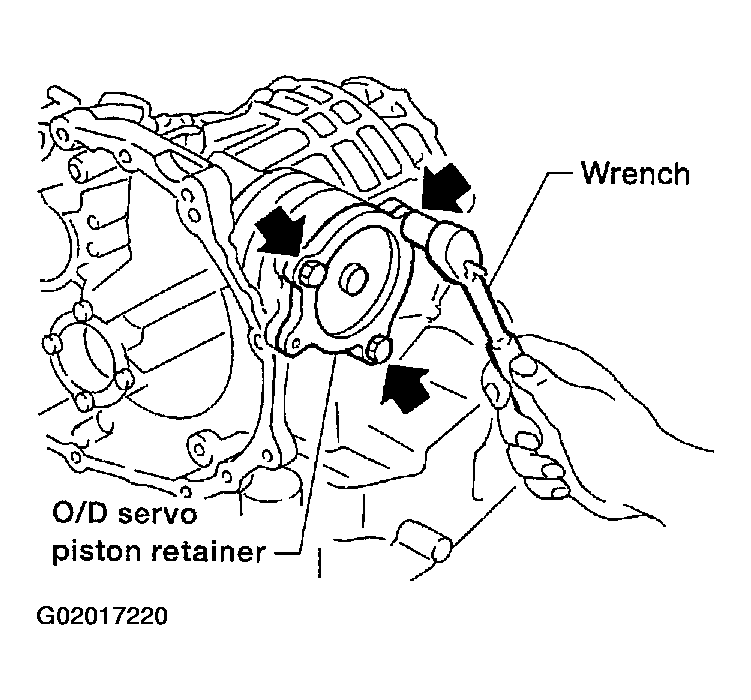

  11. Install O/D servo piston retainer to transmission case. Refer to ASSEMBLY .
    Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
    G02017220Courtesy of NISSAN MOTOR CO., U.S.A.
