Oil Cooler Relief Valve Spring

Check springs for damage or deformation.
Measure free length and outer diameter.
Inspection standard: Refer to CONTROL VALVE AND PLUG RETURN SPRINGS .

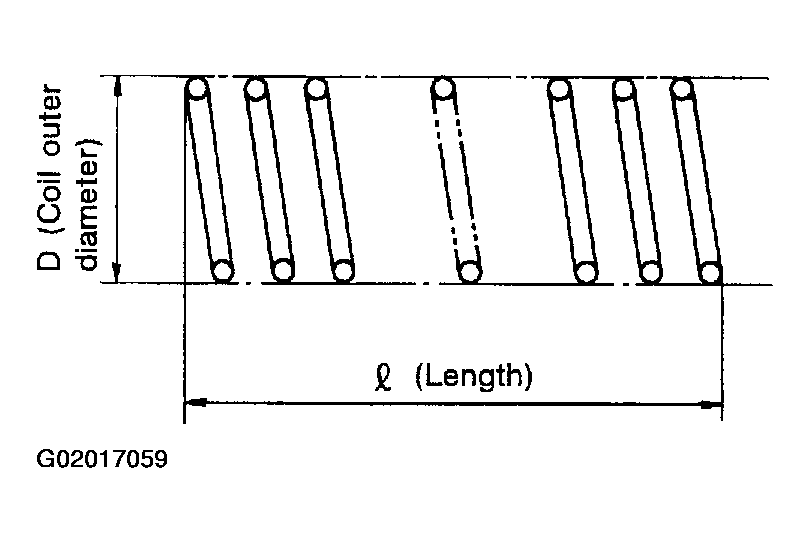

Fig 1: Identifying Oil Cooler Relief Valve Spring Length
Courtesy of NISSAN MOTOR CO., U.S.A.
