Control Valve Lower Body: Disassembly

Remove valves at retainer plate. For removal procedures, refer to DISASSEMBLY .

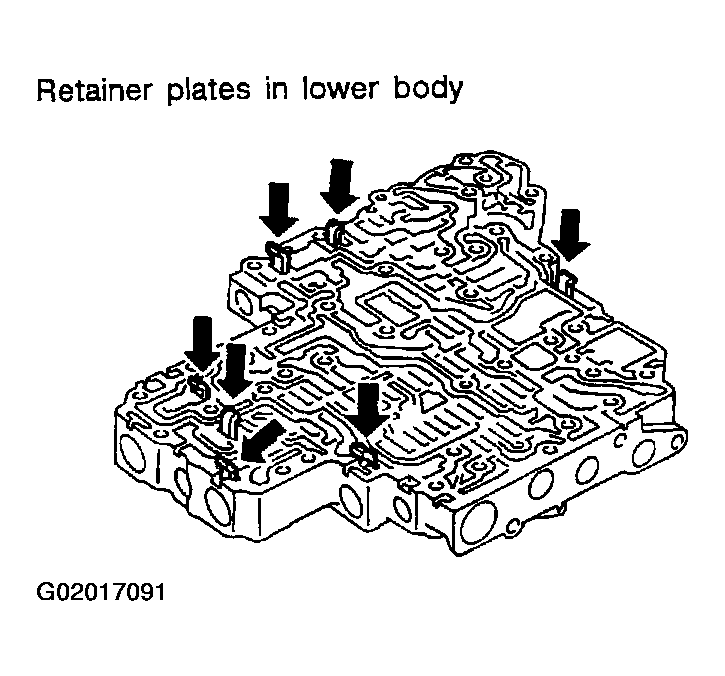

Fig 1: Locating Control Valve Lower Body Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
