Valve Springs

Check each valve spring for damage or deformation. Also measure free length and outer diameter.
Inspection standard: Refer to CONTROL VALVE AND PLUG RETURN SPRINGS .
Replace valve springs if deformed or fatigued.

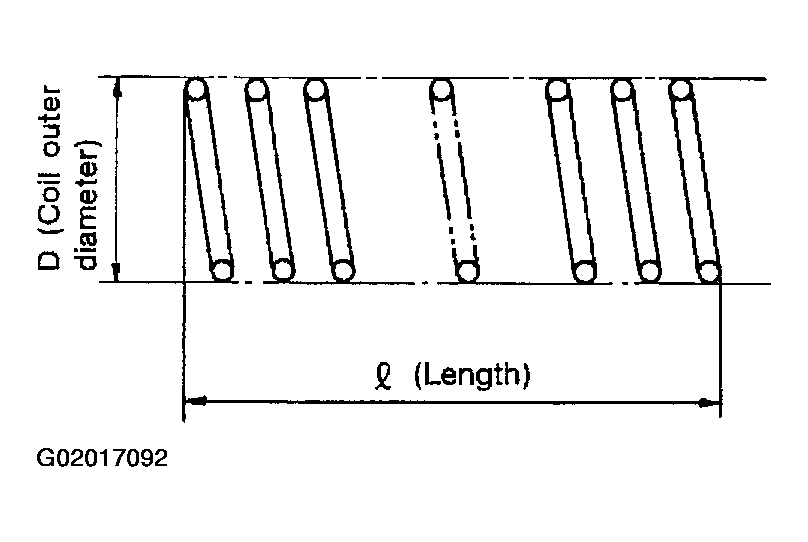

Fig 1: Identifying Valve Springs Free Length
Courtesy of NISSAN MOTOR CO., U.S.A.
